Cylindrical roller bearing 500x670x170 mm for Wheel-end planetaries machine use
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P4 P5 P6 P0 | Seals Type: | No Seal |
|---|---|---|---|
| Number Of Row: | Double Row | Cage Material: | Brass Steel Material |
| Ring Material: | GCr15SiMn | Package: | Wooden Case |
Cylindrical roller bearing 500x670x170 mm for Wheel-end planetaries machine use

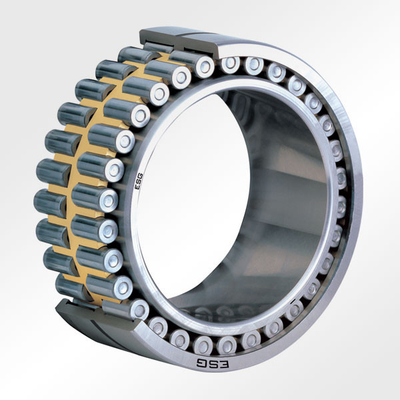

Two-row cylindrical roller bearing NNU49/500MAW33 has additional radial load-carrying capability compared to single row cylindrical roller bearing.It designed to ISO Specified interchangeable dimensions. Sold as complete assembly.
The cylindrical roller bearings NNU49/500MAW33 has outer rings with solid ribs and lubrications grooves and holes on outer rings, one solid brass cage,used in cement grind mill.
The NNU49/500MAW33 cylindrical roller bearing description as follows:
|
Name |
Double/tow row cylindrical roller bearing NNU49/500MAW33 |
|
|
Bearing type |
NNU49/500MAW33 |
|
|
Dimension |
500x670x170 mm |
|
|
ID(inner diameter)/Bore |
500 mm |
|
|
OD(outer diameter) |
670 mm |
|
|
Width/Height/thickness |
170 mm |
|
|
Load Rating |
Static |
6280 KN |
|
Dynamic |
2900 KN |
|
|
Speed Ratings |
Oil |
420 RPM |
|
Grease |
380 RPM |
|
|
Weight |
170 KGS |
|
|
Delivery time |
In stock, If ex-stock, the manufacture time about 15-20 days |
|
|
package |
Standard export wooden case |
|
|
Quality standard |
I S O 2 4 6/ GB/T 283 |
|
|
Material |
GCr15 GCr15SiMn Chrome steel |
|
|
HS Code |
8482500090 |
|
| Cage Material | Solid brass cage | |
| service | OEM Service | |
| Payment terms | L/C At sight or T/T | |
| Contact | lyjh@lyjhbearing.com sales@lyjhbearing.com | |
| MSN | lyjhbearing@hotmail.com | |
| Skype | million556 | |
JinHang Precision Bearing mainly export precision cylindrical roller bearing NNU49/500MAW33 Bearing and relative products, we have huge stocks for NNU49/500MAW33 bearing and relative items, Also if ex-stock, the best deliver time about 15-20 days. we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in NNU49/500MAW33 Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly. Thanks for your trust!
Radial cylindrical ROLLER BEARING Types and cages
Radial cylindrical roller bearings can offer higher radial load capacity than other bearing designs.
The Company offers a wide range of full complement, one -, two -, and four-row designs
to meet various application requirements.
Radial cylindrical roller bearings can offer higher radial load capacity than other bearing designs.
The Company offers a wide range of full complement, one -, two -, and four-row designs
to meet various application requirements.
cylindrical roller bearings effectively reduce friction and
help transmit power in applications like:
• Power generation
• Oil fields
• Crop shears
• Gear drives
• Hoists
• Metals construction
• Mining
• Aggregate processing
• Pumps
• Rolling mills
• Wheel-end planetaries
• Wind energy
• Other industrial equipment
help transmit power in applications like:
• Power generation
• Oil fields
• Crop shears
• Gear drives
• Hoists
• Metals construction
• Mining
• Aggregate processing
• Pumps
• Rolling mills
• Wheel-end planetaries
• Wind energy
• Other industrial equipment
