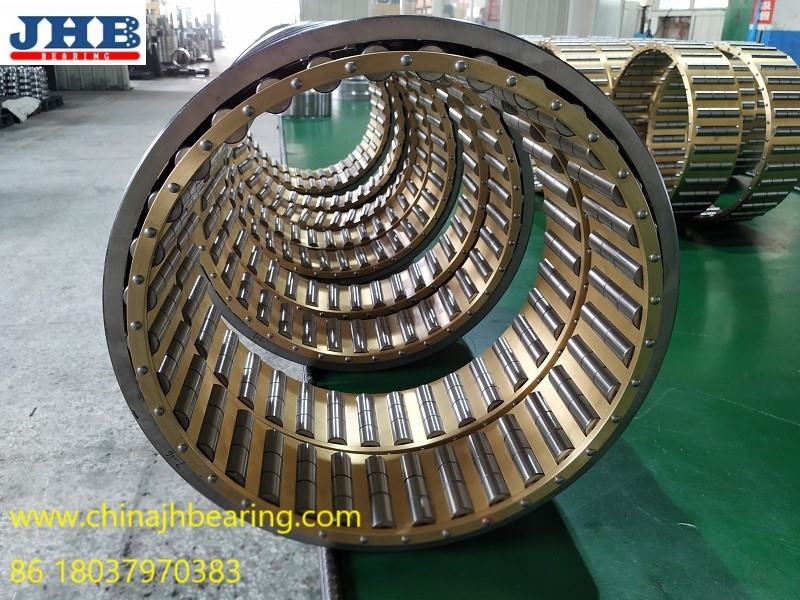

Cylindrical roller bearingNNU4992MAW33 supplier 460x620x160 mm brass cage

• Structure: The cylindrical roller bearings NNU4992MAW33 has outer rings with solid ribs and lubrications grooves and holes on outer rings, one solid brass cage



• Brand Name: JHB or OEM Required

Dimension:460x620x160 mm

• Bore Size: 460 mm metric size

• Outside Diameter:620 mm metric size

• Height:160 mm metric size

   Weight:135 kgs

• Cage:Sold brass cage

• Lubrication:grease or oil

• Bearing mark: Brand+ NNU4992MAW33 Or your requirement

• Place of Origin: LuoYang, China (Mainland)

• Delivery Time: 20-30 days

• Sample:available

• Material: GCr15, GCr15SiMn

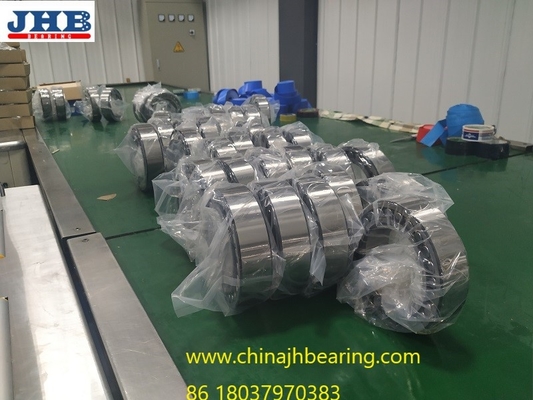

• The package: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case

• Payment: T/T or L/C

NNU4992MAW33  bearing Specifications

1. High precision: P5,P6,P0

2. Low noise

3. Long serive life

4. short delivery time

5. OEM service provided

6. Processing with supplied drawings



Name	Double/tow row cylindrical roller bearing NNU4992MAW33
Bearing type	NNU4992MAW33
Dimension	460x620x160 mm
ID(inner diameter)/Bore	460 mm
OD(outer diameter)	620 mm
Width/Height/thickness	160 mm



Cylindrical roller bearings consist of an inner and outer ring, a roller-retaining cage, and a complement of controlledcontour cylindrical rollers. Depending on the type of bearing, either the inner or the outer ring has two roller-guiding ribs. The other ring is separable from the assembly and has one rib or none. The ring with two ribs axially locates the position of the roller assembly. The ground diameters of these ribs may be used to support the roller cage. One of the ribs may be used to carry light thrust loads when an opposing rib is provided.The decision as to which ring should be double ribbed is normally
determined by considering assembly and mounting procedures in the application.

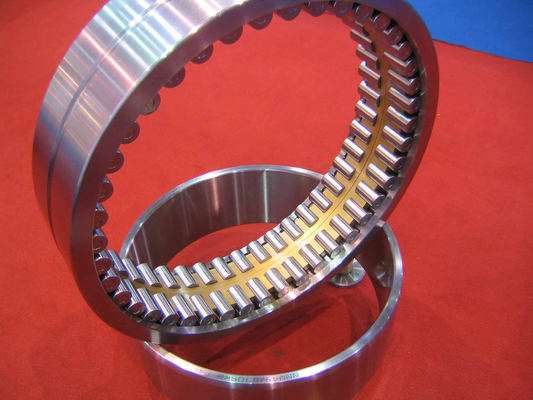

Double-row cylindrical roller bearings
Double-row cylindrical roller bearings are available in two types, NN and NNU, and two series, 30 and 49.The rollers in the NN type bearing are guided by the ribs of the inner ring. The rollers in the NNU typebearing are guided by the ribs of the outer ring.
Bearings are available with either a tapered bore type (which allows adjustment of radial internal clearance of bearing) or a standard cylindrical bore. The bearings come in two types, standard type and high-speed HS type. Standard cage is machined brass.



cylindrical roller bearings effectively reduce friction and help transmit power in applications like:
• Power generation
• Oil fields
• Crop shears
• Gear drives
• Hoists
• Metals construction
• Mining
• Aggregate processing
• Pumps
• Rolling mills
• Wheel-end planetaries
• Wind energy
• Other industrial equipment
