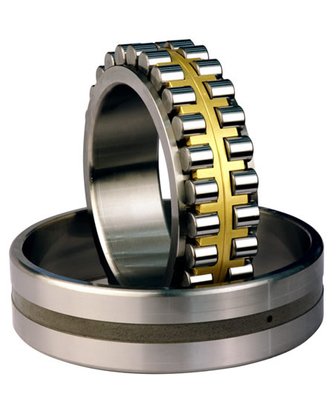

NNU4068MAW33 cylindrical roller bearing 340x520x180 mm chrome steel material
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P4 P5 P6 P0 | Seals Type: | No Seal |
|---|---|---|---|
| Number Of Row: | Double Row | Brand: | OEM |
| Clearance: | C1 C2 C0 | Rolling: | Roller |
NNU4068MAW33 cylindrical roller bearing 340x520x180 mm chrome steel material
Two-row cylindrical roller bearing NNU4068MAW33 has additional radial load-carrying capability compared to single row cylindrical roller bearing.It designed to ISO Specified interchangeable dimensions. Sold as complete assembly.
The cylindrical roller bearings NNU4068MAW33 has outer rings with solid ribs and lubrications grooves and holes on outer rings, one solid brass cage
The NNU4068MAW33 cylindrical roller bearing description as follows:
|
Name |
Double/tow row cylindrical roller bearing NNU4068MAW33 |
|
|
Bearing type |
NNU4068MAW33 |
|
|
Dimension |
340x520x180 mm |
|
|
ID(inner diameter)/Bore |
340 mm |
|
|
OD(outer diameter) |
520 mm |
|
|
Width/Height/thickness |
180 mm |
|
|
Load Rating |
Static |
5130 KN |
|
Dynamic |
2980 KN |
|
|
Speed Ratings |
Oil |
610 RPM |
|
Grease |
560 RPM |
|
|
Weight |
140 KGS |
|
|
Delivery time |
In stock, If ex-stock, the manufacture time about 15-20 days |
|
|
package |
Standard export wooden case |
|
|
Quality standard |
I S O 2 4 6/ GB/T 283 |
|
|
Material |
GCr15 GCr15SiMn Chrome steel |
|
|
HS Code |
8482500090 |
|
JinHang Precision Bearing mainly export precision cylindrical roller bearing Timken NNU4068MAW33 Bearing and relative products, we have huge stocks for NNU4068MAW33 bearing and relative items, Also if ex-stock, the best deliver time about 15-20 days. we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in NNU4068MAW33 Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly. Thanks for your trust!
Manufacturing ability:
Equipped with advanced manufacturing CNC Machine and test instruments to insure the accurate tolerance , all bearings are of uniform marking and packing with superior quality, reasonable prices and perfect services. Meanwhile we can make the module to test the mounting hole.
Quality control:
All the bearing from the forging to assembly process,It will need to inspect step.For the bearing forging we will need to test the size and hardness and surface, for the lathe process and grinding process,first it will need to check by the worker ,and then the professional inspector will checking the size and accurate,The last step the monitor will inspect the size. It can insure zero defect.
Service:
It can calculate the load curve.
Can offer assembly drawing based on the bearing working condition
Can offer pre- sale ,sale and after sale service
Equipped with advanced manufacturing CNC Machine and test instruments to insure the accurate tolerance , all bearings are of uniform marking and packing with superior quality, reasonable prices and perfect services. Meanwhile we can make the module to test the mounting hole.
Quality control:
All the bearing from the forging to assembly process,It will need to inspect step.For the bearing forging we will need to test the size and hardness and surface, for the lathe process and grinding process,first it will need to check by the worker ,and then the professional inspector will checking the size and accurate,The last step the monitor will inspect the size. It can insure zero defect.
Service:
It can calculate the load curve.
Can offer assembly drawing based on the bearing working condition
Can offer pre- sale ,sale and after sale service
cylindrical roller bearings effectively reduce friction and
help transmit power in applications like:
• Power generation
• Oil fields
• Crop shears
• Gear drives
• Hoists
• Metals construction
• Mining
• Aggregate processing
• Pumps
• Rolling mills
• Wheel-end planetaries
• Wind energy
• Other industrial equipment
help transmit power in applications like:
• Power generation
• Oil fields
• Crop shears
• Gear drives
• Hoists
• Metals construction
• Mining
• Aggregate processing
• Pumps
• Rolling mills
• Wheel-end planetaries
• Wind energy
• Other industrial equipment
