Home ProductsCylindrical roller bearing

NNU4152MAW33 double row cylindrical roller bearing 260x440x180 mm,solid brass cage

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

NNU4152MAW33 double row cylindrical roller bearing 260x440x180 mm,solid brass cage

China NNU4152MAW33 double row cylindrical roller bearing 260x440x180 mm,solid brass cage supplier
NNU4152MAW33 double row cylindrical roller bearing 260x440x180 mm,solid brass cage supplier NNU4152MAW33 double row cylindrical roller bearing 260x440x180 mm,solid brass cage supplier NNU4152MAW33 double row cylindrical roller bearing 260x440x180 mm,solid brass cage supplier NNU4152MAW33 double row cylindrical roller bearing 260x440x180 mm,solid brass cage supplier

Large Image :  NNU4152MAW33 double row cylindrical roller bearing 260x440x180 mm,solid brass cage

Product Details:

Place of Origin: China
Brand Name: JHB or OEM
Certification: Quality certificate
Model Number: NNU4152MAW33

Payment & Shipping Terms:

Minimum Order Quantity: 2PCS
Price: 1-10000USD/negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: in stock, if Ex-stock, It will need 5- 10 days
Payment Terms: T/T,L/C
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Precision Rating: P4 P5 P6 P0 Seals Type: No Seal
Number Of Row: Double Row Sample: Offer Sample Available
Hardness: 58-62 HRC Service: Assembly Drawing

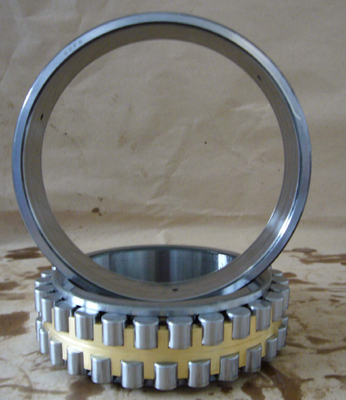

NNU4152MAW33 double row cylindrical roller bearing 260x440x180 mm,solid brass cage





Two-row cylindrical roller bearing  NNU4152MAW33 has additional radial load-carrying capability compared to single row cylindrical roller bearing.It designed to ISO Specified interchangeable dimensions. Sold as complete assembly.
The cylindrical roller bearings NNU4152MAW33 has outer rings with solid ribs and lubrications grooves and holes on outer rings, one solid brass cage
The NNU4152MAW33 cylindrical roller bearing description as follows:NNU4152MAW33 double row cylindrical roller bearing 260x440x180 mm,solid brass cage

Name

Double/tow row cylindrical roller bearing NNU4152MAW33

Bearing type

NNU4152MAW33

Dimension

260x440x180 mm

ID(inner diameter)/Bore

260 mm

OD(outer diameter)

440 mm

Width/Height/thickness

180 mm

Load Rating

Static

4540 KN

Dynamic

2840 KN

Speed Ratings

Oil

760 RPM

Grease

710 RPM

Weight

112 KGS

Delivery time

In stock, If ex-stock, the manufacture time about 15-20 days

package

Standard export wooden case

Quality standard

I S O 2 4 6/ GB/T 283

Material

GCr15 GCr15SiMn

HS Code

8482500090



JinHang Precision Bearing mainly  export precision cylindrical roller bearing  Timken NNU4152MAW33 Bearing and relative products, we have huge stocks for NNU4152MAW33 bearing  and relative items, Also if ex-stock, the best deliver time about 15-20 days. we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in   NNU4152MAW33 Bearing, please email us :lyjh@lyjhbearing.com    so we will contact you directly. Thanks for your trust!

NNU4152MAW33 double row cylindrical roller bearing 260x440x180 mm,solid brass cage

NNU4152MAW33 double row cylindrical roller bearing 260x440x180 mm,solid brass cage



Full-Complement (NCF)
The full-complement (NCF) single-row bearings include integral flanges on the inner and outer rings. These bearings also can manage axial loads in one direction and permit small axial
displacements.
TWO-ROW BEARINGS
Two-row, or double-row, cylindrical bearings offer added radial capacity over tradition one-row types. These bearing types are interchangeable so the dimensions and diameter under the rollers (NNU style) and diameter over the rollers (NN style) are held to an ISO/DIN standard. The standard cage design is a drilled pocket, finger-style retainer

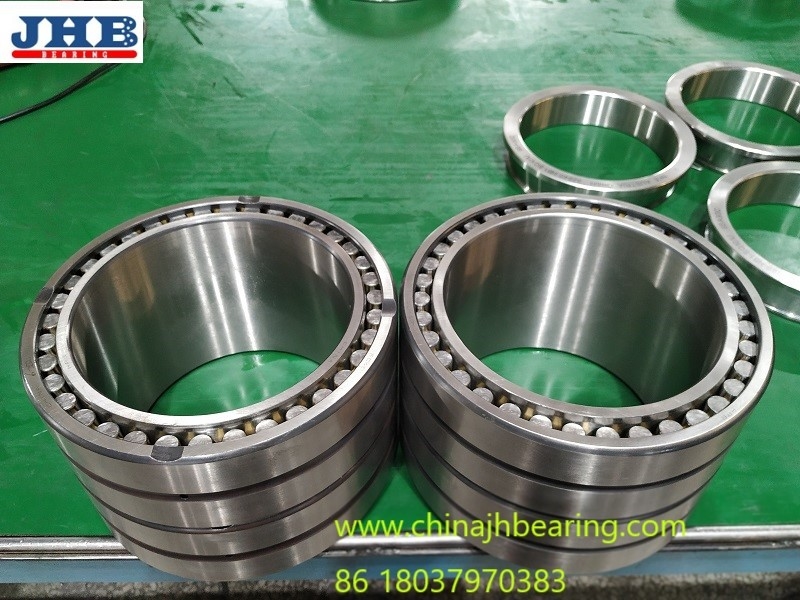

FOUR-ROW BEARINGS
Four-row cylindrical bearings have an extremely high radial load capacity, but no thrust capacity. This bearing type is mostly used in roll neck and work roll applications in the metal rolling industry. Straight and tapered bore designs are available.

In a cylindrical roller bearing, the rollers and racewaysare in linear contact. Consequently this type of bearing can support a larger radial load than a point-contact ball bearing. Also, its structure is suitable for high-speed operation.
A cylindrical roller bearing used for the main spindle of a machine tool can have either a double- or singlerow configuration, and certain variants have a tapered bore so the radial internal clearance can be adjusted.



Manufacturing ability:
Equipped with advanced manufacturing CNC Machine and test instruments to insure the accurate tolerance , all bearings are of uniform marking and packing with superior quality, reasonable prices and perfect services. Meanwhile we can make the module to test the mounting hole.

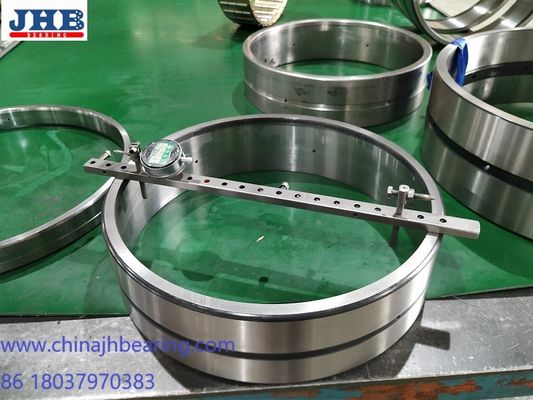

Quality control:
All the bearing from the forging to assembly process,It will need to inspect step.For the bearing forging we will need to test the size and hardness and surface, for the lathe process and grinding process,first it will need to check by the worker ,and then the professional inspector will checking the size and accurate,The last step the monitor will inspect the size. It can insure zero defect.
Service:
It can calculate the load curve.
Can offer assembly drawing based on the bearing working condition
Can offer pre- sale ,sale and after sale service
