|Work Speed:||2m/s||Application:||Radial Stacker Equipment|

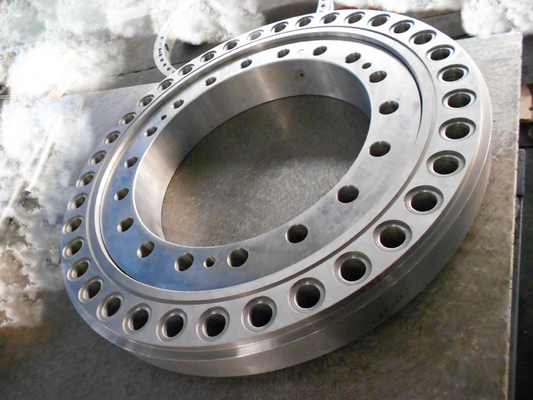

635x425.45x139.7 mm four contact ball slewing bearing,used for radial stacker front track equipment.
635x425.45x139.7 Swivel bearing/four point contact ball slewing bearing belong to four point contact ball slewing bearing,It can support axial ,radial forces and tilting moments.
|Name||635x425.45x139.7 Swivel bearing|
|Outer dia:||Metric:635 mm, or Inch size:25 inch size|
|Inner dia:||Metric size: 425.45 mm or Inch size:16.75 inch size|
|Height:||Metric size:139.7 mm or Inch size:5.5 inch size|
|Lubrication||Oil hole for grease|
635x425.45x139.7 slewing bearing pplication:

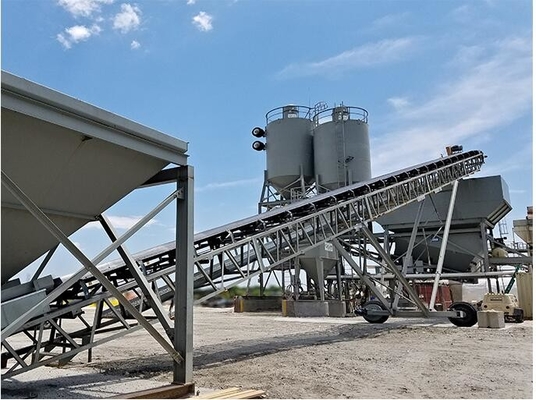

Power Plants, Cement and Mining industry. Making use of top-grade components,Belt Conveyors,Radial Stackers, Transfer Conveyor equipment.
635x425.45x139.7 mm swivel bearing / slewing bearing selecting type:
When swivel bearing belongs to single row four point contact slewing bearing that have simple and sturdy design that makes them cost-effective and can reduce the customer maintain expense.
When selecting the swivel bearing type, It will need considered the factors :
2.Magnitude and direction of loads
3.Permissible operating temperature
635x425.45x139.7 mm swivel bearing / slewing bearing working speed:
four-point contact ball slewing bearings generate less friction than crossed cylindrical
roller slewing bearings. Consequently, four-point contact ball slewing bearings also have
a higher speed capability. These bearings can accommodate tangential operating speeds up
to 4 m/s. Crossed cylindrical roller bearings are limited to approximately 1,5 m/s for con-
tinuous slewing motion and up to 2 m/s for brief periods.
635x425.45x139.7 mm swivel bearing/ slewing bearing Advantages:
1. Best quality and price
2. Small order accepted
3. ISO certified company
4. Assembly drawing available
5. Extensive stock available
6. OEM accepted
