Payment & Shipping Terms:
|Precision Rating:||P5||Seals Type:||NO SEAL|
|Number Of Row:||Single Row||Material:||GCr15SiMn|
|Rolling:||Roller||Package:||Wooden Case Or Wooden Pallet|
|Shipping:||By Sea Or By Air||Clearance:||C0 C1 C2|
|Delivery Time:||25 Days||Heat Treatment:||58-62HRC|

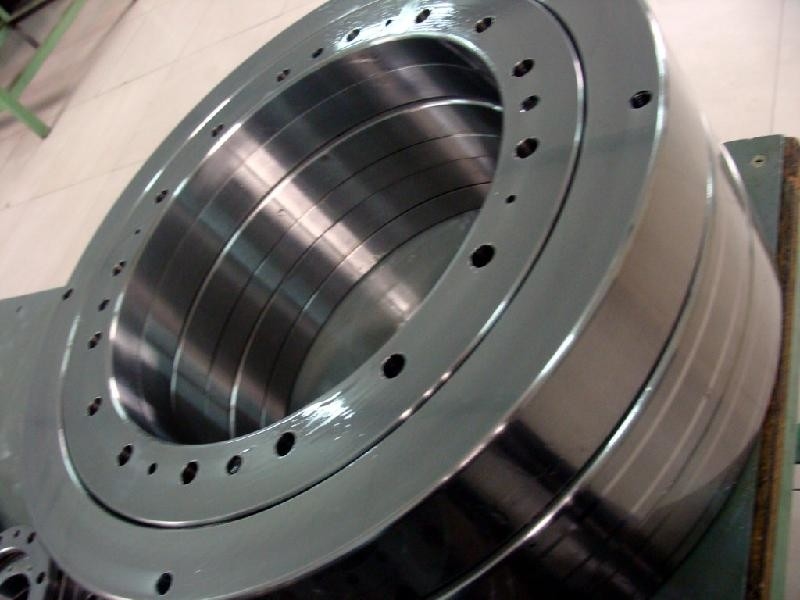

XR882055 crossed tapered roller bearing specification
JinHang Precision bearing offer the XR882055 bearing that contains two sets of the races and rollers brought together at high angles with alternate rollers facing in opposite direction. The height of cross section is similar to single-row bearing for conserving space and saving bearing housing material.And the steepangle,tapered geometry result in a total effective bearing spread much greater than the width of the bearing itself.
XR882055 Bearing dimension as follows:
|Bearing type||Boundary dimension(mm)|
|Inner dia||Outer dia||width||chamfer||Cr||Ca||Oil(r/m)||kgs||XR82055 Bearing equal to SKF Bearing code:615895A,NACHI Bearing code:0901XRN112|
With the advanced numerically-controlled machine tool and Perfect quality inspection system, Our bearing XR882055 had replaced the imported bearing to meet the customer need. It can help the XR882055 Bearing customer to reduce the cost and save the maintenance cost to get the big profit.
XR882055 Quality standard: higher than GB/T307
XR882055 Bearing inner ring and out ring hardness: HRC58-62
XR882055 Crossed rolleer bearing material:GCr15SiMn
The delivery time about 25-35 days after getting the order
The bearing shipping by sea or by air
The package: standard strong export wooden case or wooden pallet
Service: offer the assembly drawing
The bearing XR882055 Bearing application:
XR882055 Bearing able to withstand high overturning moments,and is optimal for machine tools,including vertical boring,grinding machines, precision circular dividing table,gear hobbing machine ,turret and industrical robots.
Description:XR AND JXR Crossed roller thrust bearing product list as follows:
|Bearing type||dimension (mm)||Basic Dynamic load rating||weight(kgs)|
|d||D||T||radial load rating||Axial load rating|
Our team advantage:
We have 70 employees, with 10 experienced engineers and professional technicists. The most of Engineer from LYC and ZWZ brand factory, they had owned produce and design and after sales experienced to design the bearing.We can also design the drawing according to the bearing work condition to meet the customer requirement.
Equipped with advanced manufacturing CNC Machine and test instruments to insure the accurate tolerance , all bearings are of uniform marking and packing with superior quality, reasonable prices and perfect services. Meanwhile we can make the module to test the mounting hole.
All the bearing from the forging to assembly process,It will need to inspect step.For the bearing forging we will need to test the size and hardness and surface, for the lathe process and grinding process,first it will need to check by the worker ,and then the professional inspector will checking the size and accurate,The last step the monitor will inspect the size. It can insure zero defect.
It can calculate the load curve.
Can offer assembly drawing based on the bearing working condition
Can offer pre- sale ,sale and after sale service
