XU080264 Crossed roller slewing bearing no gear, XU080264 slewing ring,311x215.9x25.4 mm

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

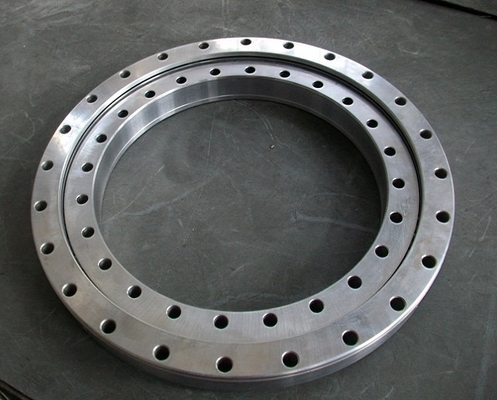

XU080264 Crossed roller slewing bearing no gear, XU080264 slewing ring,311x215.9x25.4 mm

China XU080264 Crossed roller slewing bearing no gear, XU080264 slewing ring,311x215.9x25.4 mm supplier
XU080264 Crossed roller slewing bearing no gear, XU080264 slewing ring,311x215.9x25.4 mm supplier XU080264 Crossed roller slewing bearing no gear, XU080264 slewing ring,311x215.9x25.4 mm supplier XU080264 Crossed roller slewing bearing no gear, XU080264 slewing ring,311x215.9x25.4 mm supplier XU080264 Crossed roller slewing bearing no gear, XU080264 slewing ring,311x215.9x25.4 mm supplier

Large Image :  XU080264 Crossed roller slewing bearing no gear, XU080264 slewing ring,311x215.9x25.4 mm

Product Details:

Place of Origin: China LuoYang
Brand Name: JHB or OEM
Certification: ISO9001:2008 or Quality certificate
Model Number: XU080264

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiated
Packaging Details: standard export package
Delivery Time: in stock ,if ex-stock,It will need 20-30 days
Payment Terms: T/T,L/C
Supply Ability: 1000 PCS/Month
Contact Now
Detailed Product Description
Precision Rating: P5 P6 P0 Seals Type: Double Seal Rubber
Number Of Row: Single Row

 XU080264  Bearing     XU080264 crossed roller slewing bearing no gear

teeth  technology parameter as follow:



Description

XU080264  crossed roller slewing bearing

Outside and Inside diameter tolerances

in accordance with ISO2768-m

dimension

311x215.9x25.4 mm

Outer diameter(OD)

311 mm

Inner diameter(ID)

215.9mm

Width/Height/(H)

25.4 mm

Axial Ca

85 KN

Axial Cor

117 KN

Radial Ca

54 KN

Radial Cor

57 KN

Material

42CrMo,42CrMo4V,50Mn

Package

Inside package: plastic film + kraft paper + blue tape;

Outside package: standard export free-fumigation wooden case.





 XU080264  crossed roller bearings structure description

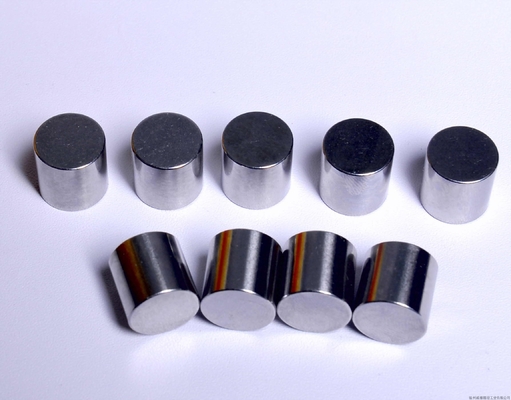

XU080264  Crossed roller bearings are units comprising inner and outer rings with a closing plug and securing dowel, rolling elements, spacers, contact seals and lubrication nipples.
1.gear teeth on the outer ring, inner ring or without gear teeth.
2.bearing rings with through holes or threaded holes for fixing screws
3.are suitable for circumferential speeds
4.can support high radial loads,moderate axial loads and tilting moment loads.
5.are suitalbe for operating temperatures from -25 ℃ to +80 ℃

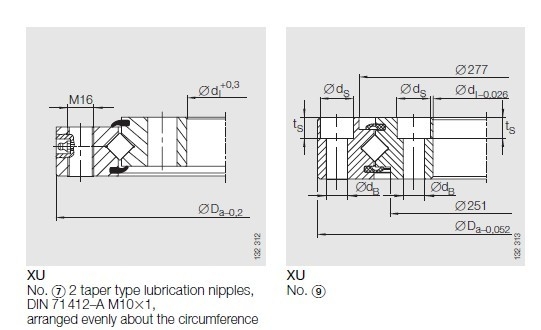

XU:Crossed roller bearing, without gear teeth, preloaded, sealed, lubrication nipple on circumference

of ring without teeth

Crossed roller bearing without gear teeth series XU:

XU080264 Crossed roller slewing bearing no gear, XU080264 slewing ring,311x215.9x25.4 mm





Designation

Weight

(kgs)

Dimension (mm)

Basic load ratings (KN)

Da

di

H

Axial

Ca

Axial

Coa

Radial

Cr

Radial

Cor

XU050077

1.4

112

40

22

22.4

29

14.3

14.2

XU060094

 2.4

140

57

26

32.5

37.5

20.7

18.4

XU060111

 1.2

145.79

76.2

15.87

36

44.5

22.8

21.5

 XU080120

 4

170

69

30

56

53

35.5

26

 XU080149

 3.6

196.85

101.6

22.22

63

66

40

32.5

XU120179

 7

234

124.5

35

118

179

75

88

XU120222

12

300

140

36

133

275

85

131

XU160260

16

329

191

46

212

350

135

173

XU080264

7

311

215.9

25.4

85

117

54

57

XU160405

25

474

336

46

270

550

172

270

XU080430

12

480

380

26

110

280

70

138

XU300515

115

646

384

86

720

1370

455

670



 XU080264   Bearing,    XU080264  Slewing ring,  XU080264  crossed roller slewing bearing Application:

Foundry operation

Construction machinery (e.g. crane, dragline excavator, vibratory roller)

Vehicles and vehicle attachments (e.g. lorry-mounted crane)

Fork lift trucks and fork lift truck attachments

Sewage treatment plant

Wind power equipment

Robots

Antennae

Machine tools

Measuring equipment

Medical equipment

JinHang Precision Bearing mainly  export high quantities     XU080264  Slewing Bearing and relative products, we have huge stocks for     XU080264   slewing ring  and relative items, we supply high quality     XU080264  four point contact ball  Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in     XU080264  Bearing, please email us :lyjh@lyjhbearing.com    so we will contact you directly.
