XU060094 Crossed roller slewing bearing no gear,XU060094 slewing ring supplier
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P5 P6 P0 | Seals Type: | Double Seal Rubber |
|---|---|---|---|
| Number Of Row: | Single Row |
XU060094 Bearing XU060094 crossed roller slewing bearing no gear
teeth technology parameter as follow:
|
Description |
XU060094 crossed roller slewing bearing |
|
Outside and Inside diameter tolerances |
in accordance with ISO2768-m |
|
dimension |
140x57x26 mm |
|
Outer diameter(OD) |
140 mm |
|
Inner diameter(ID) |
57mm |
|
Width/Height/(H) |
26 mm |
|
Axial Ca |
32.5 KN |
|
Axial Cor |
37.5KN |
|
Radial Ca |
20.7 KN |
|
Radial Cor |
18.4 KN |
|
Material |
42CrMo,42CrMo4V,50Mn |
|
Package |
Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case. |

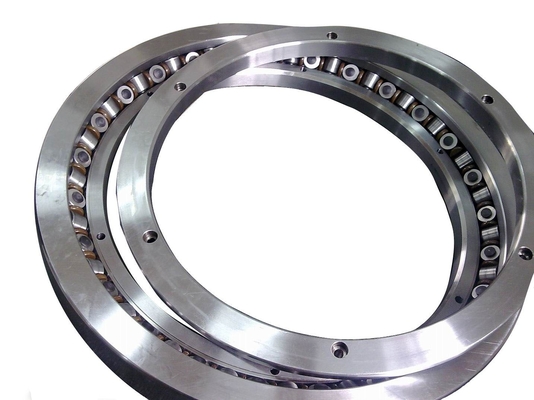

XU060094 crossed roller bearings structure description
XU060094 Crossed roller bearings are units comprising inner and outer rings with a closing plug and securing dowel, rolling elements, spacers, contact seals and lubrication nipples.
1.gear teeth on the outer ring, inner ring or without gear teeth.
2.bearing rings with through holes or threaded holes for fixing screws
3.are suitable for circumferential speeds
4.can support high radial loads,moderate axial loads and tilting moment loads.
5.are suitalbe for operating temperatures from -25 ℃ to +80 ℃

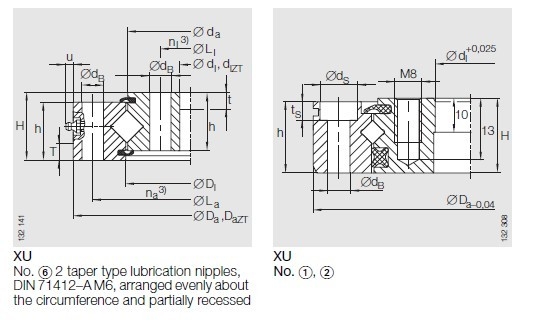

XU:Crossed roller bearing, without gear teeth, preloaded, sealed, lubrication nipple on circumference
of ring without teeth
Crossed roller bearing without gear teeth series XU:
|
Designation |
Weight (kgs) |
Dimension (mm) |
Basic load ratings (KN) |
|||||
|
|
|
Da |
di |
H |
Axial Ca |
Axial Coa |
Radial Cr |
Radial Cor |
|
XU050077 |
1.4 |
112 |
40 |
22 |
22.4 |
29 |
14.3 |
14.2 |
|
XU060094 |
2.4 |
140 |
57 |
26 |
32.5 |
37.5 |
20.7 |
18.4 |
|
XU060111 |
1.2 |
145.79 |
76.2 |
15.87 |
36 |
44.5 |
22.8 |
21.5 |
|
XU080120 |
4 |
170 |
69 |
30 |
56 |
53 |
35.5 |
26 |
|
XU080149 |
3.6 |
196.85 |
101.6 |
22.22 |
63 |
66 |
40 |
32.5 |
|
XU120179 |
7 |
234 |
124.5 |
35 |
118 |
179 |
75 |
88 |
XU060094 Bearing, XU060094 Slewing ring,XU060094 crossed roller slewing bearing Application:
Foundry operation
Construction machinery (e.g. crane, dragline excavator, vibratory roller)
Vehicles and vehicle attachments (e.g. lorry-mounted crane)
Fork lift trucks and fork lift truck attachments
Sewage treatment plant
Wind power equipment
Robots
Antennae
Machine tools
Measuring equipment
Medical equipment
JinHang Precision Bearing mainly export high quantities XU060094 Slewing Bearing and relative products, we have huge stocks for XU060094 slewing ring and relative items, we supply high quality XU060094 four point contact ball Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in XU060094 Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly.
If you want to know more, please contact us as follows:
JinHang Precision Bearing Co.,Ltd
www.chinajhbearing.com www.lyjhbearing.com
E-mail: lyjh@lyjhbearing.com
Skype: million556
