INA XI120288 N Crossed roller slewing bearing with external gear,XI120288 N slewing ring

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

INA XI120288 N Crossed roller slewing bearing with external gear,XI120288 N slewing ring

China INA XI120288 N Crossed roller slewing bearing with external gear,XI120288 N slewing ring supplier
INA XI120288 N Crossed roller slewing bearing with external gear,XI120288 N slewing ring supplier INA XI120288 N Crossed roller slewing bearing with external gear,XI120288 N slewing ring supplier INA XI120288 N Crossed roller slewing bearing with external gear,XI120288 N slewing ring supplier INA XI120288 N Crossed roller slewing bearing with external gear,XI120288 N slewing ring supplier

Large Image :  INA XI120288 N Crossed roller slewing bearing with external gear,XI120288 N slewing ring

Product Details:

Place of Origin: China LuoYang
Brand Name: JHB or OEM
Certification: ISO9001:2008 or Quality certificate
Model Number: XI120288 N

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiated
Packaging Details: standard export package
Delivery Time: in stock ,if ex-stock,It will need 20-30 days
Payment Terms: T/T,L/C
Supply Ability: 1000 PCS/Month
Contact Now
Detailed Product Description
Precision Rating: P5 P6 P0 Seals Type: Double Seal Rubber
Number Of Row: Single Row

XI120288N  Bearing,

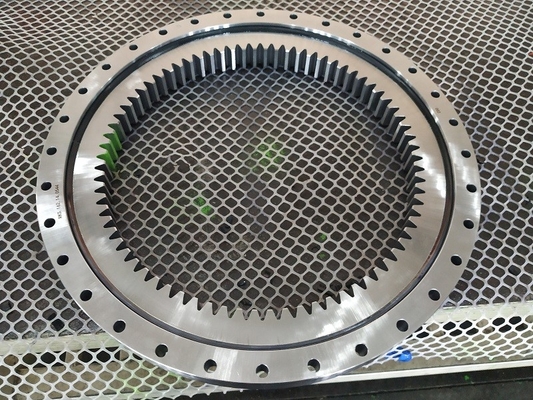

 XI120288N crossed roller slewing bearing with internl gear

teeth  technology parameter as follow:



Description

XI120288N   crossed roller slewing bearing

Outside and Inside diameter tolerances

in accordance with ISO2768-m

dimension

340x216x38 mm

Outer diameter(OD)

340 mm

Inner diameter(ID)

216mm

Width/Height/(H)

38mm

Axial Ca

150 KN

Axial Cor

290 KN

Radial Ca

95KN

Radial Cor

141  KN

Gear do 224 mm
Gear m 4
Gear Z 56

Material

42CrMo,42CrMo4V,50Mn

Package

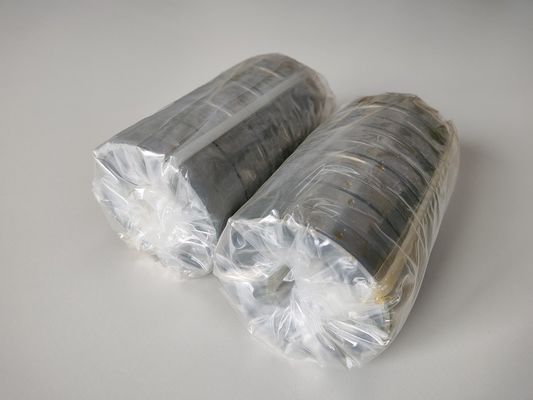

Inside package: plastic film + kraft paper + blue tape;

Outside package: standard export free-fumigation wooden case.





XI120288N  Crossed roller bearings structure description:

XI120288N   Crossed roller bearings are units comprising inner and outer rings with a closing plug and securing dowel, rolling elements, spacers, contact seals and lubrication nipples.
1.gear teeth on the outer ring, inner ring or without gear teeth.
2.bearing rings with through holes or threaded holes for fixing screws
3.are suitable for circumferential speeds
4.can support high radial loads,moderate axial loads and tilting moment loads.
5.are suitalbe for operating temperatures from -25 ℃ to +80 ℃



XI: Crossed roller bearing, internal gear teeth, preloaded, sealed, lubrication nipple on circumference

of ring without teeth

Crossed roller bearing internal gear teeth series XI:



INA XI120288 N Crossed roller slewing bearing with external gear,XI120288 N slewing ring



Designation

Weight

(kgs)

Dimension (mm)

Gear teeth

Basic load ratings (KN)

Da

di

H

do

m

z

Axial

Ca

Axial

Coa

Radial

Cr

Radial

Cor

XA120235 N

13.3

318.8

171

40

312

4

78

135

235

86

115

 XA200352 H

34.5

462

274

59

450

6

75

   335

720

214

335

XI120288 N

12

340

216

38

224

4

56

   150

290

95

141



XI120288N   Bearing,  XI120288N Slewing ring, XI120288N   crossed roller slewing bearing Application:

Foundry operation

Construction machinery (e.g. crane, dragline excavator, vibratory roller)

Vehicles and vehicle attachments (e.g. lorry-mounted crane)

Fork lift trucks and fork lift truck attachments

Sewage treatment plant

Wind power equipment

Robots

Antennae

Machine tools

Measuring equipment

Medical equipment

JinHang Precision Bearing mainly  export high quantities   XI120288N   Slewing Bearing and relative products, we have huge stocks for  XI120288N    slewing ring  and relative items, we supply high quality  XI120288N   four point contact ball  Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in  XI120288N   Bearing, please email us :lyjh@lyjhbearing.com    so we will contact you directly.
