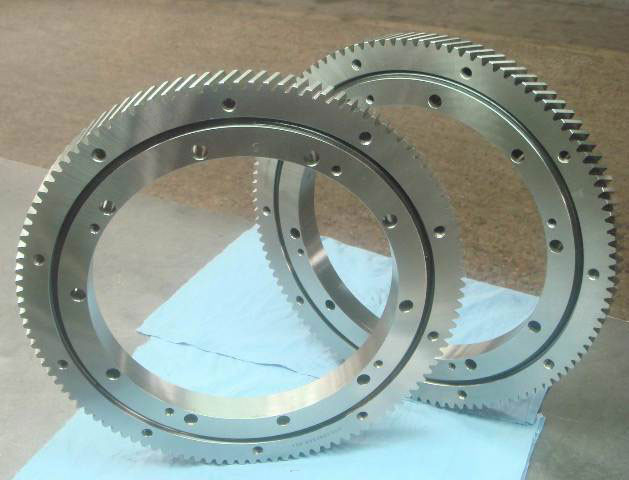

XA120235 N Crossed roller slewing bearing with external gear,XA120235 N slewing ring

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

XA120235 N Crossed roller slewing bearing with external gear,XA120235 N slewing ring

China XA120235 N Crossed roller slewing bearing with external gear,XA120235 N slewing ring supplier
XA120235 N Crossed roller slewing bearing with external gear,XA120235 N slewing ring supplier XA120235 N Crossed roller slewing bearing with external gear,XA120235 N slewing ring supplier XA120235 N Crossed roller slewing bearing with external gear,XA120235 N slewing ring supplier XA120235 N Crossed roller slewing bearing with external gear,XA120235 N slewing ring supplier

Large Image :  XA120235 N Crossed roller slewing bearing with external gear,XA120235 N slewing ring

Product Details:

Place of Origin: China LuoYang
Brand Name: JHB or OEM
Certification: ISO9001:2008 or Quality certificate
Model Number: XA120235 N

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiated
Packaging Details: standard export package
Delivery Time: in stock ,if ex-stock,It will need 20-30 days
Payment Terms: T/T,L/C
Supply Ability: 1000 PCS/Month
Contact Now
Detailed Product Description
Precision Rating: P5 P6 P0 Seals Type: Double Seal Rubber
Number Of Row: Single Row


XA120235N  Bearing,XA120235N  crossed roller slewing bearing with externl gear
teeth  technology parameter as follow:


Description

XA120235N  crossed roller slewing bearing

Outside and Inside diameter tolerances

in accordance with ISO2768-m

dimension

318.8x171x40 mm

Outer diameter(OD)

318.8 mm

Inner diameter(ID)

171mm

Width/Height/(H)

40 mm

Axial Ca

135 KN

Axial Cor

235 KN

Radial Ca

86 KN

Radial Cor

115  KN

Gear do312 mm
Gear m4
Gear Z78

Material

42CrMo,42CrMo4V,50Mn

Package

Inside package: plastic film + kraft paper + blue tape;
Outside package: standard export free-fumigation wooden case.



XA120235N  Crossed roller bearings structure description:

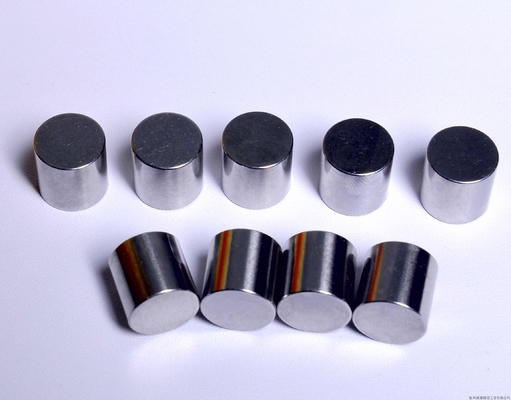

XA120235N  Crossed roller bearings are units comprising inner and outer rings with a closing plug and securing dowel, rolling elements, spacers, contact seals and lubrication nipples.
1.gear teeth on the outer ring, inner ring or without gear teeth.
2.bearing rings with through holes or threaded holes for fixing screws
3.are suitable for circumferential speeds
4.can support high radial loads,moderate axial loads and tilting moment loads.
5.are suitalbe for operating temperatures from -25 ℃ to +80 ℃

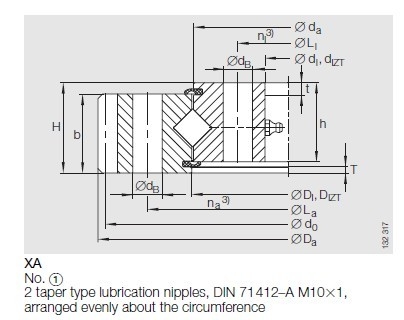

XA: Crossed roller bearing, external gear teeth, preloaded, sealed, lubrication nipple on circumference
     of ring without teeth

Crossed roller bearing external gear teeth series XA:
XA120235 N Crossed roller slewing bearing with external gear,XA120235 N slewing ring


Designation

Weight

(kgs)

Dimension (mm)

Gear teeth

Basic load ratings (KN)

Da

di

H

do

m

z

Axial

Ca

Axial

Coa

Radial

Cr

Radial

Cor

XA120235 N

13.3

318.8

171

40

312

4

78

135

235

86

115

 XA200352 H

34.5

462

274

59

450

6

75

   335

720

214

335

XI120288 N

12

340

216

38

224

4

56

   150

290

95

141



XA120235N  Bearing,  XA120235N Slewing ring, XA120235N  crossed roller slewing bearing Application:
Foundry operation
Construction machinery (e.g. crane, dragline excavator, vibratory roller)
Vehicles and vehicle attachments (e.g. lorry-mounted crane)
Fork lift trucks and fork lift truck attachments
Sewage treatment plant
Wind power equipment
Robots
Antennae
Machine tools
Measuring equipment
Medical equipment
JinHang Precision Bearing mainly  export high quantities   XA120235N  Slewing Bearing and relative products, we have huge stocks for  XA120235N   slewing ring  and relative items, we supply high quality  XA120235N   four point contact ball  Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in  XA120235N  Bearing, please email us :lyjh@lyjhbearing.com    so we will contact you directly.
