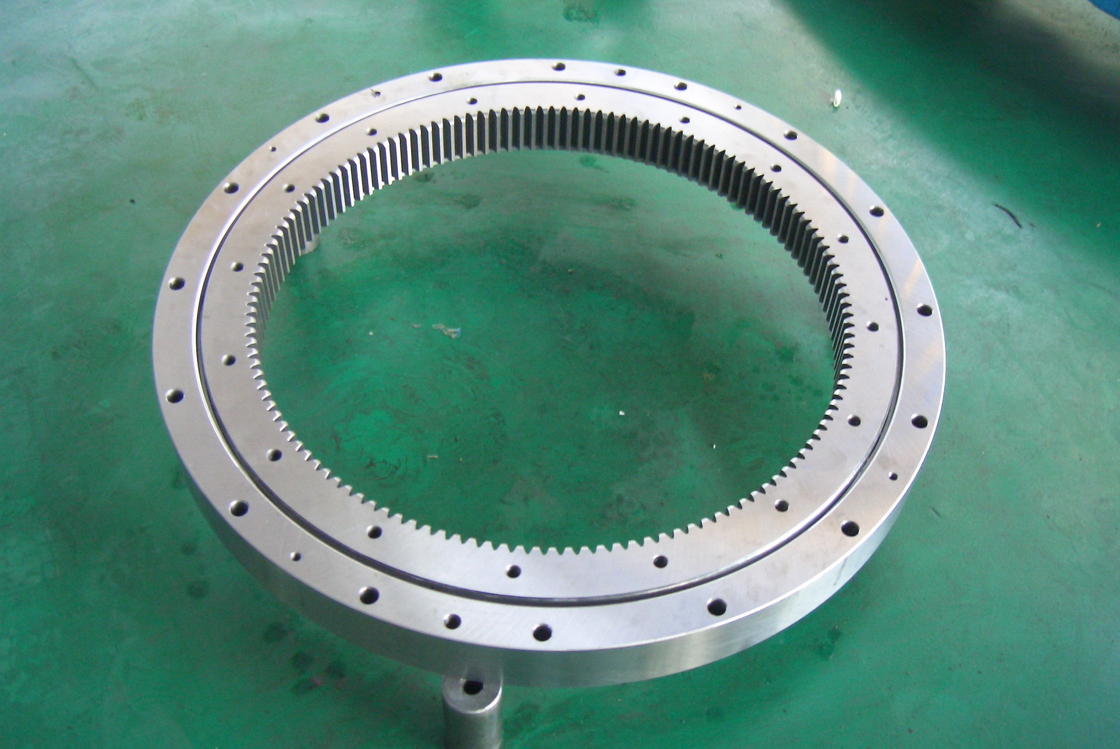

XSI140744N slewing bearing with internal gear,XSI140744N slewing ring 814x648x56mm

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

XSI140744N slewing bearing with internal gear,XSI140744N slewing ring 814x648x56mm

China XSI140744N  slewing bearing with internal gear,XSI140744N slewing ring 814x648x56mm supplier
XSI140744N  slewing bearing with internal gear,XSI140744N slewing ring 814x648x56mm supplier XSI140744N  slewing bearing with internal gear,XSI140744N slewing ring 814x648x56mm supplier XSI140744N  slewing bearing with internal gear,XSI140744N slewing ring 814x648x56mm supplier XSI140744N  slewing bearing with internal gear,XSI140744N slewing ring 814x648x56mm supplier

Large Image :  XSI140744N slewing bearing with internal gear,XSI140744N slewing ring 814x648x56mm

Product Details:

Place of Origin: China LuoYang
Brand Name: JHB or OEM
Certification: ISO9001:2008 or Quality certificate
Model Number: XSI140744N

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiated
Packaging Details: standard export package
Delivery Time: in stock ,if ex-stock,It will need 20-30 days
Payment Terms: T/T,L/C
Supply Ability: 1000 PCS/Month
Contact Now
Detailed Product Description
Precision Rating: P5 P6 P0 Seals Type: Double Seal Rubber
Number Of Row: Single Row



XSI140744N  Bearing,XSI140744N crossed roller slewing bearing with internal gear

teeth  technology parameter as follow:



Description

XSI140744N  crossed roller slewing bearing

Outside and Inside diameter tolerances

in accordance with ISO2768-m

dimension

814x648x56 mm

Outer diameter(OD)

814 mm

Inner diameter(ID)

648 mm

Width/Height/(H)

56 mm

Axial Ca

315 KN

Axial Cor

930 KN

Radial Ca

200 KN

Radial Cor

455  KN

Gear teech do

660

Gear teeth m

6

Gear teeth Z

110

Material

42CrMo,42CrMo4V,50Mn

Package

Inside package: plastic film + kraft paper + blue tape;

 Outside package: standard export free-fumigation wooden case.

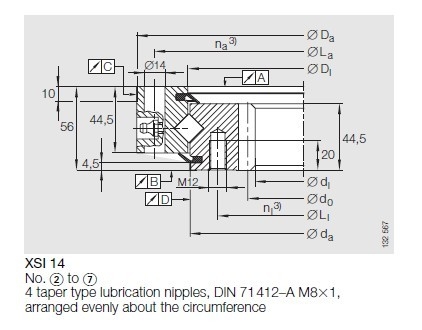

XSI140744N  Crossed roller bearings structure description:

XSI140744N   Crossed roller bearings are units comprising inner and outer rings with a closing plug and securing dowel, rolling elements, spacers, contact seals and lubrication nipples.
1.gear teeth on the outer ring, inner ring or without gear teeth.
2.bearing rings with through holes or threaded holes for fixing screws
3.are suitable for circumferential speeds
4.can support high radial loads,moderate axial loads and tilting moment loads.
5.are suitalbe for operating temperatures from -25 ℃ to +80 ℃



XSI14: Crossed roller bearing, standard series 14, internal teeth, sealed, preloaded, lubrication nipple

      on circumference of untoothed ring

Crossed roller bearings standard series 14 internal gear teeth series XSI:

XSI140744N  slewing bearing with internal gear,XSI140744N slewing ring 814x648x56mm



Designation

Weight

(kgs)

Dimension (mm)

Gear teeth

Basic load ratings (KN)





Da

di

H

do

m

z

Axial

Ca

Axial

Coa

Radial

Cr

Radial

Cor

 XSI 14 0414 N

31

484

325

56

335

5

67

229

520

146

250

 XSI 14 0544 N

 43

614

444

56

456

6

76

   270

680

170

330

 XSI 14 0644 N

 50

714

546

56

558

6

93

   290

800

185

395

XSI 14 0744 N

 58

814

648

56

660

6

110

315

930

200

455

XSI 14 0844 N

 69

914

736

56

752

8

94

340

1050

215

510

XSI 14 0944 N

 76

1014

840

56

856

8

107

360

1170

227

580

XSI 14 1094 N

 91

1164

984

56

1000

8

125

390

1360

246

670



XSI140744N  Bearing,  XSI140744N  Slewing ring, XSI140744N  crossed roller slewing bearing Application:

Foundry operation

Construction machinery (e.g. crane, dragline excavator, vibratory roller)

Vehicles and vehicle attachments (e.g. lorry-mounted crane)

Fork lift trucks and fork lift truck attachments

Sewage treatment plant

Wind power equipment

Robots

Antennae

Machine tools

Measuring equipment

Medical equipment

JinHang Precision Bearing mainly  export high quantities   XSI140744N Slewing Bearing and relative products, we have huge stocks for  XSI140744N   slewing ring  and relative items, we supply high quality  XSI140744N  four point contact ball  Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in    XSI140744N  Bearing, please email us :lyjh@lyjhbearing.com    so we will contact you directly.
