XSA140844N crossed roller slewing bearing with external gear,950.1x774x56mm

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

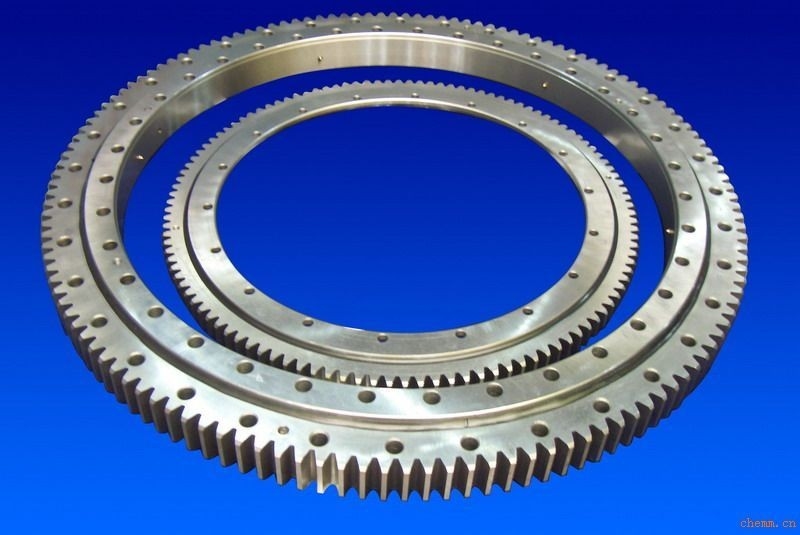

XSA140844N crossed roller slewing bearing with external gear,950.1x774x56mm

China XSA140844N crossed roller slewing bearing with external gear,950.1x774x56mm supplier
XSA140844N crossed roller slewing bearing with external gear,950.1x774x56mm supplier XSA140844N crossed roller slewing bearing with external gear,950.1x774x56mm supplier XSA140844N crossed roller slewing bearing with external gear,950.1x774x56mm supplier XSA140844N crossed roller slewing bearing with external gear,950.1x774x56mm supplier

Large Image :  XSA140844N crossed roller slewing bearing with external gear,950.1x774x56mm

Product Details:

Place of Origin: China LuoYang
Brand Name: JHB or OEM
Certification: ISO9001:2008 or Quality certificate
Model Number: XSA140844N

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiated
Packaging Details: standard export package
Delivery Time: in stock ,if ex-stock,It will need 20-30 days
Payment Terms: T/T,L/C
Supply Ability: 1000 PCS/Month
Contact Now
Detailed Product Description
Precision Rating: P5 P6 P0 Seals Type: Double Seal Rubber
Number Of Row: Single Row



 XSA140844N  Bearing,XSA140844N  crossed roller slewing bearing with external gear

teeth  technology parameter as follow:



Description

XSA140844N  crossed roller slewing bearing

Outside and Inside diameter tolerances

in accordance with ISO2768-m

dimension

950.1x774x56 mm

Outer diameter(OD)

950.1 mm

Inner diameter(ID)

774 mm

Width/Height/(H)

56 mm

Axial Ca

340 KN

Axial Cor

1050 KN

Radial Ca

215 KN

Radial Cor

510  KN

Gear teech do

936

Gear teeth m

8

Gear teeth Z

117

Material

42CrMo,42CrMo4V,50Mn

Package

Inside package: plastic film + kraft paper + blue tape;

 Outside package: standard export free-fumigation wooden case.

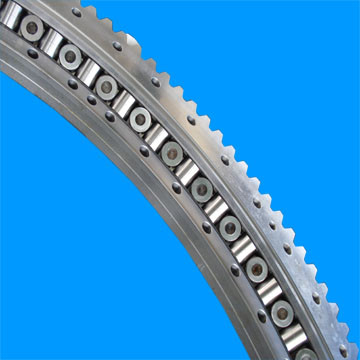

XSA140844N  Crossed roller bearings structure description:

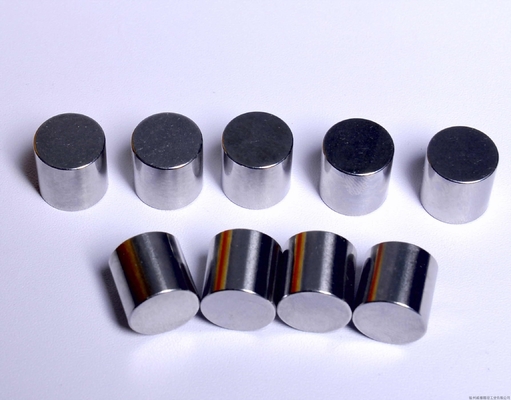

XSA140844N  Crossed roller bearings are units comprising inner and outer rings with a closing plug and securing dowel, rolling elements, spacers, contact seals and lubrication nipples.
1.gear teeth on the outer ring, inner ring or without gear teeth.
2.bearing rings with through holes or threaded holes for fixing screws
3.are suitable for circumferential speeds
4.can support high radial loads,moderate axial loads and tilting moment loads.
5.are suitalbe for operating temperatures from -25 ℃ to +80 ℃

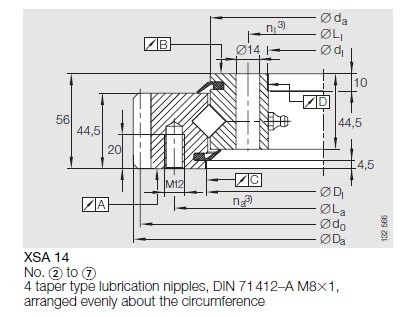

XSA14: Crossed roller bearing, standard series 14, external teeth, sealed, preloaded, lubrication nipple

      on circumference of untoothed ring

Crossed roller bearings standard series 14 external gear teeth series XSA:



XSA140844N crossed roller slewing bearing with external gear,950.1x774x56mm



Designation

Weight

(kgs)

Dimension (mm)

Gear teeth

Basic load ratings (KN)

Da

di

H

do

m

z

Axial

Ca

Axial

Coa

Radial

Cr

Radial

Cor

 XSA 4 0414 N

32

503.3

344

56

495

5

99

229

520

146

250

 XSA 14 0544 N

44

640.3

474

56

630

6

105

270

680

170

330

 XSA 14 0644 N

52

742.3

574

56

732

6

122

290

800

185

395

XSA 14 0744 N

59

838.1

674

56

828

6

138

315

930

200

455

XSA 14 0844 N

71

950.1

774

56

936

8

117

340

1050

215

510

XSA 14 0944 N

77

1046.1

874

56

1032

8

129

360

1170

227

580

XSA 14 1094 N

91

1198.1

1024

56

1184

8

148

390

1360

246

670





XSA140844N  Bearing,  XSA140844N  Slewing ring,  XSA140844N crossed roller slewing bearing Application:

Foundry operation

Construction machinery (e.g. crane, dragline excavator, vibratory roller)

Vehicles and vehicle attachments (e.g. lorry-mounted crane)

Fork lift trucks and fork lift truck attachments

Sewage treatment plant

Wind power equipment

Robots

Antennae

Machine tools

Measuring equipment

Medical equipment

JinHang Precision Bearing mainly  export high quantities   XSA140844N Slewing Bearing and relative products, we have huge stocks for  XSA140844N    slewing ring  and relative items, we supply high quality  XSA140844N  four point contact ball  Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in    XSA140844N   Bearing, please email us :lyjh@lyjhbearing.com    so we will contact you directly.
