RKS.160.14.0414 slewing bearings,344x486x56mm, without gear, raceway hardness:55-62HRC

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

RKS.160.14.0414 slewing bearings,344x486x56mm, without gear, raceway hardness:55-62HRC

China RKS.160.14.0414 slewing bearings,344x486x56mm, without gear, raceway hardness:55-62HRC supplier
RKS.160.14.0414 slewing bearings,344x486x56mm, without gear, raceway hardness:55-62HRC supplier RKS.160.14.0414 slewing bearings,344x486x56mm, without gear, raceway hardness:55-62HRC supplier RKS.160.14.0414 slewing bearings,344x486x56mm, without gear, raceway hardness:55-62HRC supplier RKS.160.14.0414 slewing bearings,344x486x56mm, without gear, raceway hardness:55-62HRC supplier

Large Image :  RKS.160.14.0414 slewing bearings,344x486x56mm, without gear, raceway hardness:55-62HRC

Product Details:

Place of Origin: China
Brand Name: JHB or your required
Certification: ISO9001:2008
Model Number: RKS.160.14.0414

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 1-1000USD/negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: 25-35 days
Payment Terms: T/T,L/C
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Precision Rating: P0 P6 P5 Seals Type: Double Sealed
Number Of Row: Single Row

RKS.160.14.0414  SKF code   Single row crossed cylindrical roller slewing bearing

 RKS.160.14.0414  slewing ring bearings,344x486x56mm, without gear,

Dimensions - d (inside diameter): 344 mm

Dimensions - D (outside diameter):486 mm

Dimensions - B (width): 56mm

     RKS.160.14.0414 slewing bearings,344x486x56mm, without gear, raceway hardness:55-62HRC

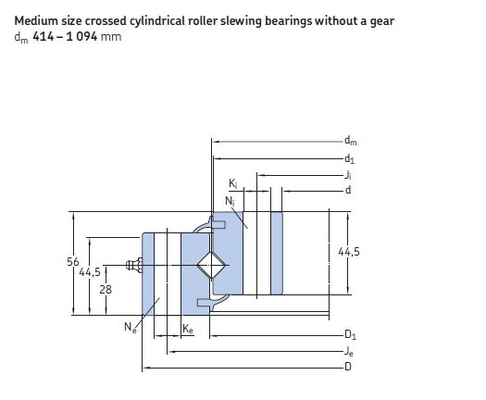

Basic Dimensions(mm)

Bearing Designations

basic load rating(KN)

Weight

d

D

B

C

Co

(KGS)

344

486

56

RKS.160.14.0414

167

595

28

RKS.160.14.0414  Single row crossed cylindrical roller slewing bearings are simple in design, consisting of a one-piece inner and outer ring and cylindrical rollers separated by polyamide spacers and generally protected by integral seals.

RKS.160.14.0414  The outer ring and inner ring material: 42CrMo, 42CrMo4V,50Mn in accordance with EN 10083
Ball material: 100Cr6 bearing steel,in accordance with EN ISO683
Geart teeth accuracy grade: in accordance with ISO1328
Oil or grease material:Lithium grease
The inner ring and outer ring Material  hardness: quenching and tempering: HB229~269
Raceway case hardening :HRC55~62
RKS.160.14.0414  The package,: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case. we can assure that the bearing shipping by sea or by air.
The delivery time:25-35 days

Generally, RKS.160.14.0414  slewing bearings are large-size rolling bearings that can accommodate axial, radial and moment loads acting either singly or in combination and in any direction. They can perform both slewing (oscillating) movements as well as rotational movements.
Basically, RKS.160.14.0414   slewing bearing consists of an inner ring , an outer ring and rolling elements−balls or cylindrical rollers−that are separated by polyamide spacers .The rings, one of which usually incorporates a gear , are provided with holes to accommodate attachment bolts. The holes may be threaded.
Generally, only the raceways in the rings are hardened and precision- ground. Integral seals  made of acrylonitrile- butadiene rubber (NBR) keep the lubricant in, and contaminants out of the bearing.

RKS.160.14.0414  Slewing bearings perform extremely well in a variety of applications such as:
• access platforms
• bucket wheel excavators
• conveyor booms
• cranes of all types
• small, medium and large excavators
• indexing tables
• ladle turrets
• offshore applications
• robots
• railway bogies
• rotary platforms
• stackers
• solar mirrors
• tunnel boring machines
• wind turbines


   If you want to know  RKS.160.14.0414  bearing  more, Please send us by e-mail  or call us, We will send the more details. Thanks.
