RKS.121390101002 crossed roller Slewing bearing with external gear ,477x695x77 mm

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

RKS.121390101002 crossed roller Slewing bearing with external gear ,477x695x77 mm

China RKS.121390101002 crossed roller Slewing bearing with external gear ,477x695x77 mm supplier
RKS.121390101002 crossed roller Slewing bearing with external gear ,477x695x77 mm supplier RKS.121390101002 crossed roller Slewing bearing with external gear ,477x695x77 mm supplier RKS.121390101002 crossed roller Slewing bearing with external gear ,477x695x77 mm supplier

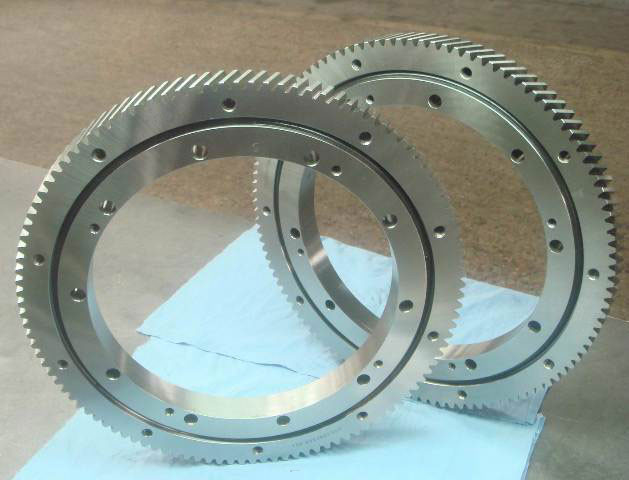

Large Image :  RKS.121390101002 crossed roller Slewing bearing with external gear ,477x695x77 mm

Product Details:

Place of Origin: China
Brand Name: JHB or your required
Certification: ISO9001:2008 or quality certificate
Model Number: RKS.121390101002

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 1-1000USD/negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: in stock
Payment Terms: T/T,L/C
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Precision Rating: P0 P6 P5 Seals Type: Double Sealed
Number Of Row: Single Row

RKS.121390101002 SKF code    Single row crossed cylindrical roller slewing bearing

Dimensions - d (inside diameter) 477 mm

Dimensions - D (outside diameter)695 mm

Dimensions - B (width) 77mm

     RKS.121390101002 crossed roller Slewing bearing with external gear ,477x695x77 mm

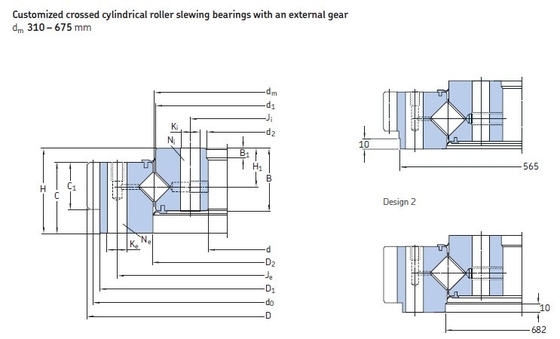

Basic Dimensions(mm)

Bearing Designations

Gear Dimension

basic load rating(KN)

Weight

d

D

B

d0(mm)

 m

z

C

Co

(KGS)

477

695

77

RKS.121390101002

685

5

137

339

1280

79

RKS.121390101002  Single row crossed cylindrical roller slewing bearings are simple in design, consisting of a one-piece inner and outer ring and cylindrical rollers separated by polyamide spacers and generally protected by integral seals.

RKS.121390101002    The outer ring and inner ring material: 42CrMo, 42CrMo4V,50Mn in accordance with EN10083
Roller material: 100Cr6 bearing steel,in accordance with EN ISO683
Geart teeth accuracy grade: in accordance with ISO1328
Oil or grease material:Lithium grease
The inner ring and outer ring Material  hardness: quenching and tempering: HB229~269
Raceway case hardening :HRC55~62
RKS.121390101002  The package,: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case. we can assure that the bearing shipping by sea or by air.
The delivery time:25-35 days

Generally,   RKS.121390101002   slewing bearings are large-size rolling bearings that can accommodate axial, radial and moment loads acting either singly or in combination and in any direction. They can perform both slewing (oscillating) movements as well as rotational movements.
Basically, RKS.121390101002 slewing bearing consists of an inner ring , an outer ring and rolling elements−balls or cylindrical rollers−that are separated by polyamide spacers .The rings, one of which usually incorporates a gear , are provided with holes to accommodate attachment bolts. The holes may be threaded.
Generally, only the raceways in the rings are hardened and precision- ground. Integral seals  made of acrylonitrile- butadiene rubber (NBR) keep the lubricant in, and contaminants out of the bearing.

RKS.121390101002  Slewing bearings perform extremely well in a variety of applications such as:
• access platforms
• bucket wheel excavators
• conveyor booms
• cranes of all types
• small, medium and large excavators
• indexing tables
• ladle turrets
• offshore applications
• robots
• railway bogies
• rotary platforms
• stackers
• solar mirrors
• tunnel boring machines
• wind turbines


   If you want to know   RKS.121390101002  bearing  more, Please send us by e-mail  or call us, We will send the more details. Thanks.
