China RKS.161.14.0844 crossed roller Slewing bearing 774x950.4x56 mm,direcly sales to custome

China China RKS.161.14.0844 crossed roller Slewing bearing 774x950.4x56 mm,direcly sales to custome supplier
China RKS.161.14.0844 crossed roller Slewing bearing 774x950.4x56 mm,direcly sales to custome supplier China RKS.161.14.0844 crossed roller Slewing bearing 774x950.4x56 mm,direcly sales to custome supplier China RKS.161.14.0844 crossed roller Slewing bearing 774x950.4x56 mm,direcly sales to custome supplier China RKS.161.14.0844 crossed roller Slewing bearing 774x950.4x56 mm,direcly sales to custome supplier

Large Image :  China RKS.161.14.0844 crossed roller Slewing bearing 774x950.4x56 mm,direcly sales to custome

Product Details:

Place of Origin: China
Brand Name: JHB or your required
Certification: ISO9001:2008 or quality certificate
Model Number: RKS.161.14.0844

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 1-1000USD/negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: in stock
Payment Terms: T/T,L/C, Western Union
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Precision Rating: P0 P5 P6 Seals Type: Double Sealed
Number Of Row: Single Row

RKS.161.14.0844 crossed roller Slewing bearing 774x950.4x56 mm,direcly sales to customer





RKS.161.14.0844  SKF code    Single row crossed cylindrical roller slewing bearing

Dimensions - d (inside diameter) 774 mm

Dimensions - D (outside diameter)950.4 mm

Dimensions - B (width) 56 mm

     China RKS.161.14.0844 crossed roller Slewing bearing 774x950.4x56 mm,direcly sales to custome

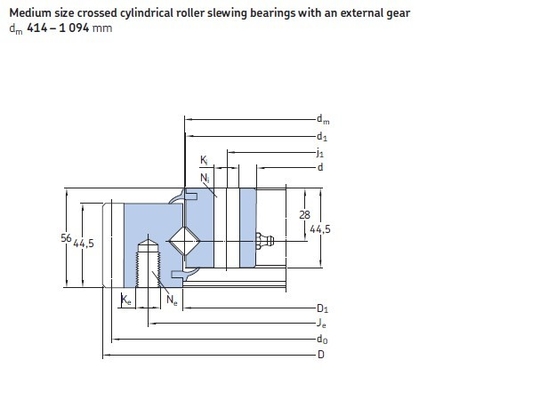

Basic Dimensions(mm)

Bearing Designations

Gear Dimension

basic load rating(KN)

Weight

d

D

B

d0(mm)

 m

z

C

Co

(KGS)

774

950.4

56

RKS.161.14.0844

936

8

117

244

1220

71

RKS.161.14.0844   Single row crossed cylindrical roller slewing bearings are simple in design, consisting of a one-piece inner and outer ring and cylindrical rollers separated by polyamide spacers and generally protected by integral seals.



 RKS.161.14.0844 The outer ring and inner ring material: 42CrMo, 42CrMo4V,50Mn in accordance with EN10083


Roller material: 100Cr6 bearing steel,in accordance with EN ISO683


Geart teeth accuracy grade: in accordance with ISO1328


Oil or grease material:Lithium grease


The inner ring and outer ring Material  hardness: quenching and tempering: HB229~269
Raceway case hardening :HRC55~62


RKS.161.14.0844 The package,: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case. we can assure that the bearing shipping by sea or by air.


The delivery time:25-35 days



Generally, RKS.161.14.0844   slewing bearings are large-size rolling bearings that can accommodate axial, radial and moment loads acting either singly or in combination and in any direction. They can perform both slewing (oscillating) movements as well as rotational movements.
Basically, RKS.161.14.0844 slewing bearing consists of an inner ring , an outer ring and rolling elements−balls or cylindrical rollers−that are separated by polyamide spacers .The rings, one of which usually incorporates a gear , are provided with holes to accommodate attachment bolts. The holes may be threaded.


Generally, only the raceways in the rings are hardened and precision- ground. Integral seals  made of acrylonitrile- butadiene rubber (NBR) keep the lubricant in, and contaminants out of the bearing.



RKS.161.14.0844   Slewing bearings perform extremely well in a variety of applications such as:
• access platforms
• bucket wheel excavators
• conveyor booms
• cranes of all types
• small, medium and large excavators
• indexing tables
• ladle turrets
• offshore applications
• robots
• railway bogies
• rotary platforms
• stackers
• solar mirrors
• tunnel boring machines
• wind turbines

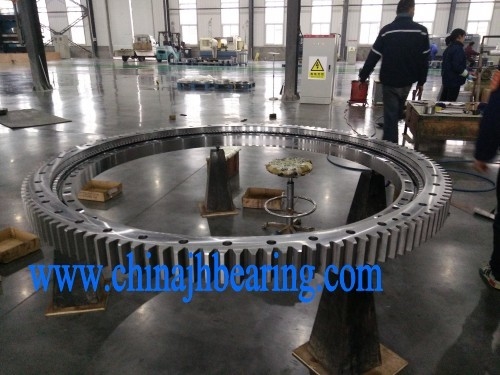

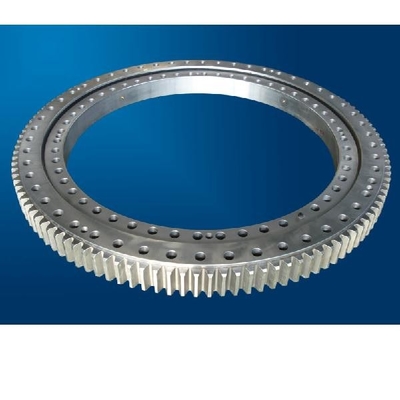

RKS.161.14.0844 Slewing bearing reference pictures:

China RKS.161.14.0844 crossed roller Slewing bearing 774x950.4x56 mm,direcly sales to custome
   If you want to know  RKS.161.14.0844 bearing  more, Please send us by e-mail  or call us, We will send the more details. Thanks.
