China RKS.161.14.0744 crossed roller Slewing bearing with external gear ,674x838.8x56 mm

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

China RKS.161.14.0744 crossed roller Slewing bearing with external gear ,674x838.8x56 mm

China China  RKS.161.14.0744  crossed roller Slewing bearing with external gear ,674x838.8x56 mm supplier
China  RKS.161.14.0744  crossed roller Slewing bearing with external gear ,674x838.8x56 mm supplier China  RKS.161.14.0744  crossed roller Slewing bearing with external gear ,674x838.8x56 mm supplier China  RKS.161.14.0744  crossed roller Slewing bearing with external gear ,674x838.8x56 mm supplier China  RKS.161.14.0744  crossed roller Slewing bearing with external gear ,674x838.8x56 mm supplier

Large Image :  China RKS.161.14.0744 crossed roller Slewing bearing with external gear ,674x838.8x56 mm

Product Details:

Place of Origin: China
Brand Name: JHB or your required
Certification: ISO9001:2008 or quality certificate
Model Number: RKS.161.14.0744

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 1-1000USD/negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: in stock
Payment Terms: T/T,L/C
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Precision Rating: P0 P6 P5 Seals Type: Double Sealed
Number Of Row: Single Row Material: 50Mn

China RKS.161.14.0744 crossed roller Slewing bearing with external gear ,674x838.8x56 mm



RKS.161.14.0744  SKF code    Single row crossed cylindrical roller slewing bearing

Dimensions - d (inside diameter) 674 mm

Dimensions - D (outside diameter)838.8 mm

Dimensions - B (width) 56 mm

     China  RKS.161.14.0744  crossed roller Slewing bearing with external gear ,674x838.8x56 mm

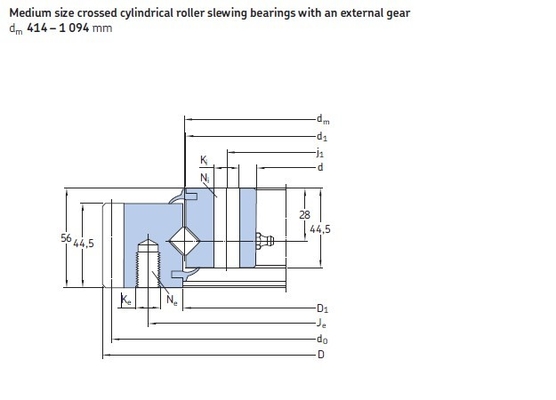

Basic Dimensions(mm)

Bearing Designations

Gear Dimension

basic load rating(KN)

Weight

d

D

B

d0(mm)

 m

z

C

Co

(KGS)

674

838.8

56

RKS.161.14.0744

828

6

138

228

1070

59

RKS.161.14.0744   Single row crossed cylindrical roller slewing bearings are simple in design, consisting of a one-piece inner and outer ring and cylindrical rollers separated by polyamide spacers and generally protected by integral seals.

 RKS.161.14.0744 The outer ring and inner ring material: 42CrMo, 42CrMo4V,50Mn in accordance with EN10083
Roller material: 100Cr6 bearing steel,in accordance with EN ISO683
Geart teeth accuracy grade: in accordance with ISO1328
Oil or grease material:Lithium grease
The inner ring and outer ring Material  hardness: quenching and tempering: HB229~269
Raceway case hardening :HRC55~62
RKS.161.14.0744   The package,: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case. we can assure that the bearing shipping by sea or by air.
The delivery time:25-35 days

Generally, RKS.161.14.0744  slewing bearings are large-size rolling bearings that can accommodate axial, radial and moment loads acting either singly or in combination and in any direction. They can perform both slewing (oscillating) movements as well as rotational movements.
Basically, RKS.161.14.0744 slewing bearing consists of an inner ring , an outer ring and rolling elements−balls or cylindrical rollers−that are separated by polyamide spacers .The rings, one of which usually incorporates a gear , are provided with holes to accommodate attachment bolts. The holes may be threaded.
Generally, only the raceways in the rings are hardened and precision- ground. Integral seals  made of acrylonitrile- butadiene rubber (NBR) keep the lubricant in, and contaminants out of the bearing.

RKS.161.14.0744  Slewing bearings perform extremely well in a variety of applications such as:
• access platforms
• bucket wheel excavators
• conveyor booms
• cranes of all types
• small, medium and large excavators
• indexing tables
• ladle turrets
• offshore applications
• robots
• railway bogies
• rotary platforms
• stackers
• solar mirrors
• tunnel boring machines
• wind turbines

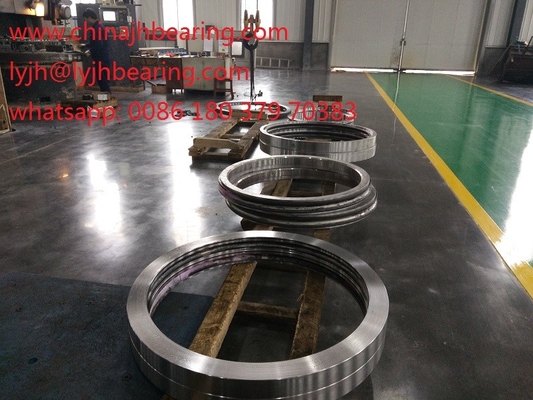

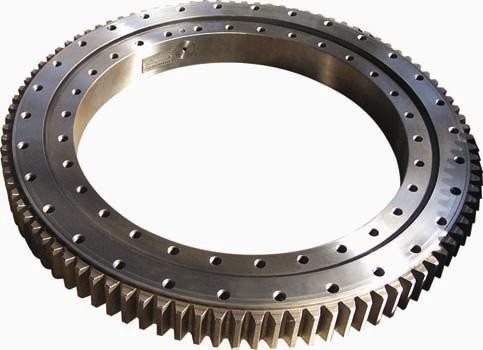

RKS.161.14.0744 Slewing bearing reference picture

China  RKS.161.14.0744  crossed roller Slewing bearing with external gear ,674x838.8x56 mm


   If you want to know  RKS.161.14.0744   bearing  more, Please send us by e-mail  or call us, We will send the more details. Thanks.
