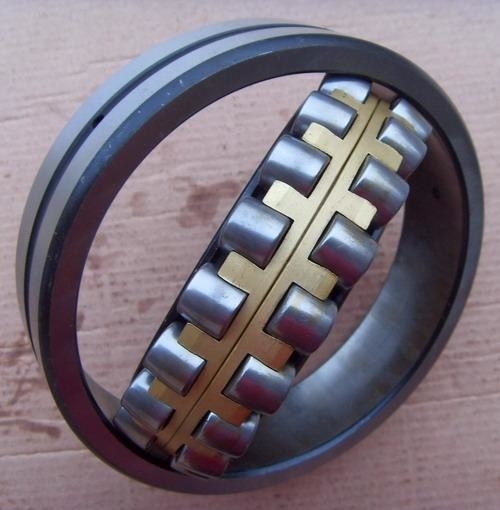

23938CC/W33 23938CAK/W33 spherical roller bearing 190x260x52 mm

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

23938CC/W33 23938CAK/W33 spherical roller bearing 190x260x52 mm

China 23938CC/W33 23938CAK/W33 spherical roller bearing 190x260x52 mm supplier
23938CC/W33 23938CAK/W33 spherical roller bearing 190x260x52 mm supplier 23938CC/W33 23938CAK/W33 spherical roller bearing 190x260x52 mm supplier 23938CC/W33 23938CAK/W33 spherical roller bearing 190x260x52 mm supplier 23938CC/W33 23938CAK/W33 spherical roller bearing 190x260x52 mm supplier

Large Image :  23938CC/W33 23938CAK/W33 spherical roller bearing 190x260x52 mm

Product Details:

Place of Origin: China
Brand Name: JHB or your required
Certification: ISO9001:2008
Model Number: 23938CC/W33 23938CAK/W33

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 1-1000USD/negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: in stock
Payment Terms: T/T,L/C, Western Union
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Material: GCr15SiMn Cage Material: Steel Or Brass Available
Package: Strong Wooden Case Quality Guarantee: One Year

23938CC/W33 23938CAK/W33 spherical roller bearing ,190x260x52 mm used for mine equipment



23938CC/W33 23938CAK/W33      spherical roller Bearing

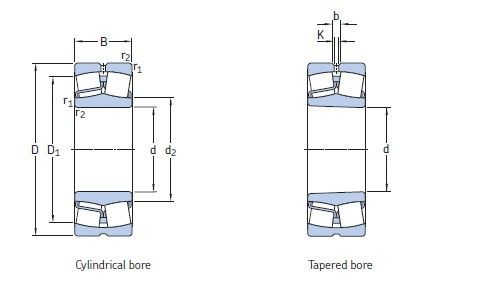

23938CA/W33  Spherical roller bearing with cylindrical bore

 23938CAK/W33 spherical roller bearing with tapered bore

Dimensions - d (inside diameter) 190 mm

Dimensions - D (outside diameter) 260 mm

Dimensions - B (width) 52  mm

 Rolling Body:  Roller Bearings

Separation:  Yes

The Number of Rows:  Double

 Cage Material:  Brass Cage, Steel Cage,

 Precision Rating:  P0 P6 P5

Seals Type:  Open

OEM Service:  Acceptable

Sample:  Available

Certification:  ISO9001:2000

Export Markets:  Global





23938CC/W33 23938CAK/W33   Spherical roller bearings are self-aligning bearings that are consequently insensitive to misalignment of the shaft, they have two rows of rollers so they are able to carry heavy radial loads, all sizes are available with cylindrical or tapered bores.

 We cooperate with DHL,TNT,FEDEX,UPS,EMS, and shipping agency etc.They guarantee to meet your needs in terms of time and money, ,



we ship worldwide. We had a lot of bearing in our warehouse, if we have no stock, the manufacture time:30 days.

23938CC/W33 23938CAK/W33   the Bearing inner ring and outer ring forging material:GCr15SiMn ,GCr15, Chrome steel

The  Inner ring and outer ring hardness: 58-62HRC

The  23938CC/W33 23938CAK/W33    bearing    manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.

The package: standard export wooden case or carton boxes.





Basic Dimensions(mm)

Bearing Designations

Precision Rating

basic load rating(KN)

Limiting Speed

(r/min)

Weight

(KGS)

d

D

B

Cr

Cor

Grease

oil

190

260

52

23938CC/W33 23938CAK/W33

 P0 P6 P5

414

800

2200

2600

8



For 23938CC/W33 23938CAK/W33 Spherical roller bearings will used for following :


   • Metallurgical
• Mining and construction
• Fluid machinery
• Material handling
• Industrial gearboxes
Textile industry
Railways
Energy





If you interesting the 23938CC/W33 23938CAK/W33 spherical roller bearing , Please contact us :
