24032CC/W33 24032CCK30/W33 spherical roller bearing ,160x240x80 mm, chrome steel

I'm Online Chat Now

24032CC/W33 24032CCK30/W33 spherical roller bearing ,160x240x80 mm, chrome steel

China 24032CC/W33 24032CCK30/W33 spherical roller bearing ,160x240x80 mm, chrome steel supplier

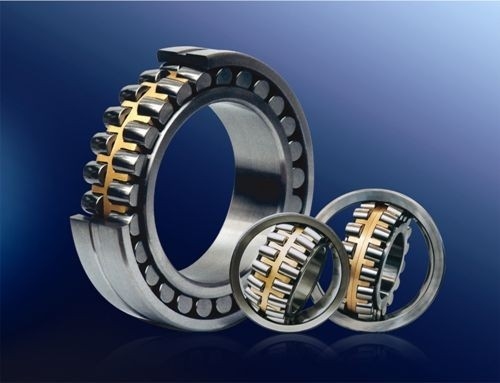

Large Image :  24032CC/W33 24032CCK30/W33 spherical roller bearing ,160x240x80 mm, chrome steel

Product Details:

Place of Origin: China
Brand Name: JHB or your required
Certification: ISO9001:2008
Model Number: 24032CC/W33 24032CCK30/W33

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 1-1000USD/negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: in stock
Payment Terms: T/T,L/C
Supply Ability: 1000 pcs/month
Detailed Product Description

24032CC/W33 24032CCK30/W33  SKF spherical roller Bearing

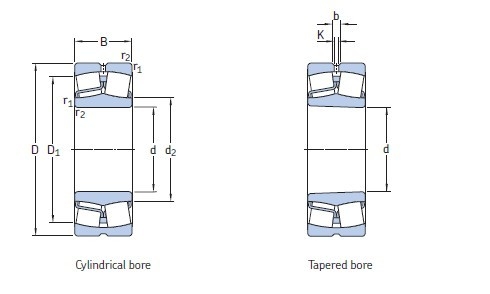

24032CC/W33   Spherical roller bearing with cylindrical bore

 24032CCK30/W33  spherical roller bearing with tapered bore

Dimensions - d (inside diameter) 160 mm

Dimensions - D (outside diameter) 240 mm

Dimensions - B (width) 80  mm

 Rolling Body:  Roller Bearings

Separation:  Yes

The Number of Rows:  Double

 Cage Material:  Brass Cage, Steel Cage,

 Precision Rating:  P0 P6 P5

Seals Type:  Open

OEM Service:  Acceptable

Sample:  Available

Certification:  ISO9001:2000

Export Markets:  Global

24032CC/W33 24032CCK30/W33  Spherical roller bearings are self-aligning bearings that are consequently insensitive to misalignment of the shaft, they have two rows of rollers so they are able to carry heavy radial loads, all sizes are available with cylindrical or tapered bores.

 We cooperate with DHL,TNT,FEDEX,UPS,EMS, and shipping agency etc.They guarantee to meet your needs in terms of time and money, , YES, we ship worldwide. We had a lot of bearing in our warehouse, if we have no stock, the manufacture time:5-10 days.

24032CC/W33 24032CCK30/W33   the Bearing inner ring and outer ring forging material:GCr15SiMn ,GCr15, Chrome steel

The  Inner ring and outer ring hardness: 58-62HRC

The  24032CC/W33 24032CCK30/W33  bearing    manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.

The package: standard export wooden case or carton boxes.



Basic Dimensions(mm)

Bearing Designations

Precision Rating

basic load rating(KN)

Limiting Speed

(r/min)

Weight

(KGS)

d

D

B

Cr

Cor

Grease

oil

160

240

80

24032CC/W33 24032CCK30/W33

 P0 P6 P5

75

1200

1700

2400

13


   If you want to know  24032CC/W33 24032CCK30/W33 bearing  more, Please send us by e-mail  or call us, We will send the more details. Thanks.
