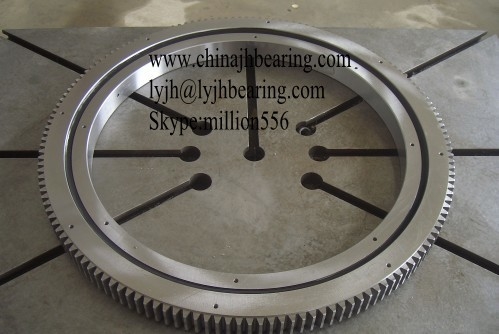

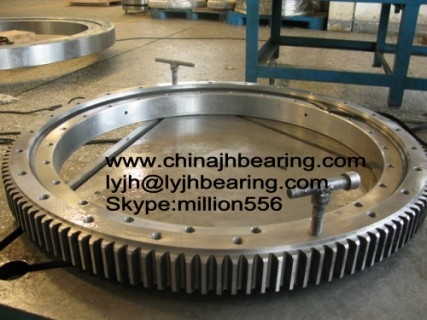

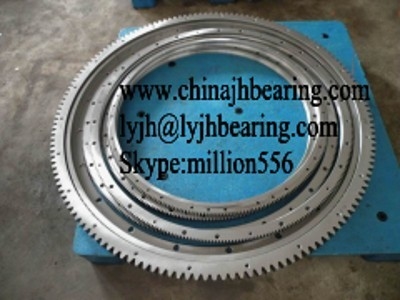

061.25.1120.301.11.1523 four point contact ball slewing bearing with external gear ,1013X1278X79mm
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | 42CrMo OR 50Mn | Lubrication: | Grease Or Oil |
|---|---|---|---|
| Package: | Standard Wooden Case | Seal: | With Seal |
| Application: | General Mechanical Engineering | Quality Guarantee: | One Year |
061.25.1120.301.11.1523 four point contact ball slewing bearing with external gear 1013X1278X79mm
We/JinHang Precision slewing bearings can be divided into the following types according to their structure as single row four point contact ball slewing bearing,single row crossed roller slewing bearing,double row different ball diameter slewing bearing,three row cylindrical roller bearing,ball and roller combination slewing bearing.These types of the bearing can be further divided in to bearings without gears/teeth, bearings with external teeth/internal teeth. We also offer pinion /shaft/lubrication/other parts.So if you interesting them, Please contact us.
061.25.1120.301.11.1523 slewing bearing parameter:
| Turntable bearing type | 061.25.1120.301.11.1523 |
| Boundary dimension | 1013X1278X79mm |
| Outer dia: | 1278 mm |
| Inner dia: | 1013 mm |
| Total height | 79 mm |
| Radial clearance | 0.15-0.35 |
| Material | 42CrMo or 50Mn |
| Delivery time | Within 30 days |
061.25.1120.301.11.1523 slewing bearing external teeth parameter:
No.of teeth: 125
Module: 10
Press angle:20 degree
061.25.1120.301.11.1523 slewing ring feature:
Can support high dynamic loads,transmitting axial and radial forces simultaneously as well as the resulting tilting moments.
061.25.1120.301.11.1523 slewing bearing application:
Hoisting,mechanical handle and general mechanical engineering etc.
061.25.1120.301.11.1523 turntable bearing load :
Can bear axial load,radial load and tilting moments.
When you choosed 061.25.1120.301.11.1523 slewing ring, You need to know the data:
1.Load
2.The percentage of collective loads with respective time
3.Speed or number of movements,that is the angle rotated within the time unit
4.Circumferential forces transmitted by the gear
5.Bearing boundary dimension
6.Other operating conditions
If you want to know the 061.25.1120.301.11.1523 mounting hole information:
Please contact us:
JinHang Precision Bearing Co.,Ltd
www.chinajhbearing.com
www.lyjhbearing.com
Address: Yiyang Bearing Industry Zone, Luoyang City, China 47100
Mob:0086 180 379 70383
Fax:0086 379 65199160
E-mail:lyjh@lyjhbearing.com lyjhbearing@gmail.com
Whatsapp:0086 18037970383
Skype:million556
QQ:1816532220
