quote 012.75.3150 slewing bearing price,3376x2922x174 mm
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P5 P6 | Seals Type: | With Seal |
|---|---|---|---|
| Number Of Row: | Single Row |
We/JinHang Precision bearing Co.,LTD can manufacutre the large-size slewing bearing,
The slewing bearing structure including signel row four point contact ball slewing bearing, doulbe row four point contact ball slewing bearing, double row different diameter ball slewing bearing, ball and roller combined slewing bearing and tri-row cylindrical roller combined slewing bearing etc. Above mentioned slewing bearings can also be divided into different structures of no gear type, external gear type and internal gear type as per if exist gear and gear teeth distributing position. Also we can accept the customer’s required technical data.

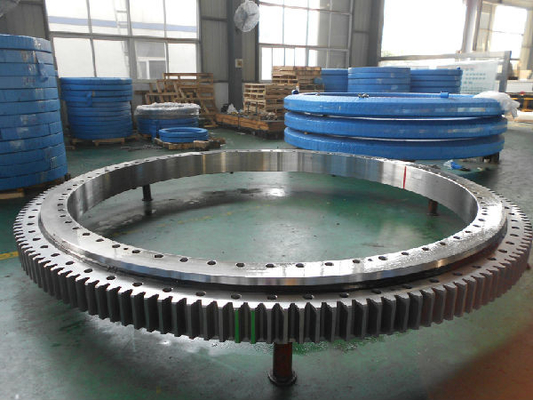

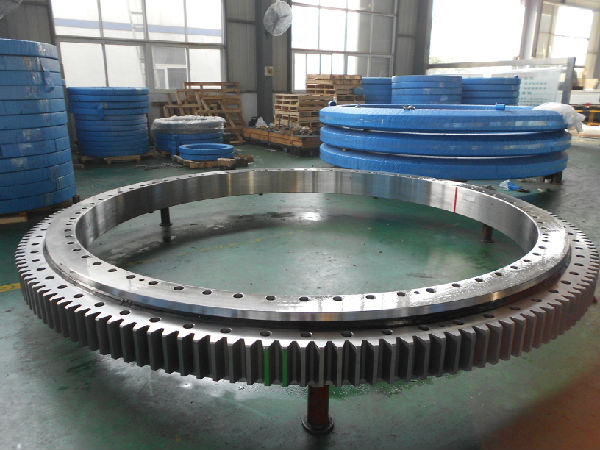

China slewing bearing code 012.75.3150 four point contact ball slewing bearing with external gear/teeth description as following:
Description:012.75.3150 slewing bearing
Bearing type:012.75.3150 slewing ring, 012.75.3150 turntable bearing, 012.75.3150 four point contact ball slewing bearing,
Dimension(ODXIDXH):3376x2922x174 mm
Outer diameter(OD):3376 mm
Inner diameter(ID):2922 mm
Width/Height/(H): 174 mm

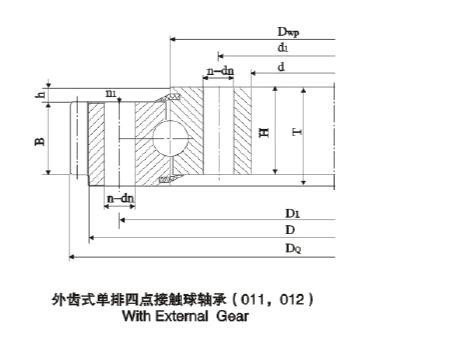

012.75.3150 slewing bearing with gear parameter as following:
Module(m)::22
Rolling:ball
Package: Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case.
The delivery time: 20-30 days
Service: Technology communicate with engineer, and if you need the assembly drawing,we can send to you.
If you want to know more, please contact us as follows:
JinHang Precision Bearing Co.,Ltd
www.chinajhbearing.com www.lyjhbearing.com
E-mail: lyjh@lyjhbearing.com sales@lyjhbearing.com
lyjhbearing@gmail.com
Skype: million556
