Four point contact ball slewing bearing 010.35.440 without gear/teeth 550x320x85 MM,50Mn material

 We/JinHang Precision bearing offer ball slewing bearing,roller slewing bearing,ball and roller combination slewing bearing with gear or without gear/teeth available. Also if you need to choose the right bearing type, We can offer the technology support to help you get the right bearing dimension.

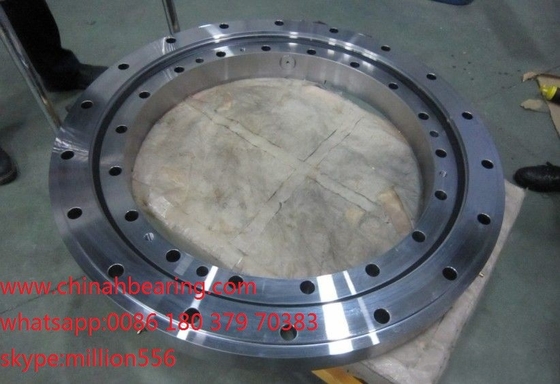

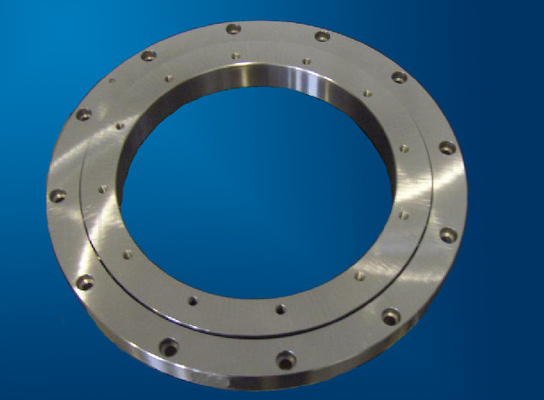

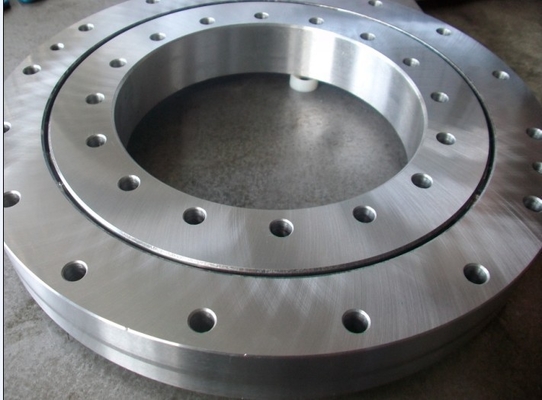

Four point contact ball slewing bearing 010.35.440 without gear/teeth
Slewing bearing 010.35.440 the dimension:550x320x85mm





Name	4 point contact ball slewing bearing 010.35.440
Boundary dimension	550x320x85 MM
Outer dia:	550 mm
Inner dia:	320 mm
Height:	85 mm
Radial clearance	0.05-0.2 mm
Rolling	Ball
Material	50Mn
The delivery time	25 days after getting the order
application	Mining machine equipment



For Slewing bearing 010.35.440 material:

50Mn is generally used in four point contact ball slewing bearing without gear/teeth,the surface quenching treatment of the raceway.the raceway hardness can reach to HRC55-60. So if you have any question, Please contact us via: lyjh@lyjhbearing.com



Swivel bearing 010.35.440 of rolling element:

The material of rolling element :GCr15 or GCr15SiMn from LYC bearing group.

Swing ring 010.35.440 with double seal material is made of NBR.
Before installing the bearing010.35.440 , the bearing surfaces and contact areas should be clearned,remove oil,burrs and strong paints,etc.

The soft zone between the begining and end of the hardened region of the raceway is identified by punched “s” which should be positioned outside the main load carrying areas.

The package :standard wooden case
