101DBS410y slewing bearings 1300x1014x100 mm for construction machinery
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P5 P6 P0 | Seals Type: | With Seal |
|---|---|---|---|
| Number Of Row: | Single Row |
NSK 101DBS410y slewing bearings 1300x1014x100 mm for construction machinery
Type: DBS inner gear series slewing bearings for construction machinery.
Dimension: 1300x1014x100 mm
Weight: 300KGS Original: made in JAPAN
The technical datasheet for NSK bearing 101DBS410y as follows:
|
Manufacture |
JinHang Precision Bearing Co.,LTD |
|
Description |
101DBS410y bearing |
|
Bearing name |
101DBS410y slewing bearing 101DBS410y slewing ring 101DBS410y turntable bearing 101DBS410y four point contact ball slewing bearing |
|
Dimension(ODXIDXH) |
1300x1014x100 mm |
|
Outer diameter(OD) |
1300 mm |
|
Inner diameter(ID) |
1014mm |
|
Width/Height/(H) |
100mm |
|
Gear teech P |
1030mm |
|
Gear teeth m |
10 |
|
Gear teeth Z |
103 |
|
weight |
300kgs |
|
Material |
42CrMo,42CrMo4V,50Mn |
|
Rolling |
ball |
|
Package |
Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case. |
|
The delivery time |
20-30 days |
|
Serive |
Technology communicate with engineer, and if you need the assembly drawing,we can send to you |
|
Contact us |
www.chinajhbearing.com www.lyjhbearing.com E-mail: lyjh@lyjhbearing.com lyjhbearing@gmail.com Skype:million556 |
NSK 101DBS410y slewing bearings are widely used for constructions and industrial chineries,such as drive shovels, crane vehicles, thus to simplify the machine’s structure and maintenance.
The characteristic properties of 101DBS410y slewing bearing are:
one bearing itself can accommodate axial loads, couple loads and radical loads
mounting holes or bolts on bearing rings make the bearing mounting very easy;
bearings are pre-greased in manufacture factory and can be re-lubricated by grease holes.

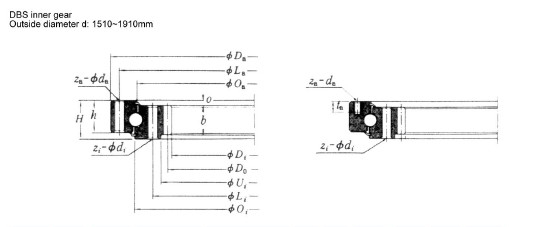

101DBS410y Detail bearing designations and drawings are illustrated in bearing table, please contact us for further information.
Shipping term:TNT,FEDEX,DHL UPS Express or by sea or by air or your rquired

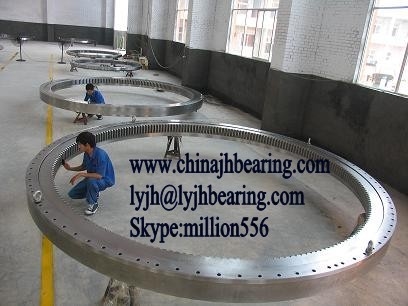

The bearing 101DBS410y Reference pictures as following:
JinHang Precision Bearing mainly export high quantities 101DBS410y Slewing Bearing and relative products, we had owned advanced CNC Machine to manufacture them.From the forging material to Bearing assembly ,we had performance ISO Quality system. Every process, we had make the note and keep them. Also, our engineer can supply the technolgoy communication and guide. If you want to know the 101DBS410y Slewing ring more, Please contact us as follow,Thanks for your trust!
Contact us:
JinHang Precision bearing Co.,LTD
E-mail: lyjh@lyjhbearing.com
lyjhbearing@gmail.com
sales@lyjhbearing.com
Skype:milliom556
MSN:lyjhbearing@hotmail.com
