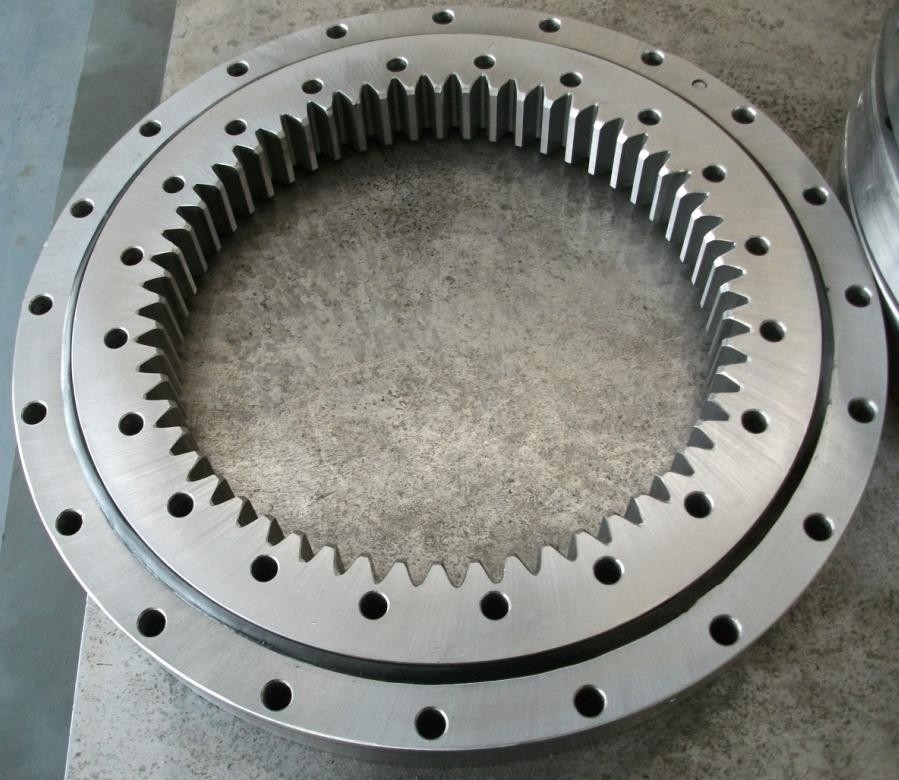

HS6-33N1Z slewing bearing dimension,HS6-33N1Z slewing ring with internal teeth,
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P5 P6 P0 | Seals Type: | With Seal |
|---|---|---|---|
| Number Of Row: | Single Row |
The bearing HS6-33N1Z bearing,HS6-33N1Z slewing bearing,HS6-33N1Z slewing ring,HS6-33N1Z turntable bearing description as follows:
• Bearing type: HS6-33N1Z bearing,HS6-33N1Z slewing bearing,
• HS6-33N1Z slewing ring,HS6-33N1Z turntable bearing
• Structure:four point contact ball slewing bearing with internal gear
• Brand Name: JHB or OEM Required
• Bore Size: 29.13 inch size
• Outside Diameter: 37.4 inch size
• Height:2.2 inch size
• Gear Options: with gear/with teeth
• Seals Type: yes
• Lubrication:grease
• Bearing mark: Brand+HS6-33N1Z Or your requirement
• Place of Origin: LuoYang, China (Mainland)
• Delivery Time: 20-30 days
• Material: 50Mn,42CrMo
• The package: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case
• Payment: T/T or L/C
HS6-33N1Z slewing bearing Specifications
1. High precision: P5,P6,P0
2. Low noise
3. Long serive life
4. short delivery time
5. OEM service provided
6. Processing with supplied drawings

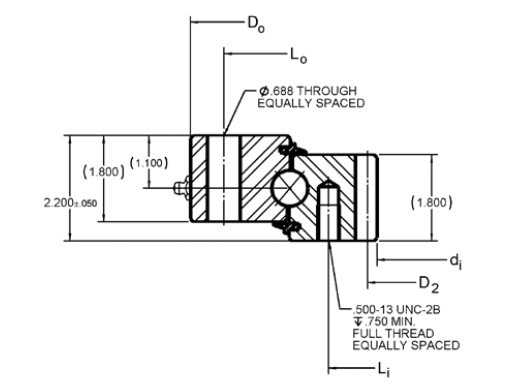

The bearing HS6-33N1Z bearing,HS6-33N1Z slewing bearing,HS6-33N1Z slewing ring,HS6-33N1Z turntable bearing dimension and rough drawing as follows:
|
Bearing type |
Boundary dimension |
Weight( Lbs) |
||
|
Outer diameter Do (In) |
Inner diameter di(In) |
Height(In) |
||
|
HS6-33N1Z |
37.4 |
29.13 |
2.2 |
205 |
HS6-33N1Z bearings have been used successfully in a variety of light to medium duty applications including:cranes,Aerial lifts,digger demicks,chute swivels,lift truck rotators,industrical turntable.
JinHang Precision Bearing mainly export high quantities HS6-33N1Z Slewing Bearing and relative products, we have huge stocks for HS6-33N1Z slewing ring and relative items, we supply high quality HS6-33N1Z four point contact ball Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in HS6-33N1Z turntable bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly.
JinHang Precision Bearing Co.,Ltd
E-mail: lyjh@lyjhbearing.com or lyjhbearing@gmail.com
MSN:lyjhbearing@hotmail.com
Skype: million556
