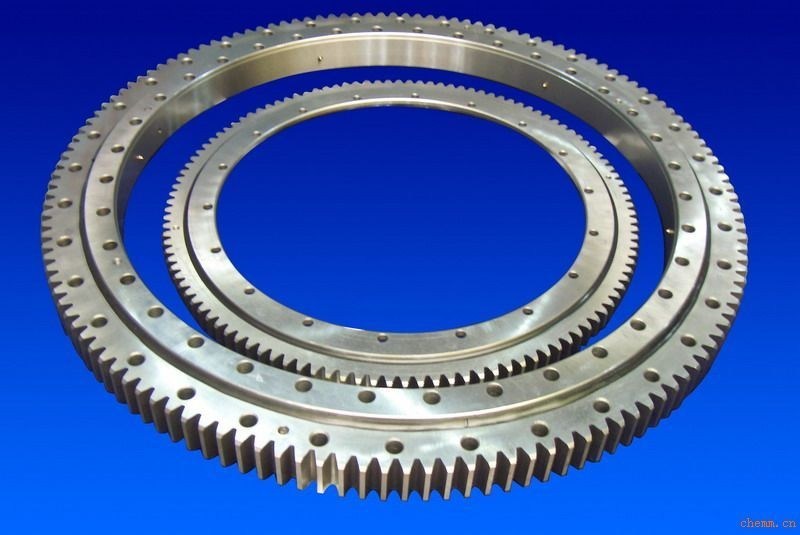

VLA201094N slewing Bearing, VLA201094N Slewing ring, INA light series with external teeth
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P5 P6 P0 | Seals Type: | Double Seal |
|---|---|---|---|
| Number Of Row: | Single Row |
VLA201094N Bearing,VLA201094N Slewing ring, VLA201094N slewing bearing Specifications

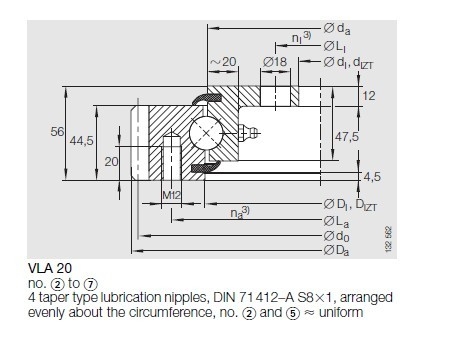

Four point contact ball slewing bearing VLA201094N Dimension: 984x1198.1x56 mm
1.High load-carrying capability
2.Ability to accept the combined loads;axial ,radial and tilting moments
3.Flexibility with product design.
4.42CrMo/50Mn material be used to make slewing ring bearing
VA mean: Four point contact bearing, external teeth, sealed, selectable internal clearance, lubrication nipple
on circumference of untoothed ring
VLA201094N Bearing, VLA201094N Slewing ring, VLA201094N slewing bearing technology data as follow:
|
Designation |
Weight (kgs) |
Dimension (mm) |
Gear teeth |
Basic load ratings (KN) |
|||||||
|
Da |
di |
H |
Do |
m |
z |
Axial Ca |
Axial Coa |
Radial Cr |
Radial Cor |
||
|
VLA 20 0414 N |
29.5 |
503.3 |
304 |
56 |
495 |
5 |
99 |
169 |
295 |
111 |
110 |
|
VLA 20 0544 N |
41.5 |
640.3 |
434 |
56 |
630 |
6 |
105 |
188 |
385 |
123 |
145 |
|
VLA 20 0644 N |
48.5 |
742.3 |
534 |
56 |
732 |
6 |
122 |
200 |
455 |
131 |
171 |
|
VLA 20 0744 N |
54.5 |
838.1 |
634 |
56 |
828 |
6 |
138 |
211 |
530 |
138 |
198 |
|
VLA 20 0844 N |
65.5 |
950.1 |
734 |
56 |
936 |
8 |
117 |
222 |
600 |
145 |
224 |
|
VLA 20 0944 N |
71.5 |
1046.1 |
834 |
56 |
1032 |
8 |
129 |
231 |
670 |
151 |
250 |
|
VLA 20 1094 N |
83.5 |
1198.1 |
984 |
56 |
1184 |
8 |
148 |
244 |
770 |
160 |
290 |
VLA201094N Bearing,VLA201094N Slewing ring, VLA201094N slewing bearing Suffix and Description:
H:Hardened gear teeth on bearing ring
N:Normalised gear teeth on bearing ring
V:Quenched and tempered gear teeth on bearing ring
VSP:Bearing with preload
ZT:Centring on inner and outer rings
RR:Corrosion-resistant design with INA special plating Corrotect
RL0, 1, 2, 3: Restricted internal clearance
VLA201094N Bearing, VLA201094N Slewing ring, VLA201094N slewing bearing Application:
Foundry operation
Construction machinery (e.g. crane, dragline excavator, vibratory roller)
Vehicles and vehicle attachments (e.g. lorry-mounted crane)
Fork lift trucks and fork lift truck attachments
Sewage treatment plant
Wind power equipment
Robots
Antennae
Machine tools
Measuring equipment
Medical equipment
JinHang Precision Bearing mainly export high quantities VLA201094N Slewing Bearing and relative products, we have huge stocks for VLA201094N slewing ring and relative items, we supply high quality VLA201094N four point contact ball Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in VLA201094N Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly.
