Home ProductsFour point contact ball slewing bearing

RKS.060.25.1314 four point contact ball slewing ring bearings factory from China supplier,1229x1399x68mm

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

RKS.060.25.1314 four point contact ball slewing ring bearings factory from China supplier,1229x1399x68mm

China RKS.060.25.1314 four point contact ball slewing ring bearings factory from China supplier,1229x1399x68mm supplier
RKS.060.25.1314 four point contact ball slewing ring bearings factory from China supplier,1229x1399x68mm supplier RKS.060.25.1314 four point contact ball slewing ring bearings factory from China supplier,1229x1399x68mm supplier RKS.060.25.1314 four point contact ball slewing ring bearings factory from China supplier,1229x1399x68mm supplier RKS.060.25.1314 four point contact ball slewing ring bearings factory from China supplier,1229x1399x68mm supplier RKS.060.25.1314 four point contact ball slewing ring bearings factory from China supplier,1229x1399x68mm supplier

Large Image :  RKS.060.25.1314 four point contact ball slewing ring bearings factory from China supplier,1229x1399x68mm

Product Details:

Place of Origin: China
Brand Name: JHB or your required
Certification: ISO9001:2008
Model Number: RKS.060.25.1314

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 1-1000USD/negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: 25-35 days
Payment Terms: T/T,L/C, Western Union
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Precision Rating: P0 P6 P5 Seals Type: Doulbe Sealed
Material: 50Mn 42CrMo

RKS.060.25.1314  SKF code    Single row four-point contact ball slewing bearings

RKS.060.25.1314  slewing ring bearings,1229x1399x68mm, without gear,JBT10471 standard

Dimensions - d (inside diameter): 1229 mm

Dimensions - D (outside diameter):1399 mm

Dimensions - B (width): 68mm

     RKS.060.25.1314 four point contact ball slewing ring bearings factory from China supplier,1229x1399x68mm

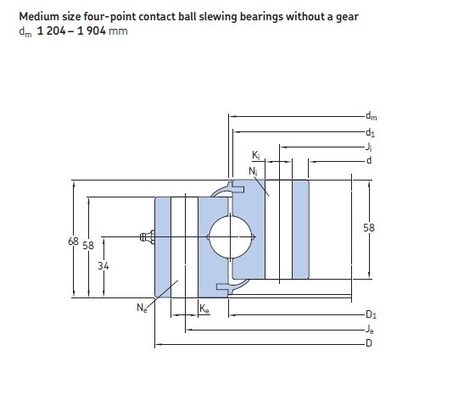

Basic Dimensions(mm)

Bearing Designations

basic load rating(KN)

Weight

d

D

B

C

Co

(KGS)

1229

1399

68

RKS.060.25.1314

526

4380

132

RKS.060.25.1314   Single row four-point contact ball slewing bearings are simple in design. They are particularly versatile and offer many advantages for applications where there are light-tomedium axial, radial and moment loads.
RKS.060.25.1314 The outer ring and inner ring material: 42CrMo, 42CrMo4V,50Mn in accordance with EN 10083
Ball material: 100Cr6 bearing steel,in accordance with EN ISO683
Geart teeth accuracy grade: in accordance with ISO1328
Oil or grease material:Lithium grease
The inner ring and outer ring Material  hardness: quenching and tempering: HB229~269
Raceway case hardening :HRC55~62
RKS.060.25.1314    The package,: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case. we can assure that the bearing shipping by sea or by air.
The delivery time:25-35 days



Generally, RKS.060.25.1314  slewing bearings are large-size rolling bearings that can accommodate axial, radial and moment loads acting either singly or in combination and in any direction. They can perform both slewing (oscillating) movements as well as rotational movements.
Basically, RKS.060.25.1314   slewing bearing consists of an inner ring , an outer ring and rolling elements−balls or cylindrical rollers−that are separated by polyamide spacers .The rings, one of which usually incorporates a gear , are provided with holes to accommodate attachment bolts. The holes may be threaded.


Generally, only the raceways in the rings are hardened and precision- ground. Integral seals  made of acrylonitrile- butadiene rubber (NBR) keep the lubricant in, and contaminants out of the bearing.



RKS.060.25.1314  Slewing bearings perform extremely well in a variety of applications such as:
• access platforms
• bucket wheel excavators
• conveyor booms
• cranes of all types
• small, medium and large excavators
• indexing tables
• ladle turrets
• offshore applications
• robots
• railway bogies
• rotary platforms
• stackers
• solar mirrors
• tunnel boring machines
• wind turbines

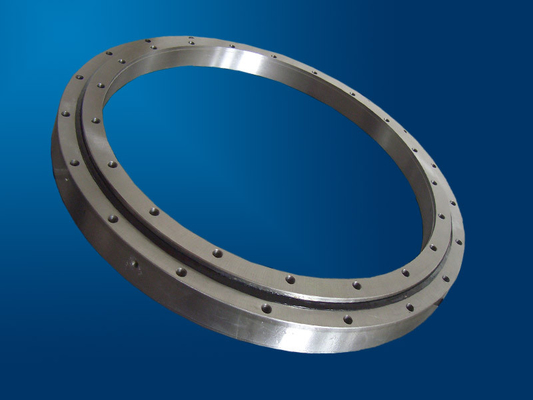

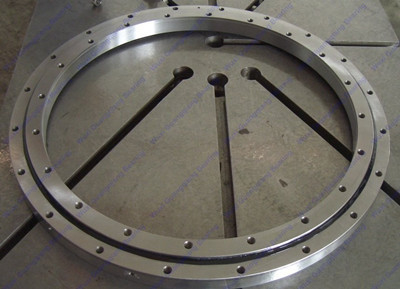

RKS.060.25.1314 Slewing bearings  reference picture:

RKS.060.25.1314 four point contact ball slewing ring bearings factory from China supplier,1229x1399x68mm
