Home ProductsFour point contact ball slewing bearing

RKS.22 0641 slewing bearings 546x748x56mm China factory,offer price and delivery time application

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

RKS.22 0641 slewing bearings 546x748x56mm China factory,offer price and delivery time application

China RKS.22 0641  slewing bearings 546x748x56mm China factory,offer price and delivery time application supplier
RKS.22 0641  slewing bearings 546x748x56mm China factory,offer price and delivery time application supplier RKS.22 0641  slewing bearings 546x748x56mm China factory,offer price and delivery time application supplier RKS.22 0641  slewing bearings 546x748x56mm China factory,offer price and delivery time application supplier RKS.22 0641  slewing bearings 546x748x56mm China factory,offer price and delivery time application supplier

Large Image :  RKS.22 0641 slewing bearings 546x748x56mm China factory,offer price and delivery time application

Product Details:

Place of Origin: China
Brand Name: JHB or your required
Certification: ISO9001:2008
Model Number: RKS.22 0641

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 1-1000USD/negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: 25-35 days
Payment Terms: T/T,, Western Union
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Precision Rating: P0 P6 P5 Seals Type: Double Seal
Material: 50Mn 42CrMo

RKS.22 0641 SKF code    Single row four-point contact ball slewing bearings

Dimensions - d (inside diameter): 546 mm

Dimensions - D (outside diameter):748 mm

Dimensions - B (width): 56 mm

     RKS.22 0641  slewing bearings 546x748x56mm China factory,offer price and delivery time application

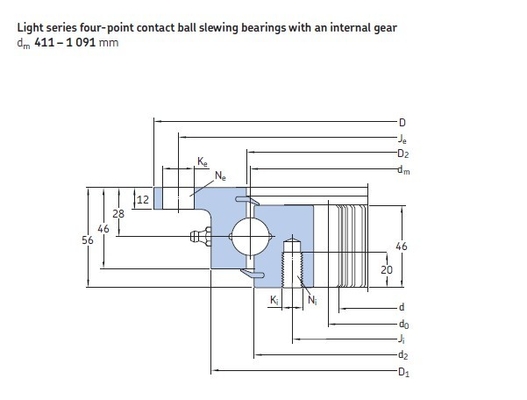

Basic Dimensions(mm)

Bearing Designations

Gear  paremeter

basic load rating(KN)

Weight

d

D

B

Dia(mm)

 m

z

C

Co

(KGS)

546

748

56

RKS.22 0641

558

6

93

200

440

48



RKS.22 0641  Single row four-point contact ball slewing bearings are simple in design. They are particularly versatile and offer many advantages for applications where there are light-tomedium axial, radial and moment loads.
RKS.22 0641    The outer ring and inner ring material: 42CrMo, 42CrMo4V,50Mn in accordance with EN 10083
Ball material: 100Cr6 bearing steel,in accordance with EN ISO683
Geart teeth accuracy grade: in accordance with ISO1328
Oil or grease material:Lithium grease
The inner ring and outer ring Material  hardness: quenching and tempering: HB229~269
Raceway case hardening :HRC55~62
RKS.22 0641     The package,: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case. we can assure that the bearing shipping by sea or by air.
The delivery time:25-35 days

Generally, RKS.22 0641   slewing bearings are large-size rolling bearings that can accommodate axial, radial and moment loads acting either singly or in combination and in any direction. They can perform both slewing (oscillating) movements as well as rotational movements.
Basically, a slewing bearing consists of an inner ring , an outer ring and rolling elements−balls or cylindrical rollers−that are separated by polyamide spacers .The rings, one of which usually incorporates a gear , are provided with holes to accommodate attachment bolts. The holes may be threaded.
Generally, only the raceways in the rings are hardened and precision- ground. Integral seals  made of acrylonitrile- butadiene rubber (NBR) keep the lubricant in, and contaminants out of the bearing.

RKS.22 0641    Slewing bearings perform extremely well in a variety of applications such as:
• access platforms
• bucket wheel excavators
• conveyor booms
• cranes of all types
• small, medium and large excavators
• indexing tables
• ladle turrets
• offshore applications
• robots
• railway bogies
• rotary platforms
• stackers
• solar mirrors
• tunnel boring machines
• wind turbines

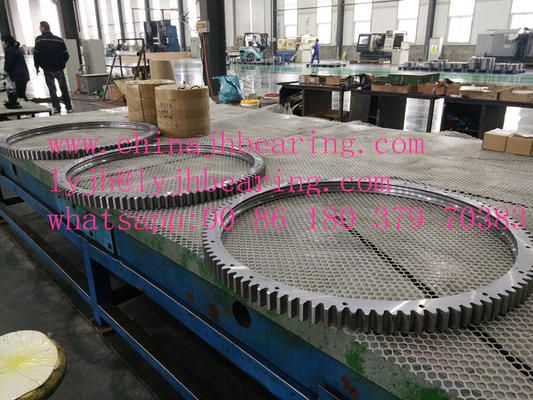

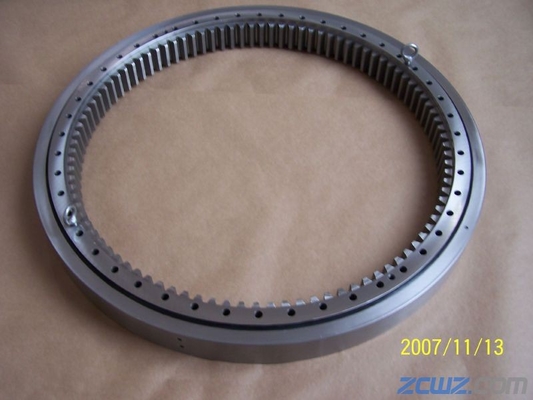

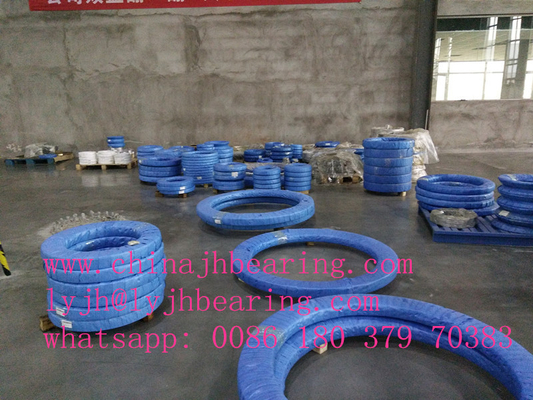

The bearing picture as follows:

RKS.22 0641  slewing bearings 546x748x56mm China factory,offer price and delivery time application
   If you want to know  RKS.22 0641   bearing  more, Please send us by e-mail  or call us, We will send the more details. Thanks.
