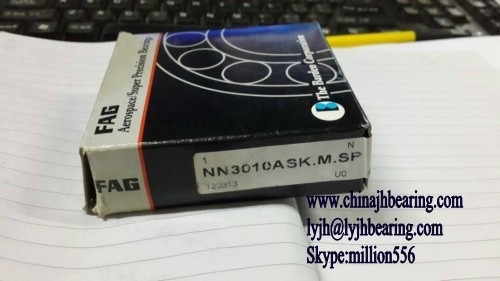

NN3010-AS-K-M-SP Cylindrical roller Bearing,50X80X23mm,SP precision grade,two row roller

: Large Image : NN3010-AS-K-M-SP Cylindrical roller Bearing,50X80X23mm,SP precision grade,two row roller

Product Details:

Place of Origin:	Germany
Brand Name:	FAG or OEM
Certification:	Quality certificate
Model Number:	NN3010-AS-K-M-SP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 8 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5	Seals Type:	No Seal
Number Of Row:	Double Row

FAG bearings NN3010-AS-K-M-SP
d: 50mm D: 80mm B: 23mm
Type:	NN	Cylindrical roller bearing, double row, ribs on inner ring, outer ring ribless
Dimension series:	30	Medium series
Dimension(dxDxb)		50x80x23mm
External geometry	AS	Lubrication groove and lubrication holes in outer ring of series NN30
Tapered bore	K	Tapered bore(taper 1:12)
Cages:	M	Brass cage,guided by rollers
Precision:	SP	Special precision

NN3010-AS-K-M-SP High Precision roller Bearing, N1014KM1SP Machine tool main spindle bearing

NN3010-AS-K-M-SP FAG High Speed roller Bearing, roller Bearing is Super precision cylindrical roller bearing with 1:12 tapered bore and brass cage, bearing is SP quality and made in Germany

Item: NN3010-AS-K-M-SP FAG Cylindrical roller Bearing,FAG machine tool main spindle bearing

Type: super precision cylindrical roller Bearing

rolling: roller

Quality: SP Grade

Dimensions: 50mm x80mm x23mm /Metric

ID (inner diameter)/Bore: 50mm

OD (outer diameter): 80mm

Width/Height/thickness: 23mm

Size:50 x 80 x 23mm

Quantity: One Bearing

Dynamic load rating Cr: 57000 N

Static load rating Cor: 80000 N
