bearing manufacture NU 2344 ECMA single row Cylindrical roller bearing, 220x460x145mm

Large Image : bearing manufacture NU 2344 ECMA single row Cylindrical roller bearing, 220x460x145mm

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	ISO9001:2008 or Quality Certificate
Model Number:	NU 2344 ECMA

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 15- 20 days
Payment Terms:	T/T,L/C
Supply Ability:	500 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Single Row

Designation: NU 2344 ECMA

Type: Radial Cylindrical Roller Bearings. Single row, complete. (220X460X145)

The bearing NU 2344 ECMA Principal dimensions:

d:220 mm

D:460 mm

B:145 mm

Basic load ratings:

Dynamic C:2380 kN

Static C0:3450 kN

Mass: 120 kg

Angle ring: ----

Place of Origin: China (Mainland) bearing manufacture

· HS code: 8482500000

· Material: GCr15 GCr15SiMn Chrome steel

· Quality: ISO Standard

· Housing: No

· MOQ: 1 Piece

· Stock: Available

· Lead time: if unavailable ,within 10-20 days

The Bearing Inner ring and outer ring hardness: 58-62HRC

The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.

The package: standard export wooden case or carton boxes

bearing manufacture NU 2344 ECMA single row Cylindrical roller bearing, 220x460x145mm

Basic Dimensions(mm)

Bearing Designations

Bearing ratings (KN)

Weight

Cor

(KGS)

220

460

145

NU 2344 ECMA

2380

3450

120

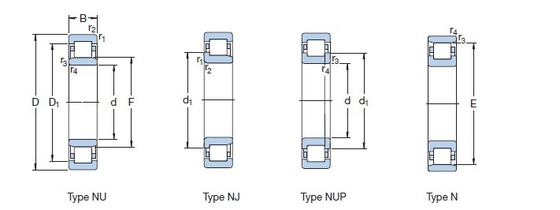

The SKF single row cylindrical roller bearing product list as follows:

Basic Dimensions(mm)			Bearing Designations	Bearing ratings (KN)		Weight
d	D	B		Cr	Cor	(KGS)
220	340	56	NU 1044 MA	495	735	19
220	400	65	NU 244 ECMA	1060	1290	38.5
220	400	65	NJ 244 ECMA	1060	1290	39
220	400	65	NUP 244 ECMA	1060	1290	39.5
220	400	108	NU 2244 ECMA	1570	2280	62.5
220	460	88	NU 344 M	1210	1630	72.5
220	460	88	NJ 344 M	1210	1630	73.5
220	460	145	NU 2344 ECMA	2380	3450	120

Meanwhile,we can supply the bearing as follows:

bearing manufacture NU 2344 ECMA single row Cylindrical roller bearing, 220x460x145mm

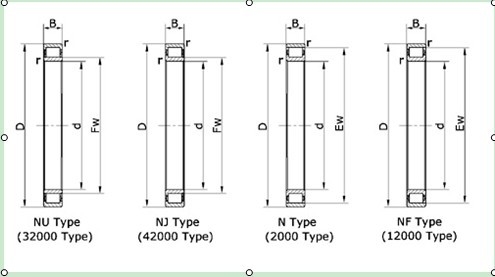

Boundary dimensions						Designations		Mass	Limiting speeds
mm						Current	Original	kg	r/min
d	D	B	Fw	Ew	rmin				Grease	Oil
220	340	56	250	-	3	NU 1044	32144	19.3	1800	2200
220	340	56	250	-	3	NJ 1044	42144	19.6	1800	2200
220	400	65	-	350	4	N 244	2244	36.7	1500	1800
220	400	65	270	-	4	NU 244	32244	35	1500	1800
220	400	65	270	-	4	NJ 244	42244	35.4	1500	1800
220	400	108	259	-	4	NU 2244	32544	62.2	1300	1600
220	400	108	270	-	4	NJ 2244	42544	62.2	1300	1600
220	460	88	284	-	5	NU 344	32344	75.6	1200	1500
220	460	145	284	-	5	NU 2344	32644	114	1000	1300
