Sell SKF bearing code NJ 240 ECMA Cylindrical roller bearings ,NJ 240 ECMA Bearings

All Products

Slewing bearing (624)

Turntable bearing (73)

Cylindrical roller bearing (394)

Rolling mill Bearing (132)

Spherical roller bearing (144)

Tapered roller bearing (103)

Tandem Extruder Bearing (281)

Pinion gear (11)

Machine Parts (115)

crossed roller bearing (214)

YRT Rotary table bearing (39)

Main Spindle Ball Bearing (647)

Thin section ball bearing (157)

Full complement cylindrical roller bearing (172)

Split roller bearing (135)

Spherical roller thrust bearing (102)

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

Sell SKF bearing code NJ 240 ECMA Cylindrical roller bearings ,NJ 240 ECMA Bearings

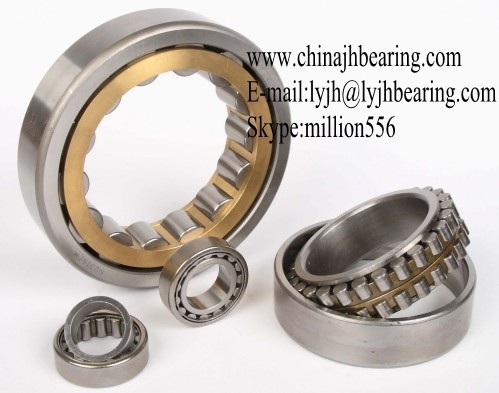

Large Image : Sell SKF bearing code NJ 240 ECMA Cylindrical roller bearings ,NJ 240 ECMA Bearings

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	ISO9001:2008 or Quality Certificate
Model Number:	NJ 240 ECMA

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 15- 20 days
Payment Terms:	T/T,L/C
Supply Ability:	500 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Single Row

Designation: NJ 240 ECMA

Type: Radial Cylindrical Roller Bearings. Single row, EC-design and SU bearings. Also angle rings. Complete. (200X360X58)

Principal dimensions:

d:200 mm

D:360 mm

B:58 mm

Basic load ratings:

Dynamic C:850 kN

Static C0:1020 kN

Mass:29 kg

Angle ring: HJ 240 EC

Place of Origin: China (Mainland)

· HS code: 8482500000

· Material: GCr15 GCr15SiMn Chrome steel

· Quality: ISO Standard

· Housing: No

· MOQ: 1 Piece

· Stock: Available

· Lead time: if unavailable ,within 10-20 days

The Bearing Inner ring and outer ring hardness: 58-62HRC

The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.

The package: standard export wooden case or carton boxes

Sell SKF bearing code NJ 240 ECMA Cylindrical roller bearings ,NJ 240 ECMA Bearings

Basic Dimensions(mm)

Bearing Designations

Bearing ratings (KN)

Weight

Cor

(KGS)

200

360

NJ 240 ECMA

850

1020

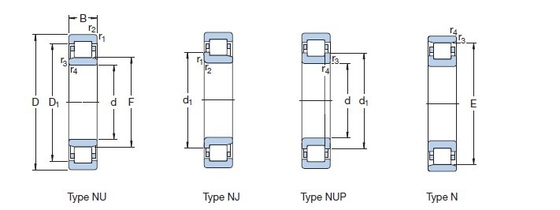

The SKF single row cylindrical roller bearing product list as follows:

Basic Dimensions(mm)			Bearing Designations	Bearing ratings (KN)		Weight
d	D	B		Cr	Cor	(KGS)
200	310	51	NU 1040 MA	380	570	15
200	360	58	NU 240 ECMA	850	1020	28.5
200	360	58	NJ 240 ECMA	850	1020	29
200	360	58	NUP 240 ECMA	850	1020	29.5
200	360	98	NU 2240 ECMA	1370	1800	46
200	420	90	NU 340 ECMA	1230	1630	56
200	420	138	NU 2340 ECMA	1980	2800	97
200	420	135	NJ 2340 ECMA	1980	2800	98

Meanwhile,we can supply the bearing as follows:

Sell SKF bearing code NJ 240 ECMA Cylindrical roller bearings ,NJ 240 ECMA Bearings

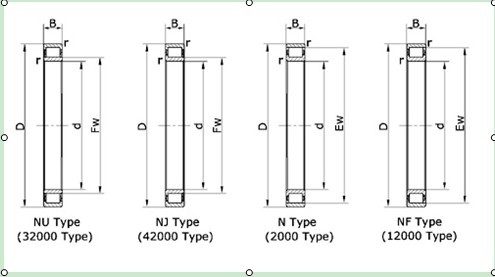

Boundary dimensions						Designations		Mass	Limiting speeds
mm						Current	Original	kg	r/min
d	D	B	Fw	Ew	rmin				Grease	Oil
200	310	51	-	281	2	N 1040	42140	10.2	1900	2400
200	310	51	229	-	2.1	NU 1040	32140	14.3	1900	2400
200	310	51	229	-	2.1	NJ 1040	42140	14.7	1900	2400
200	310	66	229	-	3	NU2040	-	18.5	1900	2400
200	360	58	-	316	4	N 240	2240	26.8	1500	1800
200	360	58	244	-	4	NU 240	32240	26.5	1500	1800
200	360	58	244	-	4	NJ 240	42240	27.1	1500	1800
200	420	138	-	360	4	N 2340	2640	94.5	1200	1500
200	420	165	260	-	5	NU 3340	3032340	118	1200	1500
