NU 2336 ECMA single row cylindrical roller bearing, 180x380x126 mm,NU 2336 ECMA bearing

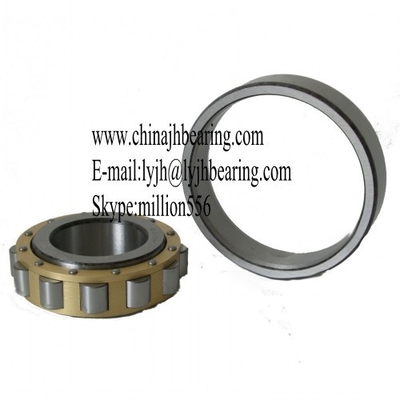

Large Image : NU 2336 ECMA single row cylindrical roller bearing, 180x380x126 mm,NU 2336 ECMA bearing

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	ISO9001:2008 or Quality Certificate
Model Number:	NU 2336 ECMA

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 15- 20 days
Payment Terms:	T/T,L/C
Supply Ability:	500 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Single Row

· Structure: NU 2336 ECMA single row cylindrical roller bearing, 180x380x126 mm,NU 2336 ECMA bearing

           Type: Roller
         ·Brand Name: JHB or your requirement
        · Model Number: NU 2336 ECMA

         ID(inner diameter )/Bore: 180 mm
         OD(outer diameter): 380 mm
         Width/Height/thickness(T):126 mm
· Precision Rating: P0 P6 P5
· Seals Type: Open Type
· Number of Row: One Row
· Place of Origin: China (Mainland)
· Name: single row cylindrical Roller Bearing
· HS code: 8482500000
· Material: GCr15 GCr15SiMn Chrome steel
· Quality: ISO Standard
· Housing: No
· Application: Metallurgy
· MOQ: 1 Piece
· Stock: Available
· Lead time: if unavailable ,within 10-20 days
The Bearing Inner ring and outer ring hardness: 58-62HRC
The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.
The package: standard export wooden case or carton boxes.

NU 2336 ECMA single row cylindrical roller bearing, 180x380x126 mm,NU 2336 ECMA bearing

Basic Dimensions(mm)

Bearing Designations

Bearing ratings (KN)

Weight

Cor

(KGS)

180

380

126

NU 2336 ECMA

1610

2240

The SKF single row cylindrical roller bearing product list as follows:

Basic Dimensions(mm)			Bearing Designations	Bearing ratings (KN)		Weight
d	D	B		Cr	Cor	(KGS)
180	280	46	NU 1036 ML	336	475	11
180	320	52	NU 236 ECMA	720	850	19.5
180	320	52	NJ 236 ECMA	720	850	20
180	320	52	NUP 236 ECMA	720	850	21
180	320	86	NU 2236 ECMA	1100	1430	31.5
180	320	86	NJ 2236 ECMA	1100	1430	32
180	380	75	NU 336 ECM	1020	1290	44
180	380	126	NU 2336 ECMA	1640	2240	72

Meanwhile,we can supply the bearing as follows:

NU 2336 ECMA single row cylindrical roller bearing, 180x380x126 mm,NU 2336 ECMA bearing

Boundary dimensions						Designations		Mass	Limiting speeds
mm						Current	Original	kg	r/min
d	D	B	Fw	Ew	rmin				Grease	Oil
180	280	46	205	-	2.1	NU1036	32136	10.5	1800	2200
180	320	52	-	282	4	N 236	2236	19.7	1700	2000
180	320	52	217	-	4	NU 236	32236	19.2	1700	2000
180	320	52	218	-	4	NJ 236	42236	19.3	1700	2000
180	320	86	215	-	4	NU 2236	32536	30.8	1700	2000
180	320	86	215	-	4	NJ 2236	42536	31.9	1700	2000
180	380	75	-	328	4	N 336	2336	39.6	1500	1800
180	380	75	232	-	4	NU 336	32336	42.8	1500	1800
180	380	75	232	-	4	NJ 336	42336	42.7	1500	1800
180	380	126	232	-	4	NU 2336	32636	77.9	1300	1600
180	380	126	232	-	4	NJ 2336	42636	77.9	1300	1600
