TQO Type M231649DW.610.610D four row tapered roller bearing, 152.4x222.25x174.625 mm

I'm Online Chat Now

TQO Type M231649DW.610.610D four row tapered roller bearing, 152.4x222.25x174.625 mm

China TQO Type M231649DW.610.610D four row tapered roller bearing, 152.4x222.25x174.625 mm supplier

Large Image :  TQO Type M231649DW.610.610D four row tapered roller bearing, 152.4x222.25x174.625 mm

Product Details:

Place of Origin: China
Brand Name: JHB or OEM
Certification: Quality certificate
Model Number: M231649DW.610.610D

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: negotiation
Packaging Details: standard export wooden case
Delivery Time: available ,if unavailable,it will need 20-30 days
Payment Terms: T/T,L/C
Supply Ability: 1000 pcs/month
Detailed Product Description
Precision Rating: P5 P6 Seals Type: No Seal
Number Of Row: Four Row Roller: Tapered Roller




The M231649DW.610.610D four row tapered roller bearing parameter as follows:



Items

Data

Unit

Description

 M231649DW.610.610D or 802114  four row

tapered roller bearing



TQO Type

M231649DW.610.610D



FAG Bearing code

802114

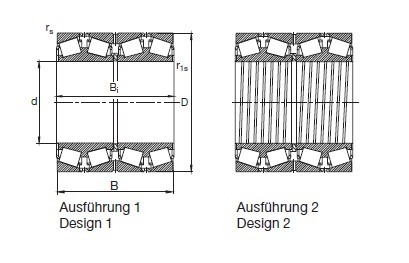

Dimension

152.4x222.25x174.625

mm

ID(inner diameter)/Bore

152.4

mm

OD(outer diameter)

222.25

mm

H:Width/Height/thickness

174.625

mm

Cr (Radial Dynamic load rating)

1180

KN

Cor (Radial Static load rating)

2120

KN

factor

0.35



Weight

22

KGS

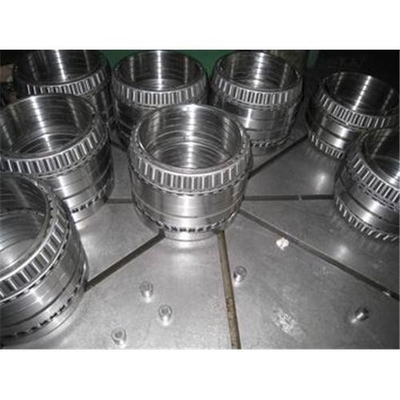

TQO Type M231649DW.610.610D four row tapered roller bearing, 152.4x222.25x174.625 mm



The M231649DW.610.610D or 802114  four row tapered roller bearing details as follows:

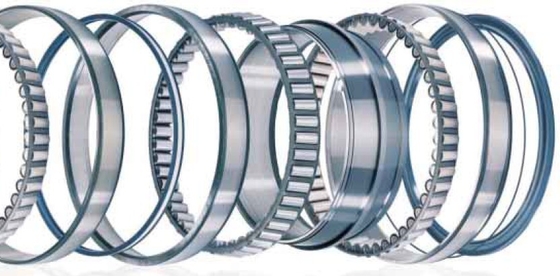

Component

 two double cones, two single cups and a double cup with a cone spacer and two cup spacers.

Spacers have slots or holes for lubrication.

Cone spacers are hardened to reduce face wear.

Numbered serially to assure correct installation sequence.

Details

 TQO bearings are directly mounted and comprised of two double inner races,

two single and one double outer race,

with an inner race spacer and two outer race spacers.

Slots in the inner race spacer permit lubricant to flow from the bearing chamber to the roll neck.

 The inner race spacers are hardened to minimize face wear.

Application

  heavy plate mills       hot strip mills     cold rolling mills       skin pass mills

 roughing mills       universal beam mills       rod, bar and wire mills

HS Code

84822000090

Material

GCr15SiMn ,G20Cr2Ni4A( carburizing steel)

Packing

First lubricated, Second circled with plastic film/Kraft paper/blue belt,

and then packaged in plywood case, last gathered in Wooden pallet

Delivery time

In stock, if not available,It will need 20-30 days

Serive and drawing

Our engineer can design the assembly drawing to you

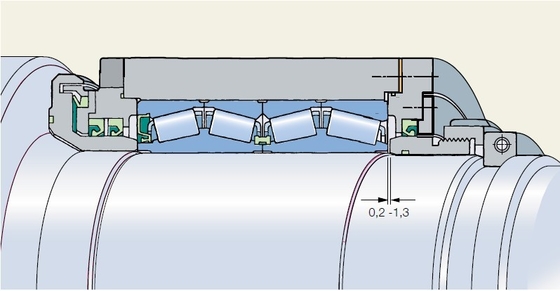

    M231649DW.610.610D or 802114    Four row tapered roller bearing are the one kind of roll neck bearing,their radial and axial loading capacity are high,can carry heavy axial loads in two direction,and their radial loading capacity is 3 times heavier than signle row tapered roller bearing, but limiting speed is lower.They can be used as axial loacating bearing in two direction because they are able to limit axial displacement in two direction within axial clearance.The radial and axial clearance also can be adjusted by changing the width of sapcer betwwen inner and outer rings.




If you want to know more, Please send us by e-mail
We will send the more details. Thanks.
