Home ProductsRolling mill four row tapered roller bearing

FAG 802119 four row tapered bearing technology paremeter and application

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

FAG 802119 four row tapered bearing technology paremeter and application

China FAG 802119 four row tapered bearing technology paremeter and application supplier
FAG 802119 four row tapered bearing technology paremeter and application supplier FAG 802119 four row tapered bearing technology paremeter and application supplier FAG 802119 four row tapered bearing technology paremeter and application supplier FAG 802119 four row tapered bearing technology paremeter and application supplier

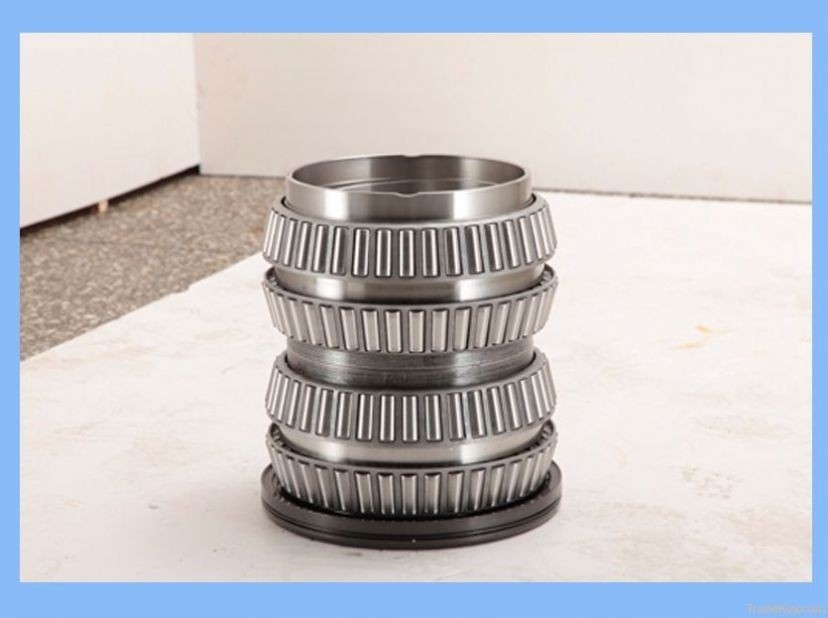

Large Image :  FAG 802119 four row tapered bearing technology paremeter and application

Product Details:

Place of Origin: China
Brand Name: JHB or OEM
Certification: Quality certificate
Model Number: 802119

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: negotiation
Packaging Details: standard export wooden case
Delivery Time: available ,if unavailable,it will need 20-30 days
Payment Terms: T/T,L/C
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Precision Rating: P5 P6 P0 Seals Type: No Seal
Number Of Row: Four Row Roller: Tapered Roller

 We/JinHang Precision Bearing Co.,Ltd focus on the roller and ball bearing develop, design,sale and serive
with more 10 years experience to do them.
The engineer had more experience to go to  the customer spot to guide the mounting and slove the customer problem.
Our bearing can replacement the SKF FAG NTN  INA  KOYO  Brand bearing. It can reduce the maintence cost, improve the
using life,shorter delivery time,after sales service and so on.
We are good at the rolling mill bearing , the customer mainly come from Metallurgy industry,
such as aluminium,steel,cooper,nickel and so on.
The 802119 application as follows:
 The four row tapered roller bearings to integrated lins,Such as :Continuous Casting, Converter Gear Box,
Mill roller, Flying shear, Pinch Pass MIll, Shears, Hoisting Machine,etc.
Case:Bearing for 650 850 950 1100  hot strip rolling mills, Bearings for 1450,1500,1550,1580 ,
1700, 1750,1780  rolling mills,Bearings for 1780 Stainless Steel Hot Rolling mills and Cold rolling mills,
Bearings for Channel Type steel Rolling Mills, Bearings for Continous Casting,
 Bearings for Flying Shear of Hot Rolling Mills,Bearings for Tilting Equipment for Converters,Bearing for
Converter Trunnion and so on.
The FAG TQO  802119   four row tapered roller bearing technology parameter as follows:





  802119  four row tapered roller bearing


TQO Type



FAG Bearing code






ID(inner diameter)/Bore



OD(outer diameter)






Cr (Radial Dynamic load rating)



Cor (Radial Static load rating)









FAG 802119 four row tapered bearing technology paremeter and application

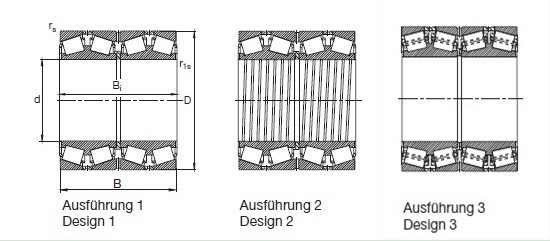

The   FAG LM263149DW.110.110D or FAG 802119  four row tapered roller bearing details as follows:

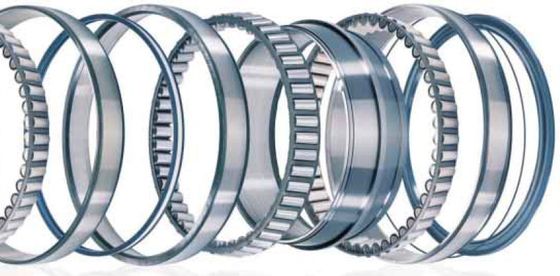

802119  bearing Component

 two double cones, two single cups and a double cup with a cone spacer

 and two cup spacers.Spacers have slots or holes for lubrication.

Cone spacers are hardened to reduce face wear.

Numbered serially to assure correct installation sequence.

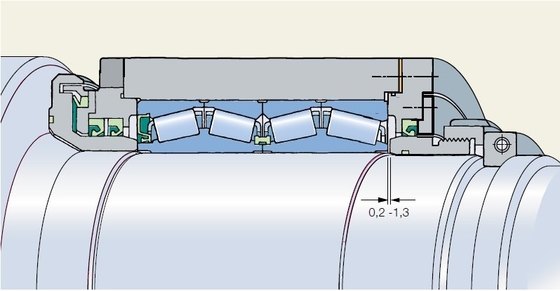

802119 Bearing Details

 TQO bearings are directly mounted and comprised of two double inner races,

two single and one double outer race,

with an inner race spacer and two outer race spacers.

Slots in the inner race spacer permit lubricant to flow from the bearing chamber to the roll neck.

 The inner race spacers are hardened to minimize face wear.


  heavy plate mills       hot strip mills     cold rolling mills       skin pass mills

 roughing mills       universal beam mills       rod, bar and wire mills

802119 bearing HS Code


Bearing 802119 Material

GCr15SiMn ,G20Cr2Ni4A( carburizing steel)


First lubricated, Second circled with plastic film/Kraft paper/blue belt,

and then packaged in plywood case, last gathered in Wooden pallet

Delivery time

In stock, if not available,It will need 20-30 days

Serive and drawing

Our engineer can design the assembly drawing to you

Meanwhile,we can make  the bearing as follows:
517254  802010  802010.H122AA  802099  504512  802009  802009.H122AA  802051  802051.H122AA
802056 802056.H122AA   514225   512630   802067  523935   802100   802018   802018.H122AA  511115
  524152 513166A  564027  802115   509411  521798  522847  513833   510375  538585  509680  514353
509693A802114  802114.H122AA  802159  802117  508776A  802123  521799A  574331  802016
802016.H122AA  802067.H122AA   802136  504415A  511861  575220  802024  802024.H122AA
518078  802045  802045.H122AA  524469  531883  525465  802062  802062M  572452
802002.A270.300  802002.A270.300.H122AA  802028  802052  802119  802022  802022.H122AA
802137.H122AA  548757  509737A  527934  506725A
EE275109DW.155.156D  HM252349DW.310.310D  LM451349DW.310.310D  LM451349DGW.310.310D
M252349DW.310.310D  EE135111DW.155.156D  EE135111DGW.155.156D  LM654644DW.610.610D
 LM654644DGW.610.610D  LM654648DW.610.610D   LM654648DGW.610.610D  M255449DW.410.410D
EE330116DW.166.167D  EE129119DW.174.175D  LM742749DW.714.714D  9974DW.9920.9920D
 M244249DW.210.210D   M244249DGW.210.210D   EE130904DW.400.402D   EE529091DW.157.158D
8576DW.8520.8520D  EE127094DW.138.139D   EE127097DW.135.136D  LM247748DW.710.710D
LM247748DGW.710.710D  EE126096DW.150.151D  M249748DW.710.710D   EE221027DW.575.576D
M224749DW.710.710D  48290DW.220.220D  67391DW.322.323D  48680DW.620.620D  M231649DW.610.610D
M231649DGW.610.610D  46791DW.720.721D   67791DW.720.721D  M238849DW.810.810D
67885DW.67820.67820D  M240648DW.611.611D  93800DW.125.127D  67986DW.920.921D
67986DGW.920.921D  EE129119DGW.174.175D  HM256849DW.810.810D  M757448DW.410.410D
M257149DW.110.110D  EE724121DW.195.196D  M257248DW.210.210D  M257248DGW.210.210D
M757449DW.410.410D   LM258648DW.610.610D  LM258648DGW.610.610D  HM259049DGW.010.010D
M260149DW.110.110D  EE138131DGW.172.173D  HM261049DW.010.010D    EE536136DW.225.226D
LM761649DW.610.610D  LM761649DGW.610.610D  HM262749DW.710.710D  M262449DW.410.410D
LM263149DW.110.110D  LM763449DW.410.410D  LM763449DGW.410.410D  M263349DGW.310.310D
HM265049DW.010.010D   HM265049DGW.010.010D  LM765149DW.110.110D  HM266449DW.410.410D
If you want to know more, Please send us by e-mail
We will send the more details. Thanks.
