Home ProductsSplit roller bearing

02B2500 , 02B2500 bearing, 02B2500 split roller bearing,

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

02B2500 , 02B2500 bearing, 02B2500 split roller bearing,

China 02B2500 , 02B2500 bearing, 02B2500 split roller bearing, supplier
02B2500 , 02B2500 bearing, 02B2500 split roller bearing, supplier 02B2500 , 02B2500 bearing, 02B2500 split roller bearing, supplier

Large Image :  02B2500 , 02B2500 bearing, 02B2500 split roller bearing,

Product Details:

Place of Origin: China
Brand Name: JHB
Certification: Quality certificate
Model Number: 02B2500

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 1-10000USD/negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: 30-40 days
Payment Terms: T/T,L/C
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Precision Rating: P4 P5 P6 Seals Type: Open
Number Of Row: Single Row

Description:Cooper Split roller bearing

Type: Split roller bearing :   02B2500
Dimension: 635X866.78X219.08 mm/Metic
ID(inner diameter or shaft diameter)/Bore:635 mm (25 in)
OD(outer diameter): 866.78 mm
Inner ring Width/Height/thickness(C):219.08 mm
Outer ring width/Height/thickness(B):117.48 mm

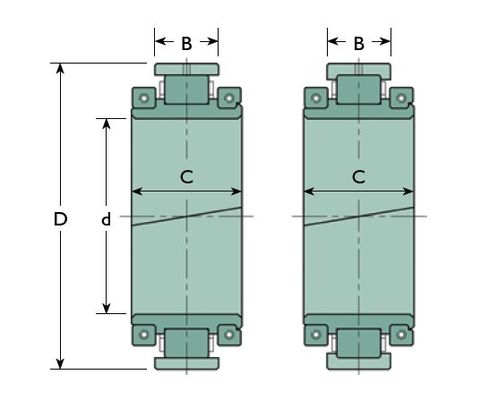

Basic Dimensions(mm)

Bearing Designations

Bearing ratings (KN)



d

D

C

  B

Cr

Cor



635

(25 in)

866.78

219.08

117.48

 02B2500

2724

5833



The Cooper Split cylindrical roller bearing    02B2500   are intended primarily for bearing arrangements which are difficult to access or for cranked shafts. It is advantageous to use them in all cases where the maintenance or replacement of non-split bearings would require considerable extra time-consuming effort and would cause long and expensive or even inadmissible machine downtime.

 If you have just landed here, this Bearing    02B2500 , You can call us or send enquiry, we would give you the prices, packing,  and more detailed information on the 02B2500  bearing .

We cooperate with DHL,TNT,FEDEX,UPS,EMS, and shipping agency etc.They guarantee to meet your needs in terms of time and money, , YES, we ship worldwide. We had a lot of bearing in our warehouse, if we have no stock, the manufacture time:10-20 days.

The Bearing   02B2500   inner ring and outer ring forging material:GCr15SiMn ,GCr15, Chrome steel
The  Inner ring and outer ring hardness: 58-62HRC
The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.
The package: standard export wooden case or carton boxes.

The Cooper Split cylindrical roller bearing   02B2500  applicantion:Bucket wheel escavators and reclaimers, Winch drums and rope shearves Screw conveyors, Bucket elevators and conveying belts, Line shafting, Continues casters, Marine propeller shafting, Crankshafts, Mixers and stirrers, Mills and crusher, Sinter plants and rotary kilns, Fans and blower, Dedusting equipment, Dirve and Line shafts.
