Food Extruder Machine UseT5AR2577 M5CT2577 25x77x134mm For Plastic Feed Industry

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

Food Extruder Machine UseT5AR2577 M5CT2577 25x77x134mm For Plastic Feed Industry

China Food Extruder Machine UseT5AR2577 M5CT2577 25x77x134mm For Plastic Feed Industry supplier
Food Extruder Machine UseT5AR2577 M5CT2577 25x77x134mm For Plastic Feed Industry supplier Food Extruder Machine UseT5AR2577 M5CT2577 25x77x134mm For Plastic Feed Industry supplier Food Extruder Machine UseT5AR2577 M5CT2577 25x77x134mm For Plastic Feed Industry supplier Food Extruder Machine UseT5AR2577 M5CT2577 25x77x134mm For Plastic Feed Industry supplier

Large Image :  Food Extruder Machine UseT5AR2577 M5CT2577 25x77x134mm For Plastic Feed Industry

Product Details:

Place of Origin: China
Brand Name: JHB
Certification: Quality certificate
Model Number: T5AR2577 M5CT2577 25x77x134mm

Payment & Shipping Terms:

Minimum Order Quantity: 2PCS
Price: 1-10000USD/negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: 10-20 days
Payment Terms: T/T,L/C, Western Union
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Precision Rating: P4 P5 P6 Seals Type: Open
Number Of Row: Five Rows Inner Dia: 25mm
Ouer Dia: 77mm Height: 134mm

 Food Extruder Machine UseT5AR2577 M5CT2577 25x77x134mm For Plastic Feed Industry

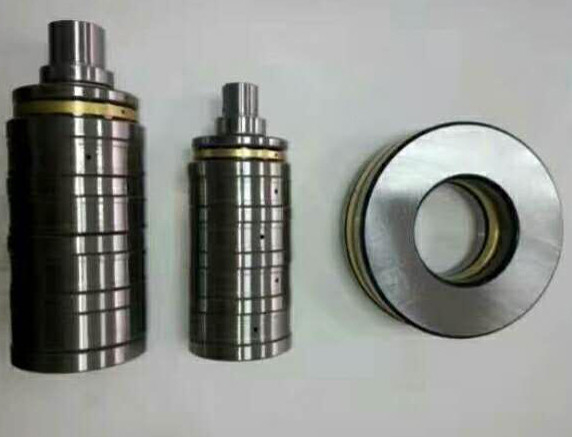

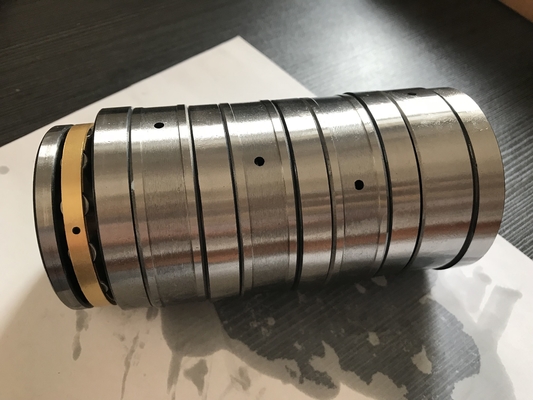

Tandem Thrust Bearings can receive heavy load in a limited space and support firmly in the direction of axis and last long with low frictional power. In addition, these bearings are moved by oil lubrication. Also these tandem thrust bearings are used principally in gear boxes for single & twin screw extruders in the rubber and plastic industries. Tandem bearings are predominantly fitted with standard axial cylindrical roller and bearing assemblies. The thrust cylindrical roller bearing T5AR2577 M5CT2577 with size25*77*134mm , the inner diameter:25 mm, the outer diameter:77mm, the total height:134mm.

                                    Food Extruder Machine UseT5AR2577 M5CT2577 25x77x134mm For Plastic Feed Industry

Tandem bearing old code Tandem bearing new code Basic size unit(mm)

Basic load rating

Unit (KN)

weight material
Inner dia Outer dia Height Cr Cor kg
T5AR2577 M5CT2577 25 77 134 403 1753 3.5 Steel chrome



For the 5 row tandem roller bearing type as following:

基本尺寸 基本额定负荷 重量 原代号 现代号
Bearings Basic load ratings Weight Old_spec Designations
d D H dyc_Cr stc_Cor
mm KN kg
23 62 131 270 896 2.054 T5AR2362 M5CT2362
24 68 119 336 1415 2.92 T5AR2468A M5CT2468A
24 68 119 336 1415 2.32 T5AR2468 M5CT2468
25 77 134 403 1753 3.48 T5AR2577 M5CT2577
28 76 135 392 1664 3.199 T5AR2876 M5CT2876
28 76 135 443 1398 4.73 T5AR2876A M5CT2876A
30 73 153 260 1188 3.103 T5AR3073 M5CT3073
30 73 153 260 1188 4.1 T5AR3073A M5CT3073A
30 73 153 289 1286 2.88 T5AR3073E M5CT3073E
30 73 153 289 1286 3.877 T5AR3073EA M5CT3073EA
32 78 137 442 1397 3.22 T5AR3278 M5CT3278
32 78 137 391 1664 4.22 T5AR3278A M5CT3278A
34 95 163 583 2495 6.43 T5AR3495 M5CT3495
36 120 260 1042 4375 14.15 T5AR36120KK M5CT36120KK
36 120 197 1042 4375 11.19 T5AR36120 M5CT36120





Food Extruder Machine UseT5AR2577 M5CT2577 25x77x134mm For Plastic Feed Industry

Food Extruder Machine UseT5AR2577 M5CT2577 25x77x134mm For Plastic Feed Industry



Food Extruders
Longitudinal section of a screw extruder of thermoplastic polymers. Plastic pellets are fed from a hopper into the barrel of the extruder, where the pellets are gradually melted by mechanical energy generated by a turning screw and by heaters arranged along the barrel. The molten polymer is forced through a die, which shapes the extrudate into products such as the examples shown.

Extruders are used to produce long continuous products such as tubing, tire treads, and wire coverings. They are also used to produce various profiles that can later be cut to length. Multiroll calenders are used to make wide sheeting.



Food Extruder Machine UseT5AR2577 M5CT2577 25x77x134mm For Plastic Feed Industry

Food Extruder Machine UseT5AR2577 M5CT2577 25x77x134mm For Plastic Feed Industry



Food Extruder Machine UseT5AR2577 M5CT2577 25x77x134mm For Plastic Feed Industry

Food Extruder Machine UseT5AR2577 M5CT2577 25x77x134mm For Plastic Feed Industry



Many types of extruders are used in the food industries and several designs are possible for a food extruder. The most commonly used extruder consists of the flighted screw(s) or worm(s) rotating within a sleeve or barrel to be termed as the screw extruder. However, the piston type extruders are possible though they are used in other type of industries. The flights on the screw push the plasticized material forward and discharge through an opening or the die. The details on the different type of extruders and their components are available (Harper, 1981; Yacu, 2012).

A variety of extruders have been developed to manufacture different types of food products. On the basis of the number of the screw, extruders can be classified as a single-screw or twin-screw extruders. The twin-screw extruder is partially developed on the experience and the knowledge derived from the understanding of single-screw extrusion cooking.

A conventional single-screw extruder usually has three sections: feed, transition, and metering zones. The extrusion screws sequentially convey the incoming feed in the feed section, and heats the feed to form a continuous plasticized mass (in transition and metering sections), while rotating in the barrel. The screw can be designed either as a single piece or as several small segments. Twin-screw systems are costlier and more complex than the single-screw extruders. However, the twin-screw extruders are preferred by food industries due to improved mixing abilities, uniform temperature distribution features, facility to control the feed residence time, and enhanced positive displacement capacity. The twin-screw extruders, on the basis of rotation, can be categorized as counter-rotating and corotating twin-screw extruders. The food industries prefer fully-intermeshing corotating twin-screw extruders because of several technological features, particularly, the better control of machine and product, and the efficient operation during extrusion cooking.
