NCF1868V full complement single row cylindrical roller bearing size:340x420x38mm

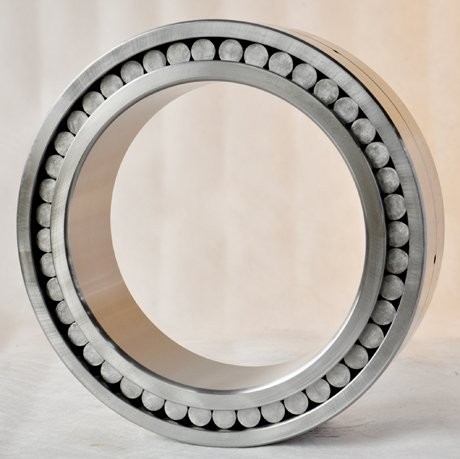

Large Image : NCF1868V full complement single row cylindrical roller bearing size:340x420x38mm

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	Quality certificate
Model Number:	NCF1868V

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	1-10000USD/negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 10 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Single Row

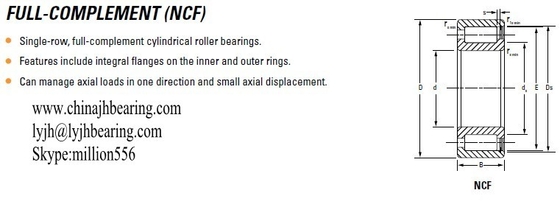

The NCF1868V full-complement (NCF) single-row bearings include integral flanges on the inner and outer rings. These bearings also can manage axial loads in one direction and permit small axial displacements.

The NCF1868V cylindrical roller bearing description as follows:

Name		Full complement single row cylindrical roller bearing NCF1868V
Bearing type		NCF1868V
Dimension		340x420x38mm
ID(inner diameter)/Bore		340 mm
OD(outer diameter)		420 mm
Width/Height/thickness		38 mm
Load Rating	Static	953 KN
	Dynamic	484 KN
Speed Ratings	Oil	430 RPM
	Grease	360 RPM
Weight		11 KGS
Delivery time		In stock, If ex-stock, the manufacture time about 15-20 days
package		standard export wooden case
Quality standard		I S O 2 4 6/ GB/T 283
Material		GCr15 GCr15SiMn chorme steel
HS Code		8482500090

JinHang Precision Bearing mainly export precision cylindrical roller bearing Timken NCF1868V Bearing and relative products, we have huge stocks for NCF1868V bearing and relative items, Also if ex-stock, the best deliver time about 15-20 days. we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in NCF1868V Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly. Thanks for your trust!
