INA SL182996 bearing parameter, hardness, load rating,application

China INA SL182996 bearing parameter, hardness, load rating,application supplier
INA SL182996 bearing parameter, hardness, load rating,application supplier INA SL182996 bearing parameter, hardness, load rating,application supplier

Large Image :  INA SL182996 bearing parameter, hardness, load rating,application

Product Details:

Place of Origin: China
Brand Name: JHB or OEM
Certification: ISO9001:2008 or quality certificate
Model Number: SL182996

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 100-1000USD
Packaging Details: Standard export wooden case
Delivery Time: in stock or ex-stock
Payment Terms: T/T L/C
Supply Ability: 1000PCS/month
Contact Now
Detailed Product Description
Precision Rating: P5 P6 P0 Seals Type: Opened
Number Of Row: Single Row

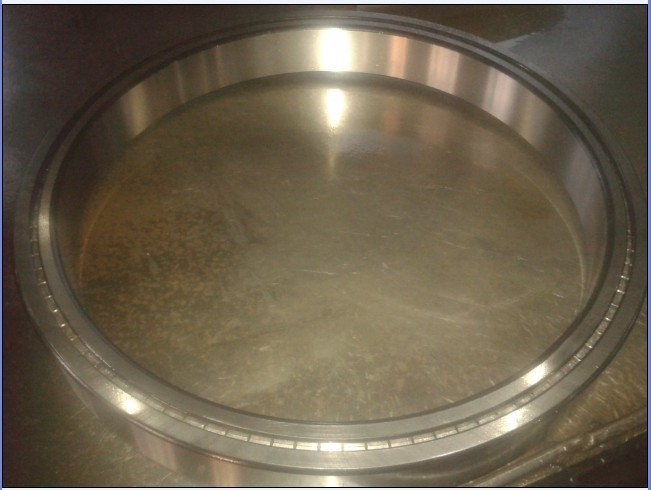

 Cylindrical roller bearings SL182996  semi-locating bearing, full complement cylindrical roller set,

  the dimension: 480x650x100 mm

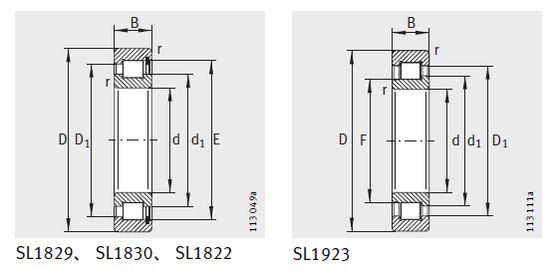

SL182996 bearing dimension details and rough drawing:

INA SL182996 bearing parameter, hardness, load rating,application

description

Full complete single row cylindrical roller bearing

Bearing type

INA/FAG  Code SL182996





Basic dimension(mm)

d

480 mm

D

650mm

B

100 mm

r min

5 mm

rl

s

7 mm

E

614.75   mm

F

---

D1

596.6 mm

d1

538 mm

B1

---

B2

B3

Basic load rating

Cr(KN)

2390 KN

Cor(KN)

4800  KN

Limiting speed

nG(rpm)

530 1/min



nB(rpm)

280 1/min

Weight



94.7   kgs

INA SL182996 bearing parameter, hardness, load rating,application



The bearing  SL182996  outer  and inner ring material and hardness:

The Bearing inner ring and outer ring forging material:GCr15SiMn ,GCr15, Chrome steel

The  Inner ring and outer ring hardness: 58-62HRC

The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.

SL182996  full complete cylindrical roller bearing application:
crane sheaves,Gear box producers,Transmission motor producers, Steel industry, Producers for construction equipment

Forest technology, Synthetic material industry, Machine tool producers, Producers of measuring devices and dividing units

Rotary table manufactures, Maritime industry, Metal forming technology, Crane sheave on the sea, Deck crane

Transmission, Planetary speed reducer, and so on.

  If you want to know   bearing  SL182996    more, Please send us by e-mail  or call us, We will send the more details. Thanks.
