Home ProductsFull complement cylindrical roller bearing

INA/FAG SL182980 bearing parameter,dimension,JinHang Precision Bearing Co.,Ltd manufacture

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

INA/FAG SL182980 bearing parameter,dimension,JinHang Precision Bearing Co.,Ltd manufacture

China INA/FAG SL182980 bearing parameter,dimension,JinHang Precision Bearing Co.,Ltd manufacture supplier
INA/FAG SL182980 bearing parameter,dimension,JinHang Precision Bearing Co.,Ltd manufacture supplier INA/FAG SL182980 bearing parameter,dimension,JinHang Precision Bearing Co.,Ltd manufacture supplier

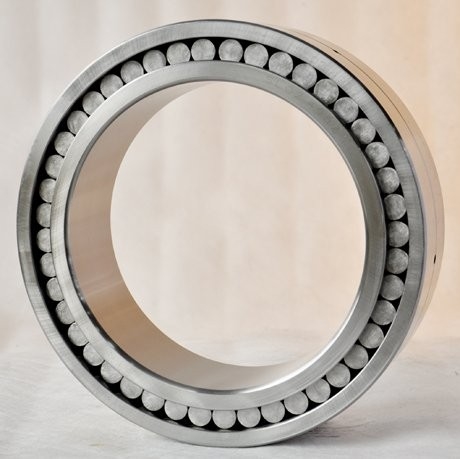

Large Image :  INA/FAG SL182980 bearing parameter,dimension,JinHang Precision Bearing Co.,Ltd manufacture

Product Details:

Place of Origin: China
Brand Name: JHB or OEM
Certification: ISO9001:2008 or quality certificate
Model Number: SL182980

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 100-1000USD
Packaging Details: Standard export wooden case
Delivery Time: in stock or ex-stock
Payment Terms: T/T L/C
Supply Ability: 1000PCS/month
Contact Now
Detailed Product Description
Precision Rating: P5 P6 P0 Seals Type: Opened
Number Of Row: Single Row

Cylindrical roller bearings SL182980    semi-locating bearing, full complement cylindrical roller set,

  the dimension: 400x540x82 mm

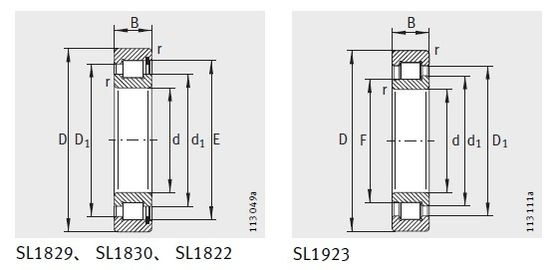

SL182980  bearing dimension details and rough drawing:

INA/FAG SL182980 bearing parameter,dimension,JinHang Precision Bearing Co.,Ltd manufacture

description

Full complete single row cylindrical roller bearing

Bearing type

INA/FAG  Code SL182980





Basic dimension(mm)

d

400 mm

D

540mm

B

82 mm

r min

4 mm

rl

s

5 mm

E

510.85 mm

F

---

D1

496.1mm

d1

450 mm

B1

---

B2

B3

Basic load rating

Cr(KN)

1710KN

Cor(KN)

3500  KN

Limiting speed

nG(rpm)

650 1/min



nB(rpm)

350 1/min

Weight



54.3   kgs

INA/FAG SL182980 bearing parameter,dimension,JinHang Precision Bearing Co.,Ltd manufacture



The bearing  SL182980  outer  and inner ring material and hardness:

The Bearing inner ring and outer ring forging material:GCr15SiMn ,GCr15, Chrome steel

The  Inner ring and outer ring hardness: 58-62HRC

The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.

SL182980  full complete cylindrical roller bearing application:
crane sheaves,Gear box producers,Transmission motor producers, Steel industry, Producers for construction equipment

Forest technology, Synthetic material industry, Machine tool producers, Producers of measuring devices and dividing units

Rotary table manufactures, Maritime industry, Metal forming technology, Crane sheave on the sea, Deck crane

Transmission, Planetary speed reducer, and so on.

  If you want to know   bearing  SL182980 more, Please send us by e-mail  or call us, We will send the more details. Thanks.
