INA/ FAG code SL181868-E bearing , dimension and load rating and application

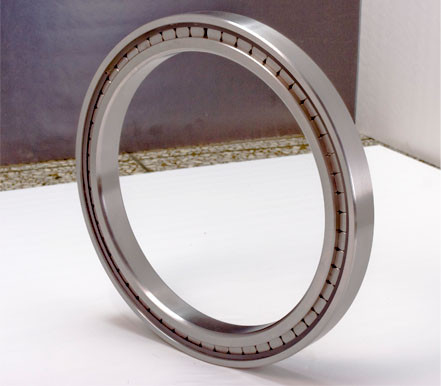

Large Image : INA/ FAG code SL181868-E bearing , dimension and load rating and application

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	ISO9001:2008 or quality certificate
Model Number:	SL181868-E

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	100-1000USD
Packaging Details:	Standard export wooden case
Delivery Time:	in stock or ex-stock
Payment Terms:	T/T L/C
Supply Ability:	1000PCS/month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	Opened
Number Of Row:	Single Row

Cylindrical roller bearings SL181868-E semi-locating bearing, full complement cylindrical roller set,

the dimension: 340x420x38 mm

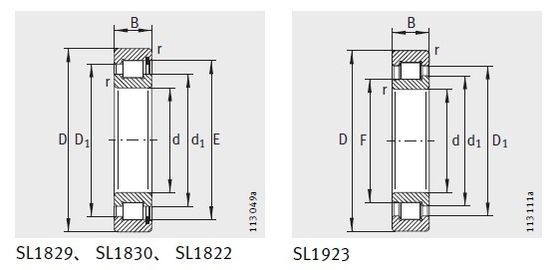

SL181868-E bearing dimension details and rough drawing:

INA/ FAG code SL181868-E bearing , dimension and load rating and application

description	Full complete single row cylindrical roller bearing
Bearing type	INA/FAG Code SL181868-E

Basic dimension(mm)	d	340 mm
	D	420mm
	B	38 mm
	r min	2.1 mm
	rl	—
	s	3 mm
	E	402.2 mm
	F	---
	D1	392.5 mm
	d1	369.5 mm
	B1	---
	B2	—
	B3	—
Basic load rating	Cr(KN)	485 KN
Basic load rating	Cor(KN)	960 KN
Limiting speed	nG(rpm)	810 1/min
	nB(rpm)	570 1/min
Weight		11 kgs

INA/ FAG code SL181868-E bearing , dimension and load rating and application

The bearing SL181868-E outer and inner ring material and hardness:

The Bearing inner ring and outer ring forging material:GCr15SiMn ,GCr15, Chrome steel

The Inner ring and outer ring hardness: 58-62HRC

The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.

SL181868-E full complete cylindrical roller bearing application:
crane sheaves,Gear box producers,Transmission motor producers, Steel industry, Producers for construction equipment

Forest technology, Synthetic material industry, Machine tool producers, Producers of measuring devices and dividing units

Rotary table manufactures, Maritime industry, Metal forming technology, Crane sheave on the sea, Deck crane

Transmission, Planetary speed reducer, and so on.

If you want to know bearing SL181868-E more, Please send us by e-mail or call us, We will send the more details. Thanks.
