XRB5013UU Crossed roller bearing 50x80x13mm,in stock,P5 grade

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

XRB5013UU Crossed roller bearing 50x80x13mm,in stock,P5 grade

China XRB5013UU Crossed roller bearing 50x80x13mm,in stock,P5 grade supplier
XRB5013UU Crossed roller bearing 50x80x13mm,in stock,P5 grade supplier XRB5013UU Crossed roller bearing 50x80x13mm,in stock,P5 grade supplier

Large Image :  XRB5013UU Crossed roller bearing 50x80x13mm,in stock,P5 grade

Product Details:

Place of Origin: China
Brand Name: JHB
Certification: Quality certificate
Model Number: XRB5013UU

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 1-10000USD/negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: 5-10 days
Payment Terms: T/T,L/C
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Precision Rating: P4 P5 P6 Seals Type: Open
Number Of Row: Single Row Inner And Outer RingMaterical: GCr15SiMn ,GCr15, Chrome Steel

 XRB5013UU Crossed roller bearing 50x80x13mm In stock

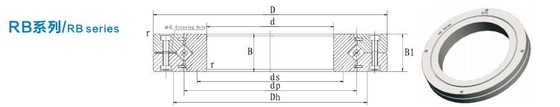

XRB5013UU Crossed roller bearing belongs to Model RB structure(separable outer ring,type for inner ring rotation),being the basic model of the cross roller ring,despite the minimum possible dimensions of the inner and outer ring,Its outer ring is separable while the inner ring is integrated with the main body, this model is used in locations where the rotation accuracy of the inner ring is required.
XRB5013UU Crossed roller bearing 50x80x13mm
The outer dia:80mm,
Inner dia:50mm
Height:13mm
UU:with seal attached on both sides
The weight:0.27kgs
The delivery time: in stock



XRB5013UU Crossed roller bearing 50x80x13mm,in stock,P5 grade



JHB bearing code Dimension(mm) Equal to THK Code Equal to IKO code Equal to NSK code
XRB5013UU 50x80x13 RB5013 CRB5013 NRXT5013



We focus on offer crossed roller bearing,YRT rotary table bearing, spindle bearing,cylindrical roller bearing ,The precision we can reach to P5 P4 P2. It can assure the machine stability to improve the high effective.
If you have any question, Please feel free to contact us.
