XR897051 crossed tapered roller bearing price/application, in stocks

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

XR897051 crossed tapered roller bearing price/application, in stocks

China XR897051  crossed tapered roller bearing price/application, in stocks supplier
XR897051  crossed tapered roller bearing price/application, in stocks supplier XR897051  crossed tapered roller bearing price/application, in stocks supplier XR897051  crossed tapered roller bearing price/application, in stocks supplier XR897051  crossed tapered roller bearing price/application, in stocks supplier

Large Image :  XR897051 crossed tapered roller bearing price/application, in stocks

Product Details:

Place of Origin: China
Brand Name: JHB
Certification: Quality certificate
Model Number: XR897051

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 1-10000USD/negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: 20-30 days
Payment Terms: T/T,L/C
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Precision Rating: P4 P5 Seals Type: Open
Number Of Row: Single Row



Description:XR AND JXR Crossed roller thrust  bearing
Type:XR897051 Crossed roller tapered /thrust bearing
The XR897051  Crossed roller tapered Bearing inner ring and outer ring forging material:GCr15SiMn ,GCr15, Chrome steel
The XR897051 Crossed roller tapered roller material : GCr15SiMn ,GCr15, Chrome steel
The XR897051 Crossed roller tapered  Inner ring and outer ring hardness: 58-62HRC
The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.
The delivery time:20-30 days
The package: standard export wooden case or carton boxes.
XR897051 Crossed roller thrust bearing has two kinds of XR and JXR. They can withstand high overturning moments.
Applications include machine tool table bearing for vertical boring and grinding machines. Other applications include various pivot and pedestal applications.
TXRDO Bearing has a double outer race and two inner races with rollers spaced by separators.

Items

Data

Unit

Description

XR889058 bearing



ID(inner diameter)/Bore

1549.4

mm

OD(outer diameter)

1828.8

mm

H:Width/Height/thickness

101.6

mm

Two-Row radial load rating

518

KN

Thrust Load rating

699

KN

Weight

500

KGS

 The application as follow:

Applications

  • Precision rotary and indexing tables for machine tools
  • Vertical and horizontal boring mills
  • Vertical grinding machines
  • Rotary surface grinding machines
  • Large gear hobbing machines
  • Gun and radar turrets
  • Large radio and optical telescopes
  • Swiveling cameras
  • Steering pivots and casters
  • Pivots where height is restricted
  • Microscope tables
  • Cane center pivots
  • Swiveling bogies
  • Welding manipulators
  • Large tanker mooring buoys
  • Rotary assembly jigs
  • Industrial robots

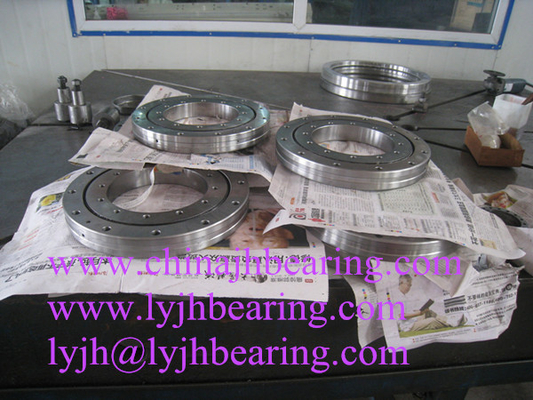

Our factory pictures:

XR897051  crossed tapered roller bearing price/application, in stocks





If  you need XR897051 Crossed roller bearing, please contact us following:
