Home Productscrossed tapered roller bearing

offer XR820060 crossed tapered roller bearing in stock,sample available,used for vertical machine tool

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

offer XR820060 crossed tapered roller bearing in stock,sample available,used for vertical machine tool

China offer XR820060 crossed tapered roller bearing in stock,sample available,used for vertical machine tool supplier
offer XR820060 crossed tapered roller bearing in stock,sample available,used for vertical machine tool supplier offer XR820060 crossed tapered roller bearing in stock,sample available,used for vertical machine tool supplier offer XR820060 crossed tapered roller bearing in stock,sample available,used for vertical machine tool supplier offer XR820060 crossed tapered roller bearing in stock,sample available,used for vertical machine tool supplier

Large Image :  offer XR820060 crossed tapered roller bearing in stock,sample available,used for vertical machine tool

Product Details:

Place of Origin: China
Brand Name: JHB
Certification: Quality certificate
Model Number: XR820060

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 1-10000USD/negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: 10-20 days
Payment Terms: T/T,L/C, Western Union
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Precision Rating: P4 P5 Seals Type: Open
Number Of Row: Single Row Delivery Time: In Stocks

offer XR820060 crossed tapered roller bearing in stock,sample available,used for vertical machine tool

Description:XR AND JXR Crossed roller thrust  bearing
Type:XR820060 Crossed roller tapered /thrust bearing
The XR820060 Crossed roller tapered Bearing inner ring and outer ring forging material:GCr15SiMn ,GCr15, Chrome steel
The XR820060  Crossed roller tapered roller material : GCr15SiMn ,GCr15, Chrome steel
The XR820060 Crossed roller tapered  Inner ring and outer ring hardness: 58-62HRC
The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.
The delivery time:20-30 days
The package: standard export wooden case or carton boxes.
XR820060  Crossed roller thrust bearing has two kinds of XR and JXR. They can withstand high overturning moments.
Applications include machine tool table bearing for vertical boring and grinding machines. Other applications include various pivot and pedestal applications.
TXRDO Bearing has a double outer race and two inner races with rollers spaced by separators.

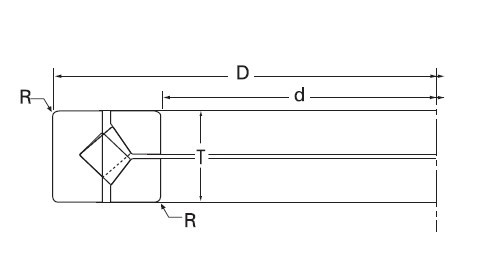

Items

Data

Unit

Description

XR820060 bearing



ID(inner diameter)/Bore

580

mm

OD(outer diameter)

760

mm

H:Width/Height/thickness

80

mm

Two-Row radial load rating

240

KN

Thrust Load rating

299

KN

Weight

100

KGS

·Application: machine tool table bearing for vertical boring and grinding machines.

·Other applications include various pivot and pedestal applications.

·The delivery time : in stock, If ex-stock,It will need 10 days.

·The package: standard export wooden case or carton boxes

·Service:we can supply the assembly drawing and maintenance and technology

·consult if you need.



offer XR820060 crossed tapered roller bearing in stock,sample available,used for vertical machine tool
