JXR652050 crossed roller thrust bearing, vertical machining centers, GCr15 material

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

JXR652050 crossed roller thrust bearing, vertical machining centers, GCr15 material

China JXR652050 crossed roller thrust bearing, vertical machining centers, GCr15 material supplier
JXR652050 crossed roller thrust bearing, vertical machining centers, GCr15 material supplier JXR652050 crossed roller thrust bearing, vertical machining centers, GCr15 material supplier

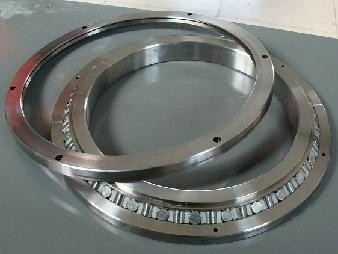

Large Image :  JXR652050 crossed roller thrust bearing, vertical machining centers, GCr15 material

Product Details:

Place of Origin: China
Brand Name: JHB
Certification: Quality certificate
Model Number: JXR652050

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 1-10000USD/negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: 10-20 days
Payment Terms: T/T,L/C
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Precision Rating: P4 P5 Seals Type: Open
Number Of Row: Single Row Material: GCr15SiMn
Heat Treatment: HRC58-62 Package: Wooden Case



Description:: XR AND JXR Crossed roller thrust  bearing
Type:JXR652050  Crossed roller tapered /thrust bearing
The JXR652050 Crossed roller tapered Bearing inner ring and outer ring forging material:GCr15SiMn ,GCr15, Chrome steel
The JXR652050  Crossed roller tapered roller material : GCr15SiMn ,GCr15, Chrome steel
The JXR652050 Crossed roller tapered  Inner ring and outer ring hardness: 58-62HRC
The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.
The delivery time:20-30 days
The package: standard export wooden case or carton boxes.
JXR652050  Crossed roller thrust bearing has two kinds of XR and JXR. They can withstand high overturning moments.
Applications include machine tool table bearing for vertical boring and grinding machines. Other applications include various pivot and pedestal applications.
TXRDO Bearing has a double outer race and two inner races with rollers spaced by separators.

Items

Data

Unit

Description

JXR652050 bearing



ID(inner diameter)/Bore

310

mm

OD(outer diameter)

425

mm

H:Width/Height/thickness

45

mm

Two-Row radial load rating

82

KN

Thrust Load rating

102

KN

Weight

20

KGS



JXR652050 crossed roller thrust bearing, vertical machining centers, GCr15 material



Description:XR AND JXR Crossed roller thrust bearing product list as follows:

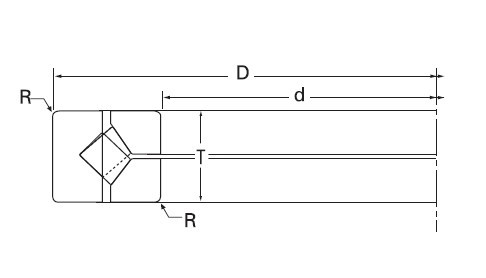

Bearing type dimension (mm) Basic Dynamic load rating weight(kgs)
d D T radial load rating Axial load rating
XR496051 203.2 279.4 31.75 41 49.2 6.5
JXR637050 300 400 37 47.2 60 13
JXR652050 310 425 45 61.6 76.5 20
XR678052 330.2 457.2 63.5 80 98.4 35
JXR699050 370 495 50 70.2 89.2 30
XR766051 457.2 609.6 63.5 106 133 51
XR820060 580 760 80 106 209 100
XR855053 685.8 914.4 79.375 180 224 150
XR882055 901.7 1117.6 82.55 225 297 185
XR889058 1028.7 1327.15 114.3 283 374 400
XR897051 1549.4 1828.8 101.6 326 489 500

What is a XR bearing?Two Rows of rings Rollers in the Space of One,



Benefits:

Compactness / Small cross section



Reduced Cost





Features:

Design configuration gives Wide Effective Spread



Line Contact on Roller and Raceway (Precision class)





Benefits:

Maximum Accuracy of Rotation



High Stability



Greater Tilting Stiffness



 Manufacturing ability:
Equipped with advanced manufacturing CNC Machine and test instruments to insure the accurate tolerance , all bearings are of uniform marking and packing with superior quality, reasonable prices and perfect services. Meanwhile we can make the module to test the mounting hole.
Quality control:
All the bearing from the forging to assembly process,It will need to inspect step.For the bearing forging we will need to test the size and hardness and surface, for the lathe process and grinding process,first it will need to check by the worker ,and then the professional inspector will checking the size and accurate,The last step the monitor will inspect the size. It can insure zero defect.
Service:
It can calculate the load curve.
Can offer assembly drawing based on the bearing working condition
Can offer pre- sale ,sale and after sale service
