XCS7014-E-T-P4S-UL Angular contact Ball Bearing 70x110x20mm,25° contact angle,ceramic ball

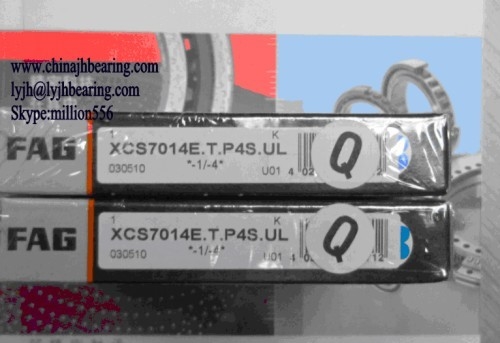

Large Image : XCS7014-E-T-P4S-UL Angular contact Ball Bearing 70x110x20mm,25° contact angle,ceramic ball

Product Details:

Place of Origin:	Germany
Brand Name:	FAG or OEM
Certification:	Quality certificate
Model Number:	XCS7014-E-T-P4S-UL

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 8 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5	Seals Type:	With Seal
Number Of Row:	Single Row

FAG bearings XCS7014-E-T-P4S-UL
d: 70mm D: 110mm B: 20mm
Type:	XCS	Cronidur bearing with small ceramic balls sealed
Dimension series:	70	Medium series
Dimension(dxDxh)		70x110x20mm
Contact angle:	C	C =15° E = 25°
Cages:	T	Plastic fiber cage, outer ring guided
Precision:	P4S	P4S FAG standard, reference to DIN620, higher than P4
Bearing arrangement:	U	single bearing, universal assemble
Preload:	L	light preload

XCS7014.E.T.P4S.UL High Precision Ball Bearing XCS7014-E-T-P4S-UL Machine tool main spindle bearing

XCS7014ETP4SUL FAG High Speed Angular contact Bearing, Ball Bearing is Super precision Angular with 25 degrees contact angle and Phonetic cage, bearing is P4 quality and made in Germany

Item: XCS7014-E-T-P4S-UL FAG Ball Bearing,FAG machine tool main spindle bearing

Type: FAG Angular contact Ball Bearing

ball: Ceramic ball

Quality: P4 Grade

Dimensions: 70mm x110mm x20mm /Metric

ID (inner diameter)/Bore:70mm

OD (outer diameter): 110mm

Width/Height/thickness:20mm

Size:70 x 110 x 20mm

Quantity: One Bearing

Dynamic load rating Cr: 400000 N

Static load rating Cor: 19600 N
