HSS71924-C-T-P4S-UL Angular contact Ball Bearing 120x165x22mm,15 ° contact angle

All Products

Slewing bearing (624)

Turntable bearing (73)

Cylindrical roller bearing (394)

Rolling mill Bearing (132)

Spherical roller bearing (144)

Tapered roller bearing (103)

Tandem Extruder Bearing (281)

Pinion gear (11)

Machine Parts (115)

crossed roller bearing (214)

YRT Rotary table bearing (39)

Main Spindle Ball Bearing (647)

Thin section ball bearing (157)

Full complement cylindrical roller bearing (172)

Split roller bearing (135)

Spherical roller thrust bearing (102)

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

HSS71924-C-T-P4S-UL Angular contact Ball Bearing 120x165x22mm,15 ° contact angle

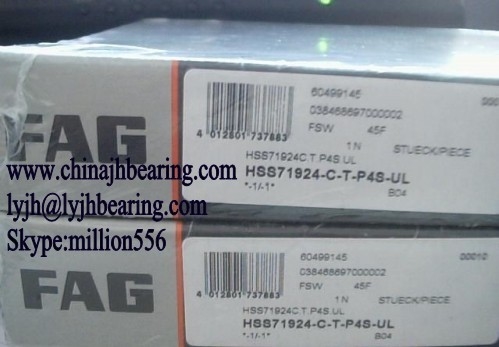

Large Image : HSS71924-C-T-P4S-UL Angular contact Ball Bearing 120x165x22mm,15 ° contact angle

Product Details:

Place of Origin:	Germany
Brand Name:	FAG or OEM
Certification:	Quality certificate
Model Number:	HSS71924-C-T-P4S-UL

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 8 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5	Seals Type:	With Seal
Number Of Row:	Single Row

FAG bearings HSS71924-C-T-P4S-UL
d: 120mm D: 165mm B: 22mm
Type:	HSS	Bearing with small balls Steel balls sealed
Dimension series:	719	Light series
Dimension(dxDxh)		120x165x22mm
Contact angle:	C	C =15° E = 25°
Cages:	T	Plastic fiber cage, outer ring guided
Precision:	P4S	P4S FAG standard, reference to DIN620, higher than P4
Bearing arrangement:	U	single bearing, universal assemble
Preload:	L	light preload

HSS71924.C.T.P4S.UL High Precision Ball Bearing HSS71924.C.T.P4S.UL Machine tool main spindle bearing

HSS71924CTP4SUL FAG High Speed Angular contact Bearing, Ball Bearing is Super precision Angular with 15 degrees contact angle and Phonetic cage, bearing is P4 quality and made in Germany

Item: HSS71924-C-T-P4S-UL FAG Ball Bearing,FAG machine tool main spindle bearing

Type: FAG Angular contact Ball Bearing

ball: steel ball

Quality: P4 Grade

Dimensions: 120mm x165mm x22mm /Metric

ID (inner diameter)/Bore: 120mm

OD (outer diameter): 165mm

Width/Height/thickness: 22mm

Size:120 x 165 x 22mm

Quantity: One Bearing

Dynamic load rating Cr: 35500 N

Static load rating Cor: 32000 N
