Home ProductsMachine tool main spindle bearing

HCS7014-E-P4S-UL angular contact ball bearing 70x110x20mm,HCS7014.E.P4S.UL spindle bearing

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

HCS7014-E-P4S-UL angular contact ball bearing 70x110x20mm,HCS7014.E.P4S.UL spindle bearing

China HCS7014-E-P4S-UL angular contact ball bearing 70x110x20mm,HCS7014.E.P4S.UL spindle bearing supplier
HCS7014-E-P4S-UL angular contact ball bearing 70x110x20mm,HCS7014.E.P4S.UL spindle bearing supplier HCS7014-E-P4S-UL angular contact ball bearing 70x110x20mm,HCS7014.E.P4S.UL spindle bearing supplier HCS7014-E-P4S-UL angular contact ball bearing 70x110x20mm,HCS7014.E.P4S.UL spindle bearing supplier

Large Image :  HCS7014-E-P4S-UL angular contact ball bearing 70x110x20mm,HCS7014.E.P4S.UL spindle bearing

Product Details:

Place of Origin: Germany
Brand Name: FAG or OEM
Certification: Quality certificate
Model Number: HCS7014-E-P4S-UL

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: in stock, if Ex-stock, It will need 5- 8 days
Payment Terms: T/T,L/C
Supply Ability: 1000 PCS/Month
Contact Now
Detailed Product Description



FAG bearings      HCS7014-E-P4S-UL

adjusted, in pairs or sets, contact angle α = 25°, restricted tolerances, ceramic ball

d: 70mm      D: 110mm        B: 20mm

Type:

HCS

Bearing with small balls Ceramic balls   Sealed

Dimension series:

70

medium series

Dimension(dxDxh)



70x110x20mm

Contact angle:

C

C =15° E = 25°

Cages:

T

Plastic fiber cage, outer ring guided

Precision:

P4S

P4S  FAG standard, reference to DIN620, higher than P4

Bearing arrangement:

U

single bearing, universal assemble

Preload:

L

light preload





HCS7014-E-P4S-UL  High Precision Ball Bearing HCS7014-E-P4S-UL Machine tool main spindle bearing


HCS7014-E-P4S-UL  FAG  High Speed Angular contact Bearing, Ball Bearing is Super precision Angular with 25 degrees contact angle and Phonetic cage, bearing is P4 quality and made in Germany

Item: HCS7014-E-P4S-UL  FAG Ball Bearing,FAG machine tool main spindle bearing

Type: FAG Angular contact Ball Bearing

ball: ceramic ball

Quality: P4 Grade

Dimensions: 70mm x110mm x20mm /Metric

ID (inner diameter)/Bore: 70mm

OD (outer diameter): 110mm

Width/Height/thickness: 20mm

Size:70 x 110 x 20 mm

Quantity: One Bearing

Dynamic load rating Cr: 23600 N

Static load rating Cor: 11400 N

Limiting Speed:

Grease Lubrication: 20000 RPM

Oil Lubrication: 0 RPM

DU :Duplex set, universal bearings

TU:Triplex set,universal bearing

QY:Quadruplex set,universal bearing

PU:Quintuplex set,universal bearing

The delivery time: in stock, within one day after getting the order

Package:standard carton or standard wooden case

  Shipping term:TNT,FEDEX,DHL UPS Express or your required.

HCS7014-E-P4S-UL angular contact ball bearing 70x110x20mm,HCS7014.E.P4S.UL spindle bearing

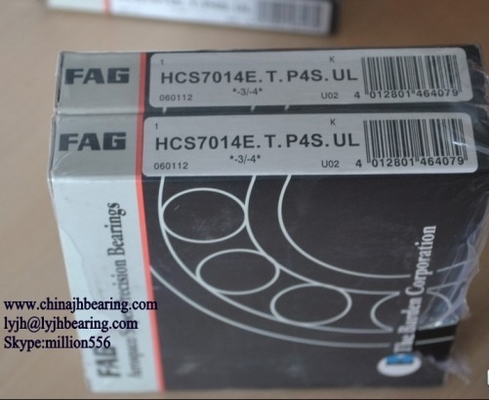

The bearing   HCS7014-E-P4S-UL  Reference pictures as following:

    HCS7014-E-P4S-UL angular contact ball bearing 70x110x20mm,HCS7014.E.P4S.UL spindle bearing

 Price: if you want to know the price   HCS7014-E-P4S-UL  bearing ,Please send us:
