HCB7016-E-T-2RSD-T-P4S-UL angular contact ball bearing 80x125x22mm,HCB7016ET2RSDTP4SUL

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

HCB7016-E-T-2RSD-T-P4S-UL angular contact ball bearing 80x125x22mm,HCB7016ET2RSDTP4SUL

China HCB7016-E-T-2RSD-T-P4S-UL angular contact ball bearing 80x125x22mm,HCB7016ET2RSDTP4SUL supplier
HCB7016-E-T-2RSD-T-P4S-UL angular contact ball bearing 80x125x22mm,HCB7016ET2RSDTP4SUL supplier HCB7016-E-T-2RSD-T-P4S-UL angular contact ball bearing 80x125x22mm,HCB7016ET2RSDTP4SUL supplier HCB7016-E-T-2RSD-T-P4S-UL angular contact ball bearing 80x125x22mm,HCB7016ET2RSDTP4SUL supplier

Large Image :  HCB7016-E-T-2RSD-T-P4S-UL angular contact ball bearing 80x125x22mm,HCB7016ET2RSDTP4SUL

Product Details:

Place of Origin: Germany
Brand Name: FAG or OEM
Certification: Quality certificate
Model Number: HCB7016-E-T-2RSD-T-P4S-UL

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: in stock, if Ex-stock, It will need 5- 8 days
Payment Terms: T/T,L/C
Supply Ability: 1000 PCS/Month
Contact Now
Detailed Product Description
Precision Rating: P4 P5 Seals Type: No Seal
Number Of Row: Single Row



FAG bearings     HCB7016-E-T-2RSD-T-P4S-UL

adjusted, in pairs or sets, contact angle α = 25°, restricted tolerances, ceramic ball

d: 80mm      D: 125mm        B: 22mm

Type:

HCB

Hybrid standard ceramic balls.

Dimension series:

70

medium series

Dimension(dxDxh)



80x125x22mm

Contact angle:

C

C =15° E = 25°

 2RSD



Sealed on both sides and greased

Cages:

T

Plastic fiber cage, outer ring guided

Precision:

P4S

P4S  FAG standard, reference to DIN620, higher than P4

Bearing arrangement:

U

single bearing, universal assemble

Preload:

L

light preload





HCB7016-E-T-2RSD-T-P4S-UL  High Precision Ball Bearing HCB7016ET2RSDTP4SUL Machine tool main spindle bearing


HCB7016.E.T.2RSD.T.P4S.UL  FAG  High Speed Angular contact Bearing, Ball Bearing is Super precision Angular with 25 degrees contact angle and Phonetic cage, bearing is P4 quality and made in Germany

Item: HCB7016-E-T-2RSD-T-P4S-UL  FAG Ball Bearing,FAG machine tool main spindle bearing

Type: FAG Angular contact Ball Bearing

ball: ceramic ball

Quality: P4 Grade

Dimensions: 80mm x125mm x22mm /Metric

ID (inner diameter)/Bore: 80mm

OD (outer diameter): 125mm

Width/Height/thickness: 22mm

Size:80 x 125 x 22 mm

Quantity: One Bearing

Dynamic load rating Cr: 41000 N

Static load rating Cor: 3900 N

Limiting Speed:

Grease Lubrication: 14000 RPM

Oil Lubrication: 22000 RPM

DU :Duplex set, universal bearings

TU:Triplex set,universal bearing

QY:Quadruplex set,universal bearing

PU:Quintuplex set,universal bearing

The delivery time: in stock, within one day after getting the order

Package:standard carton or standard wooden case

  Shipping term:TNT,FEDEX,DHL UPS Express or your required.

HCB7016-E-T-2RSD-T-P4S-UL angular contact ball bearing 80x125x22mm,HCB7016ET2RSDTP4SUL

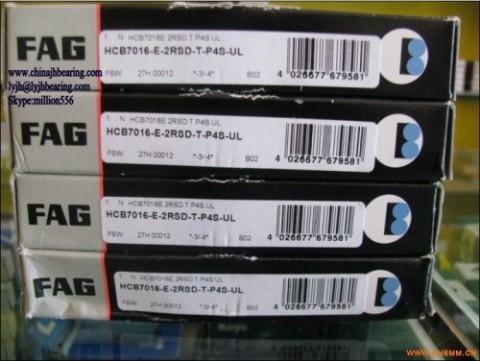

The bearing   HCB7016-E-T-2RSD-T-P4S-UL  Reference pictures as following:

         HCB7016-E-T-2RSD-T-P4S-UL angular contact ball bearing 80x125x22mm,HCB7016ET2RSDTP4SUL

 Price: if you want to know the price   HCB7016-E-T-2RSD-T-P4S-UL  bearing ,Please send us:
