HC71914-EDLR-T-P4S-UL angular contact ball bearing 70x100x16mm,With O rings 25°,stock

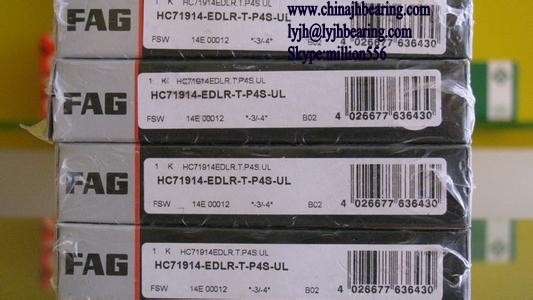

Large Image : HC71914-EDLR-T-P4S-UL angular contact ball bearing 70x100x16mm,With O rings 25°,stock

Product Details:

Place of Origin:	Germany
Brand Name:	FAG or OEM
Certification:	Quality certificate
Model Number:	HC71914-EDLR-T-P4S-UL

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 8 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5	Seals Type:	No Seal
Number Of Row:	Single Row

FAG bearings HC71914-EDLR-T-P4S-UL adjusted, in pairs or sets, contact angle α = 25°, restricted tolerances, ceramic ball
d: 70mm D: 100mm B: 16mm
Type:	HC	Bearing with small balls Ceramic balls
Dimension series:	719	Light series
Dimension(dxDxh)		70x100x16mm
Contact angle:	E	C =15° E = 25°
EDLR:		With O rings 25°
Cages:	T	Plastic fiber cage, outer ring guided
Precision:	P4S	P4S FAG standard, reference to DIN620, higher than P4
Bearing arrangement:	U	single bearing, universal assemble
Preload:	L	light preload

HC71914-EDLR-T-P4S-UL High Precision Ball Bearing HC71914-EDLR-T-P4S-UL Machine tool main spindle bearing

HC71914-EDLR-T-P4S-UL FAG High Speed Angular contact Bearing, Ball Bearing is Super precision Angular with 25 degrees contact angle and Phonetic cage, bearing is P4 quality and made in Germany

Item: HC71914.EDLR.T.P4S.UL FAG Ball Bearing,FAG machine tool main spindle bearing

Type: FAG Angular contact Ball Bearing

ball: ceramic ball

Quality: P4 Grade

Dimensions: 70mm x100mm x16mm /Metric

ID (inner diameter)/Bore: 70mm

OD (outer diameter): 100mm

Width/Height/thickness: 16mm

Size:70 x 100 x 16 mm

Quantity: One Bearing

Dynamic load rating Cr: 32500 N

Static load rating Cor: 21500 N
