HC7010-C-T-P4S-UL angular contact ball bearing 50x80x16 mm,ceramic ball,UL assembly

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

HC7010-C-T-P4S-UL angular contact ball bearing 50x80x16 mm,ceramic ball,UL assembly

China HC7010-C-T-P4S-UL angular contact ball bearing 50x80x16 mm,ceramic ball,UL assembly supplier
HC7010-C-T-P4S-UL angular contact ball bearing 50x80x16 mm,ceramic ball,UL assembly supplier HC7010-C-T-P4S-UL angular contact ball bearing 50x80x16 mm,ceramic ball,UL assembly supplier HC7010-C-T-P4S-UL angular contact ball bearing 50x80x16 mm,ceramic ball,UL assembly supplier

Large Image :  HC7010-C-T-P4S-UL angular contact ball bearing 50x80x16 mm,ceramic ball,UL assembly

Product Details:

Place of Origin: Germany
Brand Name: FAG or OEM
Certification: Quality certificate
Model Number: HC7010-C-T-P4S-UL

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: in stock, if Ex-stock, It will need 5- 8 days
Payment Terms: T/T,L/C
Supply Ability: 1000 PCS/Month
Contact Now
Detailed Product Description
Precision Rating: P4 P5 Seals Type: No Seal
Number Of Row: Single Row



FAG bearings   HC7010-C-T-P4S-UL

adjusted, in pairs or sets, contact angle α = 15°, restricted tolerances, ceramic ball

d: 50mm      D: 80mm        B: 16mm

Type:

HC

Bearing with small balls Ceramic balls

Dimension series:

70

medium series

Dimension(dxDxh)



50x80x16mm

Contact angle:

C

C =15° E = 25°

Cages:

T

Plastic fiber cage, outer ring guided

Precision:

P4S

P4S  FAG standard, reference to DIN620, higher than P4

Bearing arrangement:

U

single bearing, universal assemble

Preload:

L

light preload





HC7010.C.T.P4S.UL  High Precision Ball Bearing HC7010-C-T-P4S-UL Machine tool main spindle bearing


HC7010CTP4SUL  FAG  High Speed Angular contact Bearing, Ball Bearing is Super precision Angular with 15 degrees contact angle and Phonetic cage, bearing is P4 quality and made in Germany

Item: HC7010.C.T.P4SUL  FAG Ball Bearing,FAG machine tool main spindle bearing

Type: FAG Angular contact Ball Bearing

ball: ceramic ball

Quality: P4 Grade

Dimensions: 50mm x80mm x16mm /Metric

ID (inner diameter)/Bore: 50mm

OD (outer diameter): 80mm

Width/Height/thickness: 16mm

Size:50 x 80 x 16 mm

Quantity: One Bearing

Dynamic load rating Cr: 12800 N

Static load rating Cor: 9200 N

Limiting Speed:

Grease Lubrication: 24000 RPM

Oil Lubrication: 38000 RPM

The delivery time: in stock, within one day after getting the order

Package:standard carton or standard wooden case

  Shipping term:TNT,FEDEX,DHL UPS Express or your required.

HC7010-C-T-P4S-UL angular contact ball bearing 50x80x16 mm,ceramic ball,UL assembly

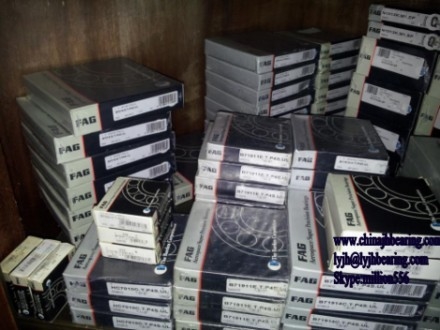

The bearing  HC7010-C-T-P4S-UL  Reference pictures as following:

      HC7010-C-T-P4S-UL angular contact ball bearing 50x80x16 mm,ceramic ball,UL assembly

 Price: if you want to know the price  HC7010-C-T-P4S-UL  bearing ,Please send us:
