B71914-C-T-P4S-UL main spindle bearing 70x100x16 mm,P4 Grade,in pairs or sets

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

B71914-C-T-P4S-UL main spindle bearing 70x100x16 mm,P4 Grade,in pairs or sets

China B71914-C-T-P4S-UL main spindle bearing 70x100x16 mm,P4 Grade,in pairs or sets supplier
B71914-C-T-P4S-UL main spindle bearing 70x100x16 mm,P4 Grade,in pairs or sets supplier B71914-C-T-P4S-UL main spindle bearing 70x100x16 mm,P4 Grade,in pairs or sets supplier B71914-C-T-P4S-UL main spindle bearing 70x100x16 mm,P4 Grade,in pairs or sets supplier

Large Image :  B71914-C-T-P4S-UL main spindle bearing 70x100x16 mm,P4 Grade,in pairs or sets

Product Details:

Place of Origin: Germany
Brand Name: FAG or OEM
Certification: Quality certificate
Model Number: B71914-C-T-P4S-UL

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Carton or standard export wooden case
Delivery Time: in stock, if Ex-stock, It will need 5- 8 days
Payment Terms: T/T,L/C
Supply Ability: 1000 PCS/Month
Contact Now
Detailed Product Description
Precision Rating: P4 P5 Seals Type: No Seal
Number Of Row: Single Row



FAG bearings   B71914-C-T-P4S-UL

adjusted, in pairs or sets, contact angle α = 15°, restricted tolerances

d: 70mm      D: 100mm        B: 16mm

Type:

B

Standard Steel balls

Dimension series:

719

Light series

Dimension(dxDxh)



70x100x16mm

Contact angle:

C

C =15° E = 25°

Cages:

T

Plastic fiber cage, outer ring guided

Precision:

P4S

P4S  FAG standard, reference to DIN620, higher than P4

Bearing arrangement:

U

single bearing, universal assemble

Preload:

L

light preload



B71914-C-T-P4S-UL High Precision Ball Bearing B71914.C.T.P4S.UL Machine tool main spindle bearing
B71914.C.T.P4S.UL  FAG High Speed Angular contact Ball Bearing
15 degrees Contact Angle
P4 Grade
70mm x100mm x 16mm
Made in Germany

B71914.C.T.P4S.UL  FAG  High Speed Angular contact Bearing, Ball Bearing is Super precision Angular with 25 degrees contact angle and Phenolic cage, bearing is P4 quality and made in Germany

Item: B71914.C.T.P4S.UL  FAG Ball Bearing,FAG machine tool main spindle bearing

Type: FAG Angular contact Ball Bearing

ball: steel

Quality: P4 Grade

Dimensions: 70mm x100mm x 16mm /Metric

ID (inner diameter)/Bore: 70mm

OD (outer diameter): 100mm

Width/Height/thickness: 16mm

Size:70 x 100 x 16 mm

Quantity: One Bearing

Dynamic load rating Cr: 33500 N

Static load rating Cor: 32500 N

Limiting Speed:

Grease Lubrication: 14000 RPM

Oil Lubrication: 20000 RPM

The delivery time: in stock, within one day after getting the order

Package:standard carton or standard wooden case

  Shipping term:TNT,FEDEX,DHL UPS Express or your required.

B71914-C-T-P4S-UL main spindle bearing 70x100x16 mm,P4 Grade,in pairs or sets

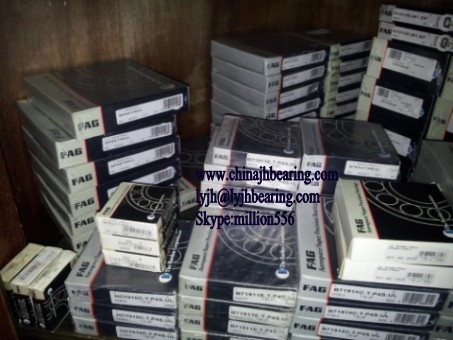

The bearing  B71914-C-T-P4S-UL  Reference pictures as following:

   B71914-C-T-P4S-UL main spindle bearing 70x100x16 mm,P4 Grade,in pairs or sets

 Price: if you want to know the price  B71914-C-T-P4S-UL  bearing ,Please send us:
