B7224-C-T-P4S-UL main spindle bearing 120x215x40 mm,P4 Grade,B7224.C.T.P4S.UL ball bearing

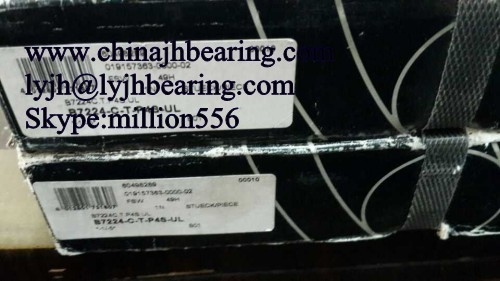

Large Image : B7224-C-T-P4S-UL main spindle bearing 120x215x40 mm,P4 Grade,B7224.C.T.P4S.UL ball bearing

Product Details:

Place of Origin:	Germany
Brand Name:	FAG or OEM
Certification:	Quality certificate
Model Number:	B7224-C-T-P4S-UL

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 8 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5	Seals Type:	No Seal
Number Of Row:	Single Row

B7224-C-T-P4S-UL High Precision Ball Bearing B7224.C.T.P4S.UL Machine tool main spindle bearing

B7224.C.T.P4S.UL FAG High Speed Angular contact Ball Bearing
15 degrees Contact Angle
P4 Grade
120mm x215mm x 40mm
Made in Germany

B7224CTP4SUL FAG High Speed Angular contact Bearing, Ball Bearing is Super precision Angular with 15 degrees contact angle and Phenolic cage, bearing is P4 quality and made in Germany

Item: B7224.C.T.P4S.UL FAG Ball Bearing,FAG machine tool main spindle bearing

Type: FAG Angular contact Ball Bearing

ball: steel

Quality: P4 Grade

Dimensions: 120mm x215mm x 40mm /Metric

ID (inner diameter)/Bore: 120mm

OD (outer diameter): 215mm

Width/Height/thickness: 40mm

Size:120 x 215 x 40 mm

Quantity: One Bearing

Dynamic load rating Cr: 205000 N

Static load rating Cor: 138000 N
